Band saw Bernardo HBS400N

1,495.83 €

Including €2.50 for ecotax

Reference: BHBS400N-230V

The Bernardo HBS 400 N band saw is the ideal machine for ambitious DIY enthusiasts.

Quantity
Soon in stock !

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The Bernardo HBS400N band saw is equipped with 2 speeds as standard.

This machine also allows you to quickly change the saw blade using the quick release lever.

General description of the Bernado HBS400N band saw:

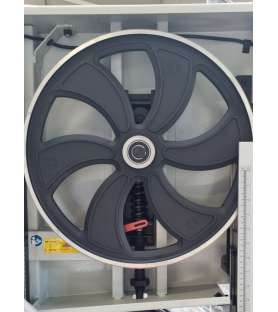

  • Dynamically balanced wheels ensure smooth operation
  • The cutting speed can be adjusted to the respective workpiece using a V-belt
  • The desired cutting height is set with a handwheel and can be read on the scale in mm
  • Worktable with floor space and T-slot for miter gauge
  • The saw blade is easy to change using the quick release lever on the back
  • Precisely guided longitudinal stop in aluminum, removable in all positions
  • Front viewing window makes it easy to read belt tension
  • Large saw table in gray cast iron, swiveling from -5 ° to + 45 °

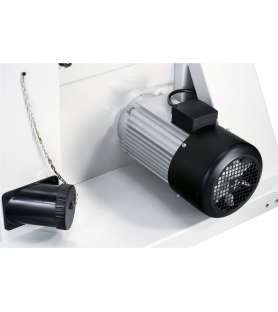

  • Powerful drive motor also allows processing of larger blocks and beams

Technical characteristics of the Bernardo HBS400N band saw:

  • Cutting width: 410 mm
  • Cutting height: 260 millimeters
  • Saw blade dimension: 3345 x 25 x 0.6 at 3 tpi
  • Saw blade widths: 9.5 to 37 mm
  • Cutting speed: 420/840 m / min
  • Table dimensions: 450 x 560 millimeters
  • Table height: 890 millimeters
  • Tilt of the saw table: -5 to + 45 °
  • Suction connection Ø: 2x 100 mm
  • Motor output power S1 100%: 2.2 kW (3.0 PS)
  • Power consumption of the motor S6 40%: 3.0 kW (4.0 PS)
  • voltage: 230 V
  • Machine dimensions (W x D x H): 875 x 740 x 1740 mm
  • Weight approx. : 132 kilograms

The Bernardo HBS400N band saw is delivered with:

  • Band saw blade
  • Slitting guide with magnifying glass
  • Miter guide
  • Aluminum flywheels
  • Guide of the ball band saw blade
  • Motor incl. brake
  • Pusher
  • Tools
