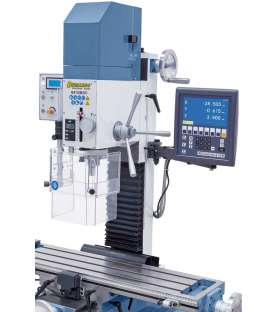

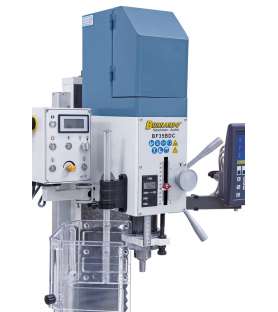

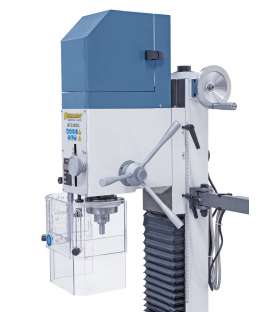

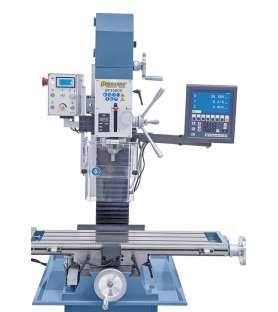

General description of the Bernardo BF35BDC metal drilling machine:

• Variable speed adjustment, the speed can be continuously adjusted to the workpiece
• Versatile application options, eg. Groove milling, face milling, reaming ...
• Digital display of drilling speed and depth included
• With clockwise and anti-clockwise rotation as standard, ideal for threading

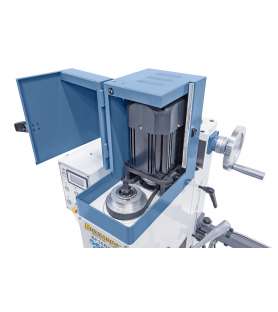

• DC motor for optimum torque in the lower speed range
• Dovetail guide for x, y and z axes, adjustable via wedge bands
• High concentricity (≤0.015 mm) of the sleeve thanks to precision bearings

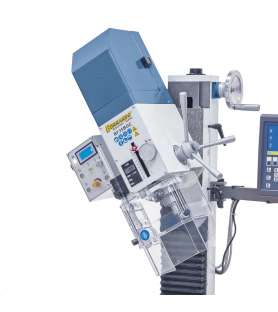

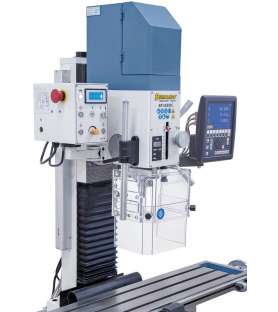

• The milling head swivels on both sides for corner drilling, chamfer milling, etc.
• Large cross table with T-slots, precision machined surface

Technical characteristics of the Bernardo BF35BDC metal drilling machine:

• Drilling performance in steel: 35 millimeters
• Face milling cutter max. : 75 mm
• End mill max. : 25 millimeters
• Max cutting thread : L 20
• Overhang: 190 mm
• Spindle / table distance min./max. : 90 to 440 mm
• Pen stroke: 90 millimeters
• Spindle speed, continuously variable: 100 to 1500/200 to 3000 rpm
• Spindle support: MK 3
• Table size: 840 x 210 mm
• Displacement (x / y): 535/225 mm
• Swivel milling head: -90 ° to + 90 °
• Height-adjustable milling head: 350 millimeters
• T-slot size: 14 millimeters
• Motor output power S1 100%: 1.5 KW / 230 V
• Motor input power S6 40%: 2.2 kW / 230 V.
• Machine dimensions (W x D x H) *: 1180 x 710 x 1220 mm
• Weight approx. : 210 kg
• * without base

The Bernardo BF35BDC metal drilling machine is delivered with:

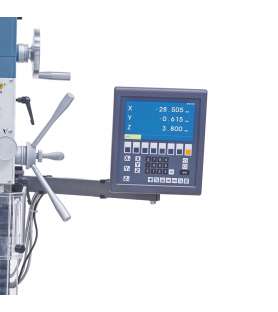

• 3-axis digital display ES-12 V with LCD display

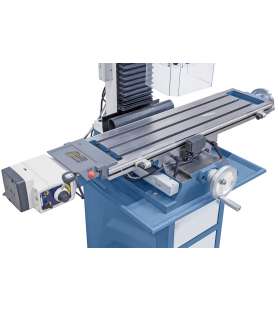

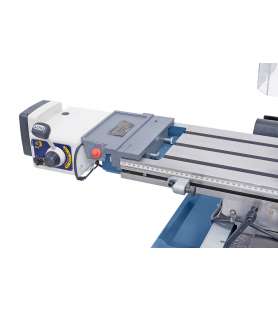

• Power supply x axis AL 450 D
• Key chuck 3-16 mm / B 16
• Mandrel holder MT 3 / B 16
• M 12 clamping spindle

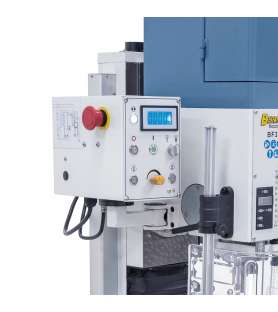

• Digital speed display
• Digital feather stroke display
• EMC filter according to CE standard
• Height-adjustable protective cover
• Thread trimming device
• Operating tool
