General description of the Universal milling machine Holzmann BF700 :

• With 3-axis position indicator as standard

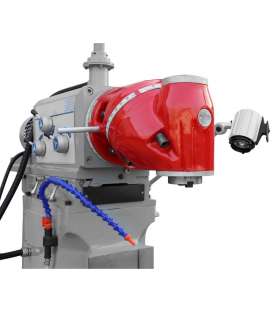

• Universal milling head adjustable in all angular positions
• Swivel control panel with digital position display for X / Y / Z axes
• Heavy-duty, vibration-absorbing gray cast iron machine frame
• Gear in oil bath with ground and hardened toothed wheels
• automatic feed of the X / Y axis table as standard

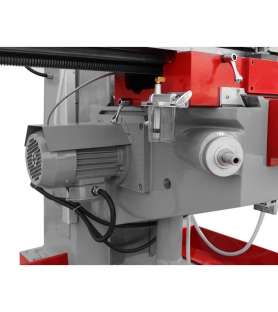

• Position the motor for the Z axis as standard
• Strong and precise cross table with 5 T-slots (14 mm)
• Cooling device and halogen lamp as standard

Technical characteristics of the Universal milling machine Holzmann BF700 :

• Motor power S1: 2200
• Voltage: 400V
• Feeding speed: 0.018-0.48 (8 steps)
• Projection: 100-480 mm
• Table dimensions: 1270x260 mm
• Payload in: 250 kg
• Milling spindle support: ISO40
• Milling spindle speed: 40-1600 min-1
• max spindle table distance: 60-500 mm
• X axis travel: 600 mm
• Y axis stroke: 270 mm
• Z axis travel: 380 mm
• max milling width : 125 mm
• max milling diameter: 25 mm
• Pivot of the milling spindle: 360 °
• Net weight: 1350 kg
• Gross weight: 1500 kg

The Universal milling machine Holzmann BF700 is delivered with:

• Milling chucks
• Pliers set
• Cooling device
• Halogen lamp
• Milling head support (ISO 40 / Ø 32)
• Various tools
