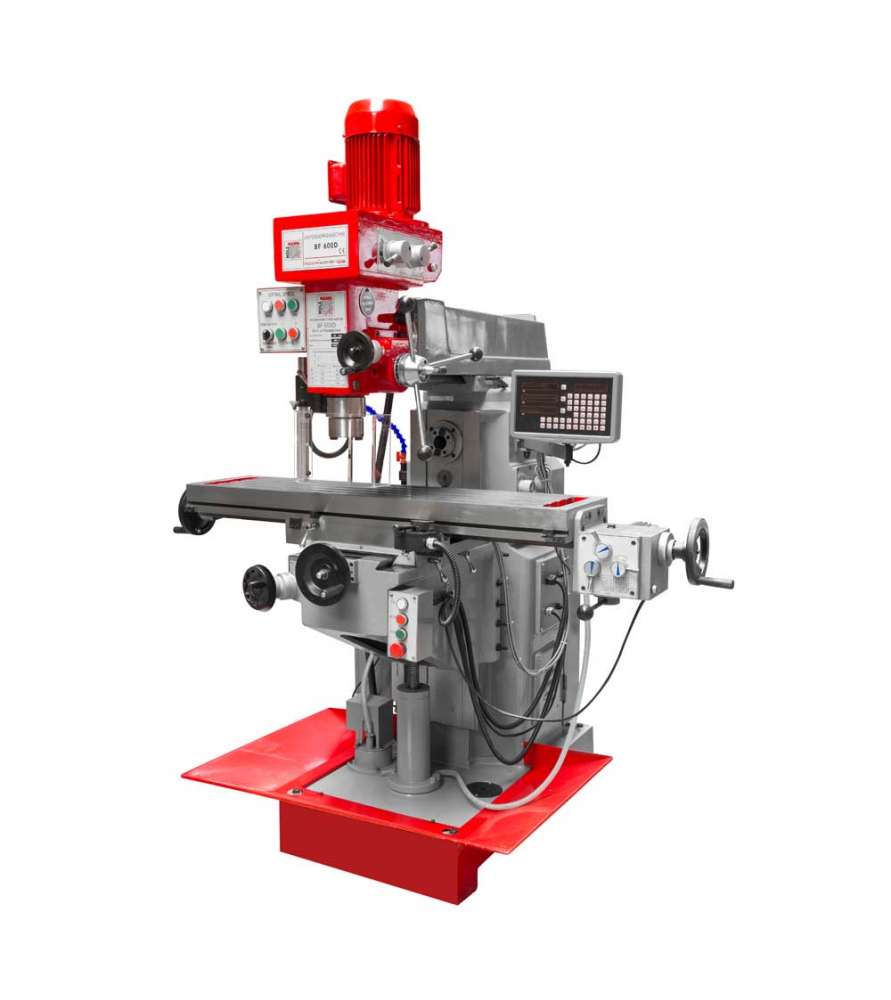

Universal milling machine with 3-axis digital display Holzmann BF600D
  • Universal milling machine with 3-axis digital display Holzmann BF600D
  • Universal milling machine with 3-axis digital display Holzmann BF600D

Universal milling machine with 3-axis digital display Holzmann BF600D

9,495.00 € Tax included

Including €2.80 for ecotax

Reference: HBF600D

Holzmann BF600D universal milling machine with robust and precise 3-axis digital display in cast iron!

Quantity
Not available

General description of the Holzmann BF600D universal milling machine:

  • 3-axis DRO digital reader, included in delivery.
  • Automatic movement of the X axis.
  • Robust cast iron machine construction ensuring rigidity and precision.
  • Gear driven horizontal and vertical axis.
  • Easy and quick adjustment between vertical and horizontal operation.
  • Hardened and polished steel gears, oil bath lubricated.
  • Vertical spindle with powerful stepper motor.
  • Cooling system and halogen lamp included.
  • CW and CCW rotation, ISO 40 spindle attachment.
  • All steering slides are hardened dovetail.
  • Robust and massive table with (14mm T-slots).

Technical characteristics of the Holzmann BF600D universal milling machine:

  • Horizontal motor (400V): 4.8CV (S6)
  • Vertical motor (400V): 1.9 / 3.2CV (S6)
  • Horizontal speed: 60-1355rpm (12x)
  • Vertical speed: 115-1750rpm (9x)
  • Cone: Iso40
  • Gooseneck: 170-750 mm
  • Height: 2200 mm
  • Drilling capacity (max width X depth): 50x120 mm
  • Drilling capacity (max): 25 mm
  • Face milling capacity (max): 100 mm
  • Feed speed: 22/30/55/75/124/313/430 m / min
  • Net weight: 1.180 kg
  • Gross weight: 1.225 kg

The Holzmann BF600D universal milling machine is delivered with:

  • DRO digital reader
  • Self-tightening chuck 3-16mm / B16
  • 8 pliers holder (4,5,6,8,10,12,14,16mm)
  • ISO40-MK3 reducer
  • ISO40-MK2 reducer
  • ISO40-B18 reducer
  • 2 M16 rods
  • Horizontal milling shaft 22 u. 27mm
  • Vises I160
  • Cooling system
  • Halogen lamp
