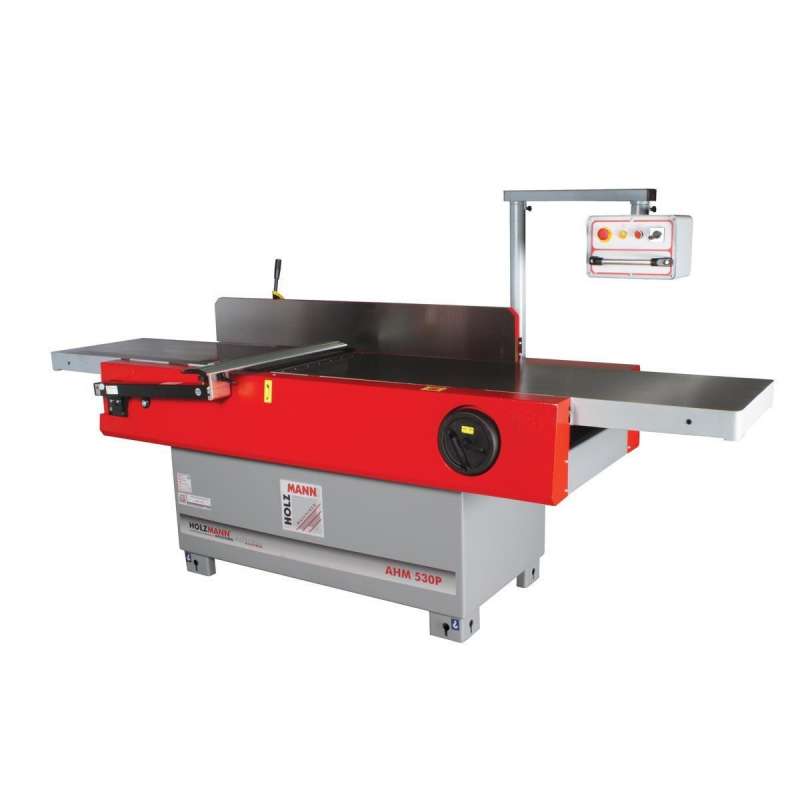

Advantages of the Holzmann AHM530P planer :

• Large rectified cast iron tables.
• Upper control panel.
• Large handwheel to adjust the height of the entrance table.
• Rapid rise and fall of the infeed table.
• Cast iron planer guide, 1500 x 155 mm, tiltable 45 ° to 90 °.

Technical characteristics of the Holzmann AHM530P planer :

• Motor power S1 (100%): 5500 W.
• Voltage - Frequency: 400 V - 50 Hz.
• Shaft diameter: 125 mm.
• Number of irons 4.
• Dimensions of the irons: 530 x 35 x 3 mm.
• Shaft rotation speed: 4700 rpm.
• Max Depth of Cut 8 mm.
• Max. Planing width : 530 mm.
• Total length of the tables: 2900 mm.
• Length of the infeed table: 1500 mm.
• Working height: 890 mm.
• Cast iron dressing guide: 1500 x 155 mm.
• Tilt of the dressing guide: 90 ° to 45 °.
• Diameter of the suction outlet: 160 mm.
• Packaging: 1240 x 3070 x 1200 mm.
• Net weight: 820 kg.

Delivered with:

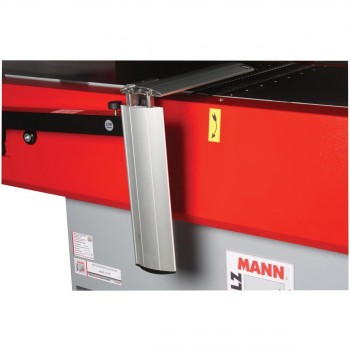

the irons, the control box, the shaft protector and the dressing guide.

IMPORTANT FOR THE DELIVERY AND START-UP OF XL MACHINES!

XL machines are only shipped by 38 ton truck. The place of delivery must imperatively be planned so that this type of truck can approach and maneuver easily. If access is only possible by 19 tonne truck (minimum), we must first inform us so that a solution can be found. If this results in additional shipping costs, they must be paid before shipping. Start-up: The prices do not include the assembly or the electrical installation which must be done by a professional in order to avoid any damage to the motors and electrical circuits of the machine that the warranty cannot cover.
