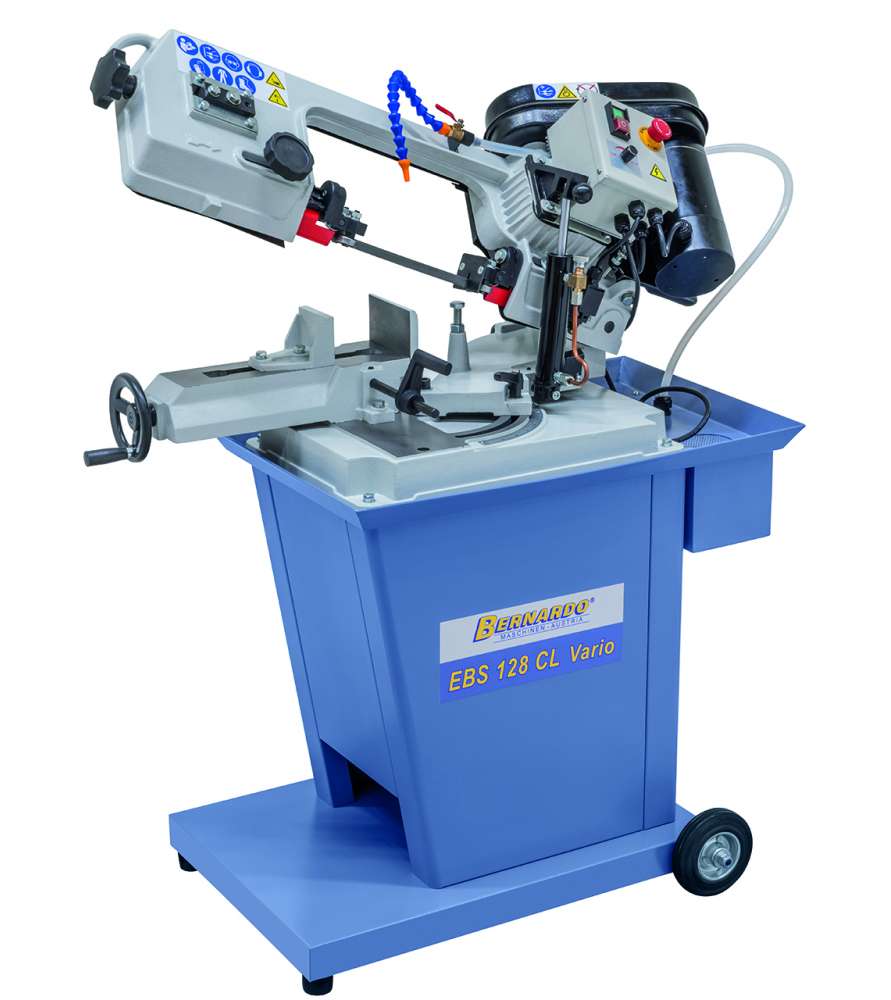

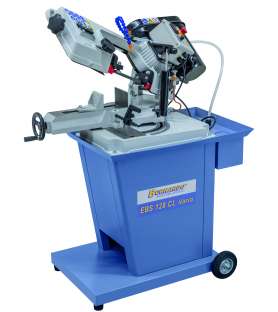

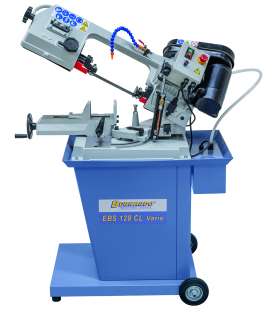

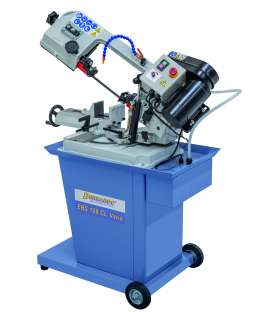

Advantages of the Bernardo EBS 128 CL Vario double mitre metal band saw :

• Ideal for cutting profiles, tubes, solid iron materials and non-iron materials
• For mitre cutting the saw frame tilts up to 60°

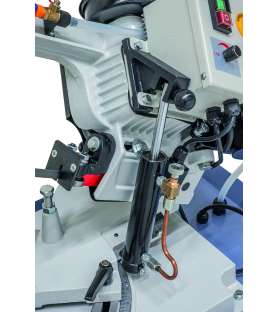

• Stepless lowering of saw frame by hydraulic cylinder
• Torsion-free, strong cast iron saw frame
• Robust construction, thereby smooth and vibration-free running
• Automatic shut-down at cutting end

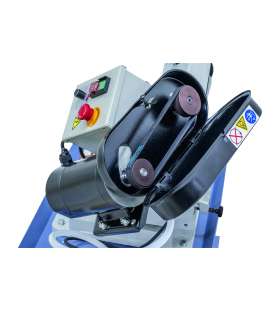

• Stepless cutting speed for optimal adjustment to the workpiece

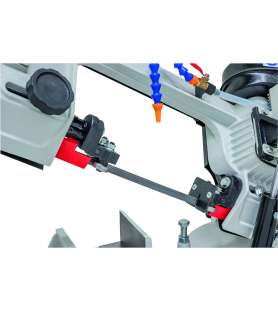

• Bandsaw blade guiding features ball bearings with quick adjustment to the workpiece, guarantees optimal cutting results

The Bernardo EBS 128 CL Vario double mitre metal band saw is supplied with :

• Bandsaw blade
• Coolant device

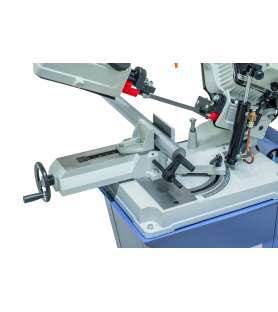

• Quick clamping vice
• Material fence
• Automatic shut-down
• Mobile machine base
• Hydraulic cylinder

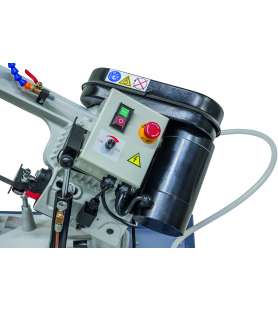

• Separate emergency stop button according CE

Technical specifications of the Bernardo EBS 128 CL Vario double-mitre metal band saw :

• Cutting capacity round 90° : 125 mm
• Cutting capacity flat 90° : 130 x 150 mm
• Cutting capacity round 45° : 85 mm
• Cutting capacity flat 45° : 85 x 145 mm
• Cutting capacity round 60° : 35 mm
• Cutting capacity flat 60° : 35 x 70 mm
• Working height : 750 mm
• Bandsaw blade dimension : 1638 x 13 x 0,65 mm
• Cutting speed, stepless : 22 - 56 m/min
• Motor power output S1 100% : 0,75 kW
• Motor power input S6 40% : 1,1 kW
• Voltage : 230 V
• Machine dimension (L x D x H) : 970 x 540 x 1100 mm
• Weight approx. : 78 kg
