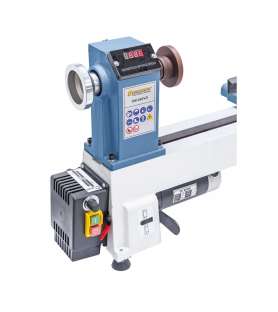

General description of the Bernardo DM480VD wood lathe :

• Fixing of the mobile headstock on the bed by quick-release lever
• Large speed range (2 levels) from 300 to 3700 rpm

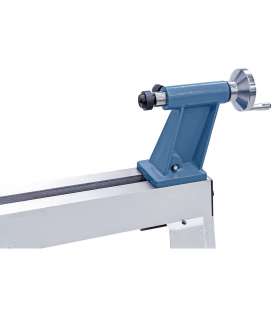

• Bored tailstock sleeve for the passage of long parts
• Machine frame, headstock and tailstock made of very stable gray cast iron for vibration-free working
• Excellent concentricity ensured by a robust precision spindle
• Bed extension available as an option to extend the center distance to 1020 mm
• Easy fixing of the support by quick-release lever
• Easy speed adjustment with digital display

Standard equipment of the Bernardo DM480VD wood lathe :

• 2 piece adjustable support 150 / 300 mm
• Mounting flange 80 mm
• 4 claw trainer
• rotating tailstock
• Speed ​​variator
• LED speed display
• Service tools

Technical characteristics of the Bernardo DM480VD wood lathe :

• Between centers: 460 mm
• Between centers with extension*: 1020 mm
• Turning diameter:
•            - in guidance: 310 mm
•            - on stand: 240 mm
• Spindle speeds: 300 - 3700 rpm, with variator
• Gearbox: L: 300 - 1200 1/min, H: 1000 - 3700 1/min
• Spindle thread: M 33 x 3.5 mm
• Tailstock taper: CM 2
• Tailstock stroke: 55 mm
• Continuous power S1 100%: 0.75 kW (1.0 hp)
• Power S6 40%: 1.1 kW (1.5 hp)
• Voltage: 230V
• Machine dimensions (W x D x H): 950 x 300 x 410 mm
• Weight (approx.): 38 kg
• * optional
