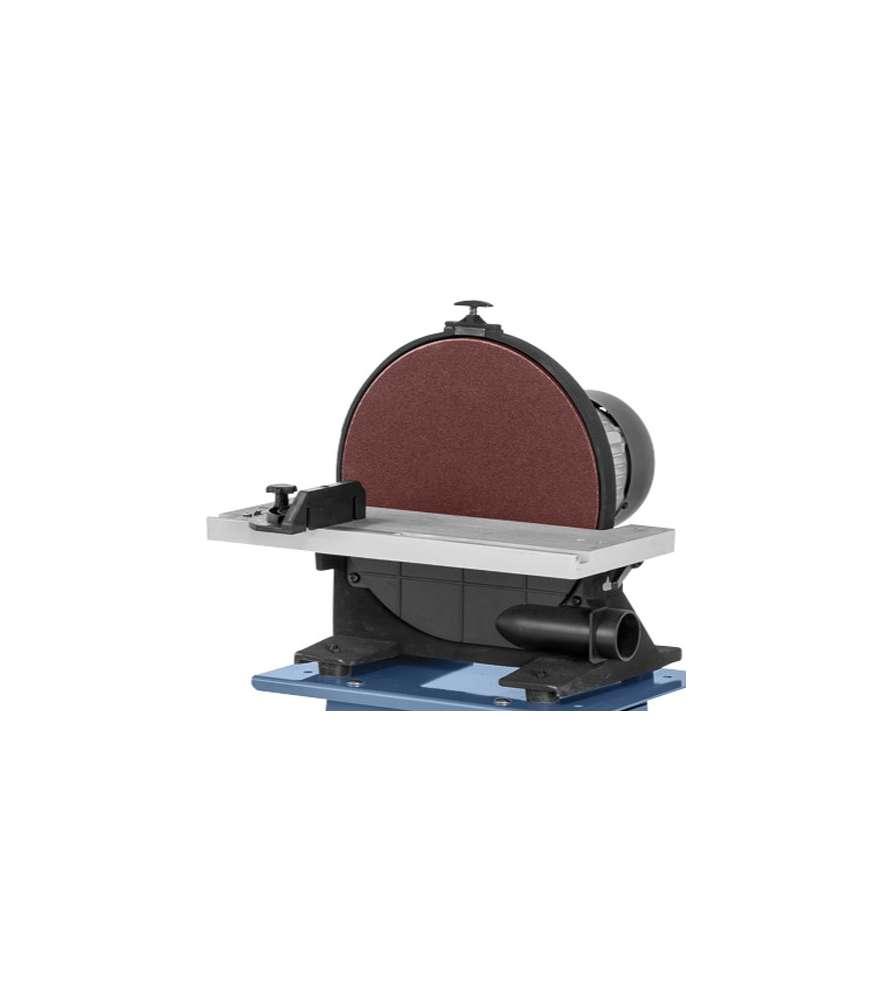

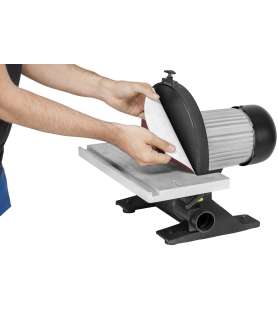

General description of the disc sanding machine Bernardo TS300 :

• Tiltable table (0° to +45°) for different machining tasks
• Universal useable for metal, non-ferrous metals and wood
• Stable machine body with rubber lining
• Balanced sanding disc ensures vibration-free run
• Grinding table is positioned below the middle, to utilize the entire sanding disc
• Powerful motor guarantees best results, even at longer operation
• Complete with integrated brake to stop the sanding disc

Technical specifications of the Bernardo TS300 disc sanding machine :

• Sanding disc : 300 mm
• Table size : 435 x 150 mm
• Table tiltable : 0° to +45°
• Speed : 1450 rpm
• Dust extraction outlet : 50 mm
• Motor power output S1 100% : 0,90 kW
• Motor power input S6 40% : 1,25 kW
• Voltage : 230 V
• Width : 450 mm
• Depth : 450 mm
• Height* : 400 mm
• Weight approx. : 29 kg
• * without stand

The Bernardo TS300 disc sander comes with :

• Lockable angle fence
• Sanding disc grit 100
• Disc brake
• Velcro fastener
• Motor protective switch
