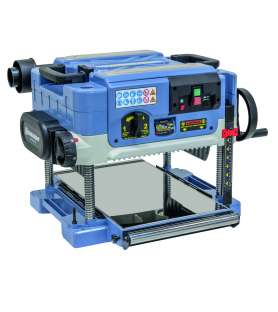

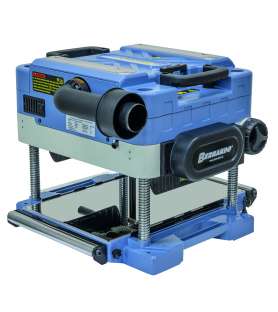

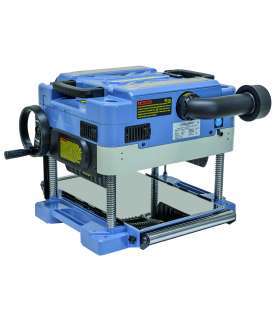

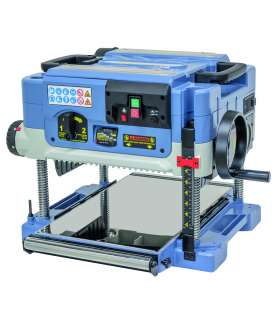

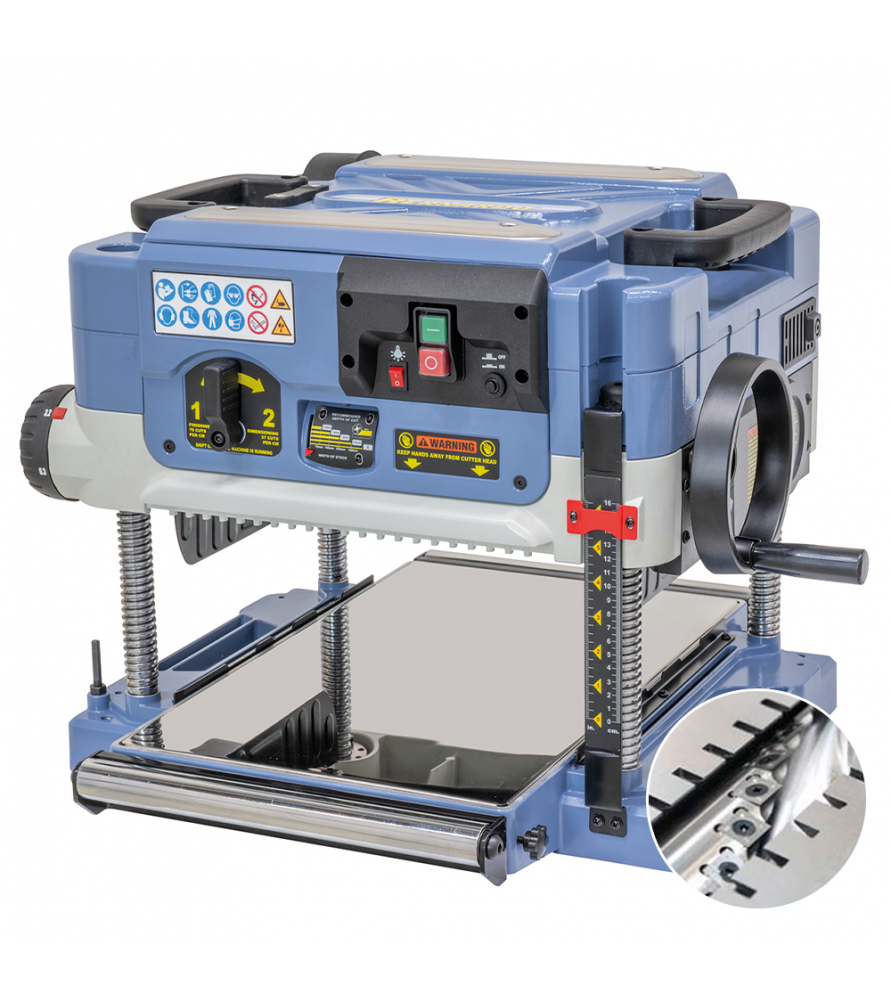

General description of the Bernardo TH330Pro-S planer :

• Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
• Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
• The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood

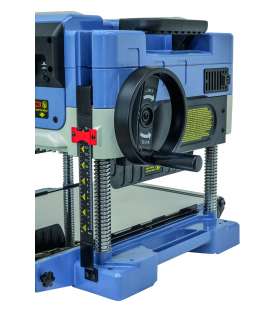

• Handwheel and scale allow for precise adjustment of chip removal
• Rubber-coated in- and outfeed roller for consistent workpiece feed and quality finish
• Optimal for planing of boards, beams and planks
• Serienmäßig mit integrierter Absaugung und Spänesack
• Handles on the side allow for easy transportation

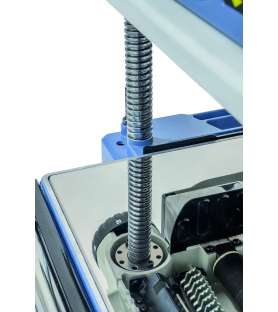

• Planing unit is guided fourfold to guarantees precise results
• Standard with double-sided extendable table extension with integrated rollers

The Bernardo TH330Pro-S planer comes with :

• Spiral cutter head with 30 pcs. TCT-blades
• Replacement TCT-blades (5 pcs.)

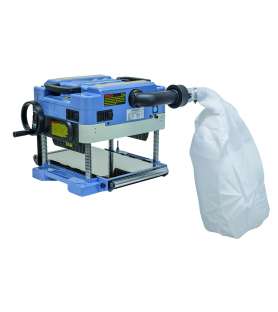

• Integrated dust extractor
• Double-sided extendable table extension wih rollers
• Working light

Technical specifications of the Bernardo TH330Pro-S planer :

• Working width : 330 mm
• Working height min./max. : 5 - 155 mm
• Table size : 505* x 330 mm
• Max. cutting depth : 3,2 mm
• Working length min. : 140 mm
• Planer shaft diameter : 50 mm
• Cutter knives : - TCT-blades 30 pcs.
• Shaft rotation speed : 9400 rpm
• Feed speed : 4 / 7 m/min
• Dust extraction outlet : 60 / 100 mm
• Motor power output S1 100% : 1,8 kW (2,4 HP)
• Motor power input S6 40% : 2,5 kW (3,4 HP)
• Voltage : 230 V
• Machine dimension (L x W x H) : 700 x 610* x 450 mm
• Weight approx. : 49 kg
