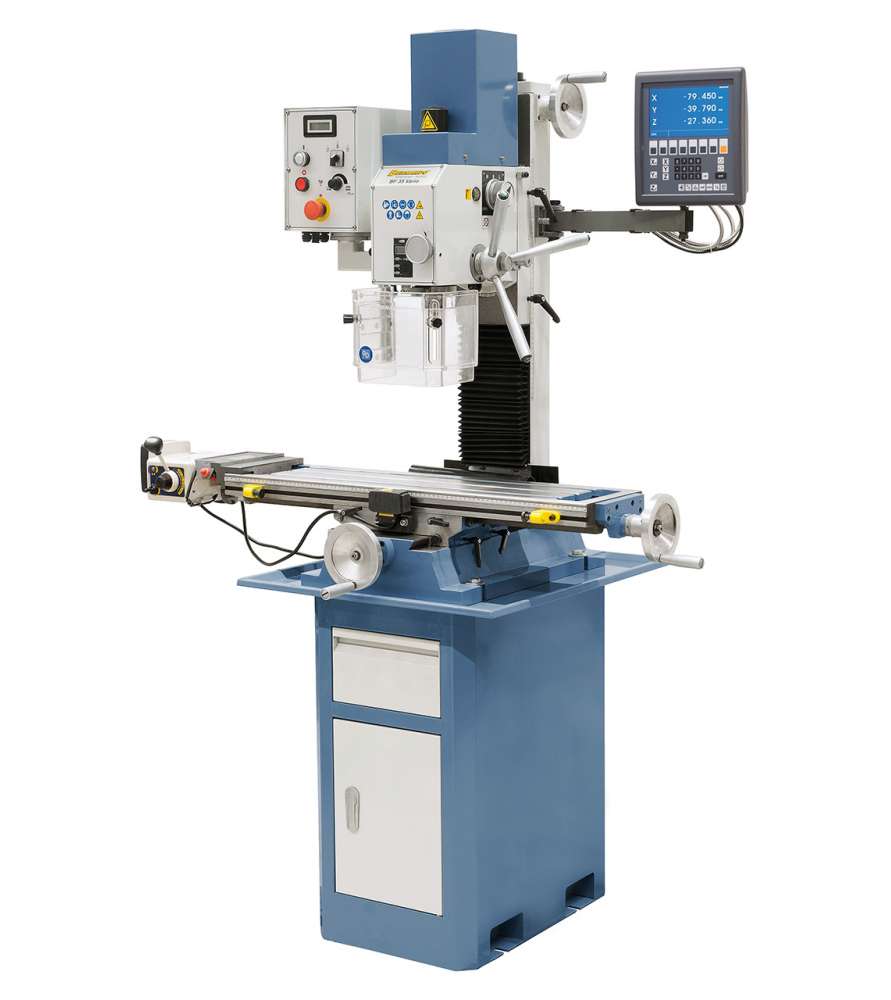

Drilling and milling machine Bernardo BF35VARIO incl. feed and 3-axis digital readout

2,982.50 €

Including €2.50 for ecotax

Reference: BBF35VARIO3ax

The BF 35 Vario milling machine is equipped with a Delta frequency converter. The advantages are high torque at low speed ranges and almost constant speed under load. This model is suitable for professionals and model makers.

Quantity
Not available

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

General description of the Bernardo BF35VARIO metal drilling machine:

  • Available with automatic feed and 3-axis digital display
  • Wide speed range 75 - 3000 rpm, torque transmission by 2-speed gearbox
  • Speed ​​variator to adapt to the room
  • Multiple possible uses: tapping, grooving, slotting ...
  • Dovetail guide in x, y and z, adjustable by adjusting shim
  • High concentricity (≤0.015 mm) of the spindle by precision bearings
  • With EMC filter; protects electrical devices against electromagnetic interference
  • Milling head swivels on both sides for angle drilling, chamfer milling, etc.
  • Quiet operation with oil bath and rectified gears
  • Lowering and raising the spindle by lever, precision adjustment by crank

Technical characteristics of the Bernardo BF35VARIO metal drilling machine:

  • Cast iron drilling capacity: 35 mm
  • Steel drilling capacity: 30 mm
  • Max face milling capacity: 75 mm
  • Max milling capacity: 25 mm
  • Maximum thread: M 20
  • Gooseneck: 180 mm
  • Spindle / table distance: 120 - 470 mm
  • Spindle stroke: 75 mm
  • Spindle speed, variable: 100 - 1000/300 - 3000 rpm
  • Spindle cone: CM 3
  • Table dimensions: 840 x 210 mm
  • Stroke (x / y): 565/215 mm
  • Adjustable milling head: -90 ° to + 90 °
  • Milling head height adjustment: 350 mm
  • T-slot dimensions: 14 mm
  • Continuous power S1 100%: 1.5 kW / 230 V
  • Power S6 40%: 2.2 kW / 230 V
  • Machine dimensions (W x D x H) *: 1300 x 715 x 1200 mm
  • Weight (approx.): 277 kg
  • * without base

The Bernardo BF35VARIO metal drilling machine with automatic feed and 3-axis digital display is delivered with:

  • 3-axis digital indicator ES-12 V with LCD display
  • Feed on axis x AL 350 D
  • Mandrel assembly shaft CM 3 / B 16
  • Quick-release chuck 3 - 16 mm / B 16
  • Tension rod M 12
  • Digital speed indicator
  • Digital depth indicator
  • Tapping device
  • EMC filter CE standard
  • Height adjustable protector
  • Service tools
