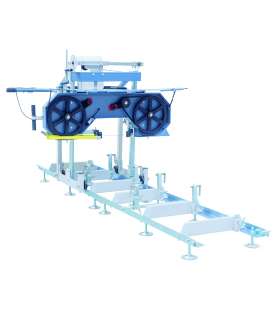

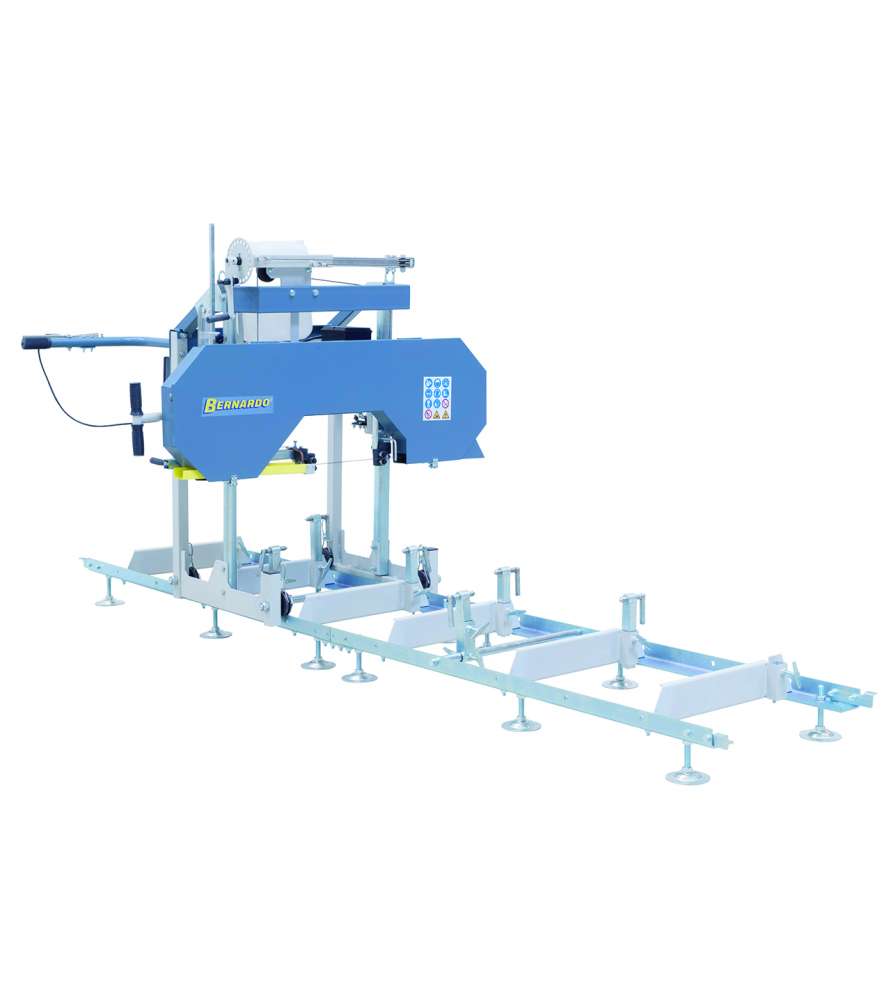

Advantages of the Bernardo BBS400E - 400V Log bandsaw :

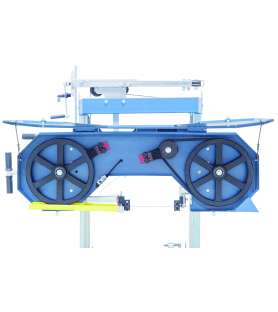

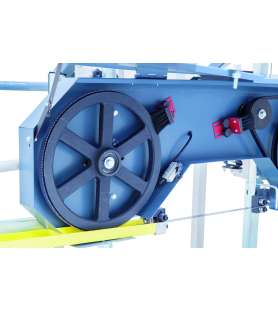

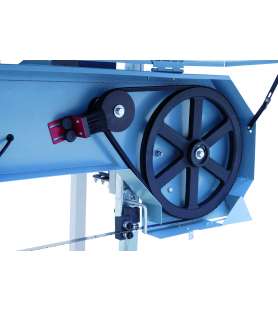

• Dynamically balanced, grey cast drive wheels allow for a smooth run
• Suitable for processing logs into boards, planks and beams
• Bed extensions are optionally available for various cutting lengths
• Suitable for cutting of soft as well as hard timber logs

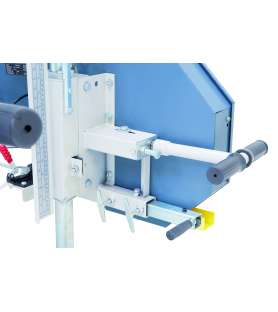

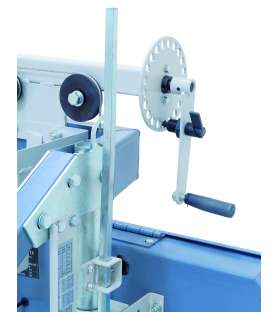

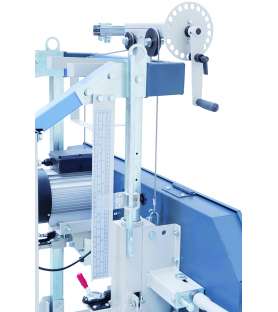

• Manual adjustment of feed and height of saw unit

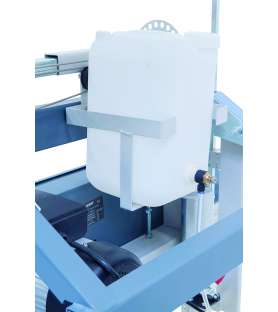

• Comes complete with coolant container and dosage valve for optimal lubrication and cooling of bandsaw blade

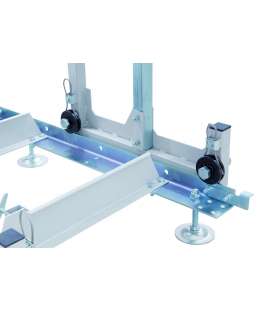

• Adjustable fences allow for easy clamping of timber logs

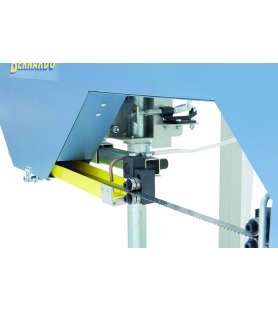

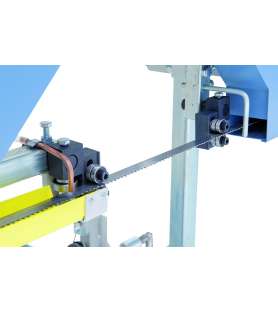

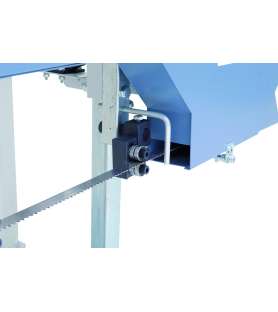

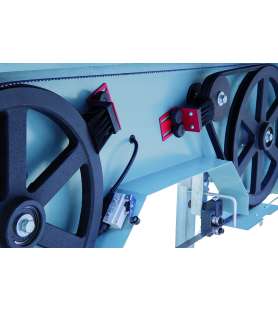

• Saw unit is fixed and guided from both sides

The Bernardo BBS400E - 400V log bandsaw comes with :

• Bandsaw blade HSS 2750 x 19 x 0,9 mm

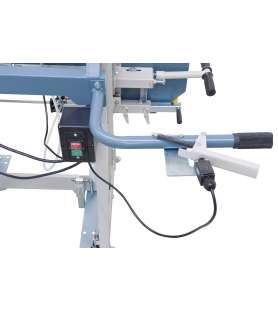

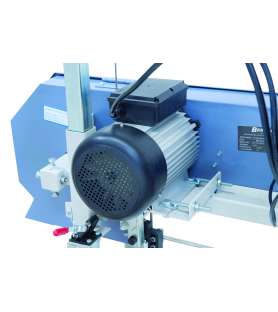

• Electric motor with star delta start-up
• Bed extension for cutting length max. 2,35 m
• 2 pcs. log clamping devices
• Coolant tank

Technical specifications of the log bandsaw Bernardo BBS400E - 400V :

• Diam. Maximum log diameter: 400 mm
• Maximum board width: 385 mm
• Maximum cutting height: 390 mm
• Minimum cutting height: 50 mm
• Maximum cutting depth: 155 mm
• Basic cutting length: 2350 mm
• Maximum cutting length: Unlimited
• Minimum cutting length: 550 mm
• Feed: Manual
• Wheel diameter: 350 mm
• Wheel width: 25 mm
• Blade: 2750 x 19 x 0.9 mm
• Blade speed: 840 m/min
• Motor power: 2.2 kW (3.0 hp)
• Voltage: 400 V
• Machine dimensions (L x W x H): 1350 x 1350 x 3045 mm
• Weight (approx.): 150 kg
