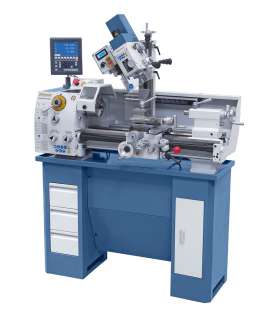

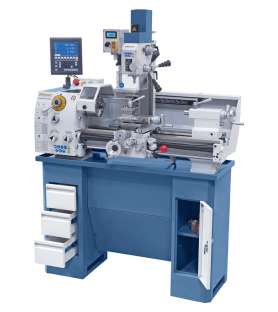

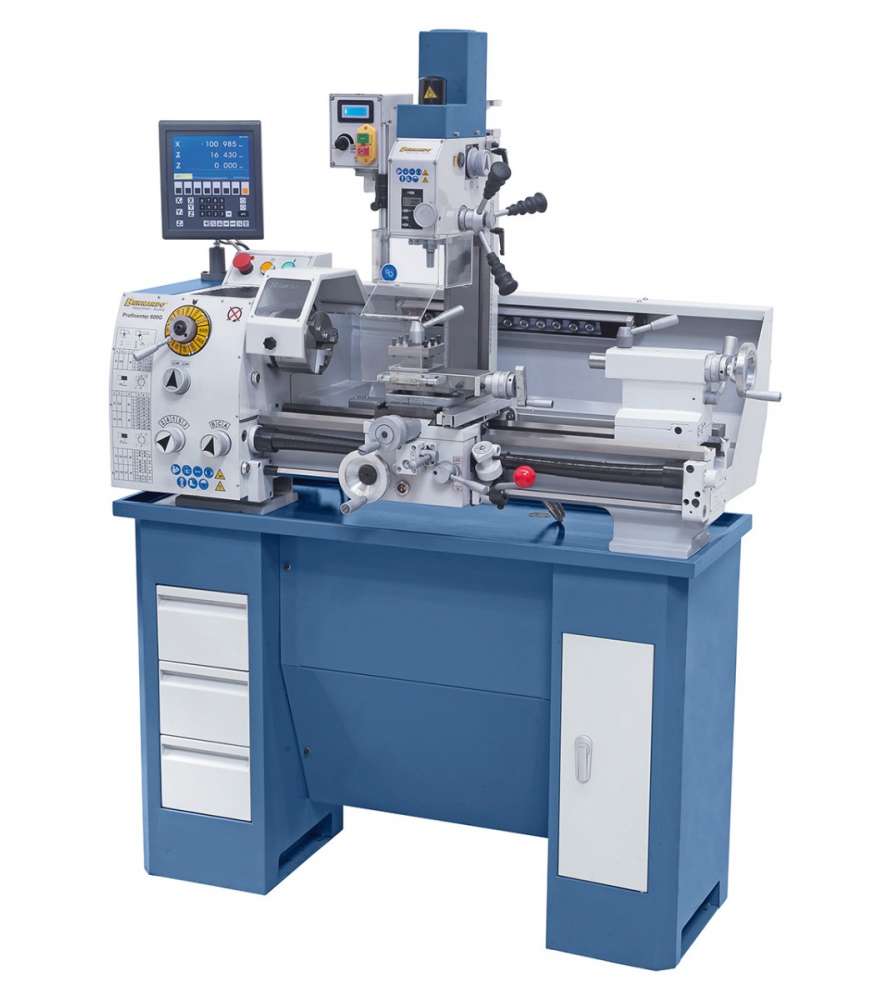

General description of the Bernardo Proficenter 600 G metal lathe and milling machine:

• Gearbox for quick and easy change of rotational speed
• High concentricity accuracy of the spindle nose (≤ 0.009 mm) thanks to quality bearings
• Powerful drive motor for high torque, rotational speed range 45 - 2000 rpm
• Great versatility, for precision mechanics, training and apprenticeship workshops, etc.
• Simple, accessible and precise advance adjustment controls
• Solid frame with induction hardened and ground bench slide
• Ideal for machining steel, non-ferrous materials and plastics
• Standard with slide bar for automatic longitudinal and transverse feed

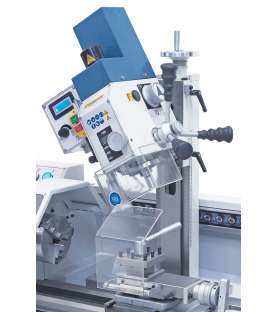

• Milling head swivels on both sides for angle drilling, chamfer milling, etc.
• As standard with left / right rotation of the milling spindle
• Precise positioning of the milling spindle by hand crank

Technical characteristics of the Bernardo Proficenter 600 G metal lathe and milling machine:

Metal lathe

• Between centers: 600 mm
• Center height: 140 mm
• Machinable diameter above the bed: 280 mm
• Bench width: 150 mm
• Spindle passage: 26 mm
• Spindle cone: CM 4
• Rotational speed range: (12) 45 - 2000 rpm
• Longitudinal feeds: 0.044 - 0.437 mm / rev
• Cross feeds: 0.022 - 0.218 mm / rev
• Metric threads: (30) 0.25 - 5 mm
• Inch threads: (20) 6 - 96 TPI
• Tailstock quill stroke: 110 mm
• Tailstock sleeve cone: CM 2
• Continuous power S1 100%: 0.75 kW / 400V
• Power S6 40%: 1.0 kW / 400V

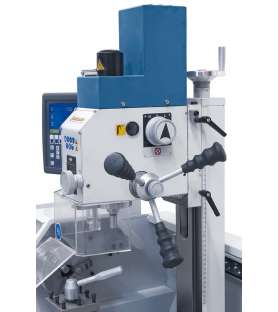

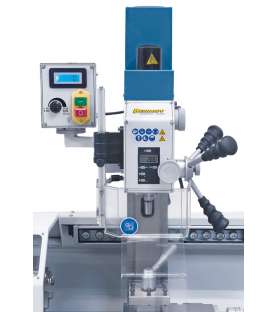

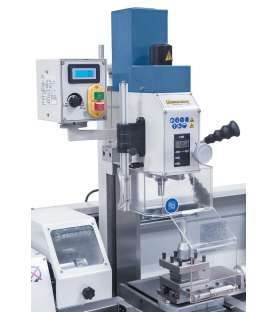

Milling head

• Steel drilling capacity: 16 mm
• Max face milling capacity: 50 mm
• Max milling capacity: 16 mm
• Gooseneck: 150 mm
• Spindle speed, variable: 50 - 2250 rpm
• Spindle cone: CM 2
• Adjustable milling head: -90 ° to + 90 °
• Milling head height adjustment: 195 mm
• Continuous power S1 100%: 0.50 kW / 230 V
• Power S6 40%: 0.75 kW / 230 V
• Machine dimensions (W x D x H) *: 1220 x 700 x 910 mm
• Weight (approx.): 265 kg

* without base

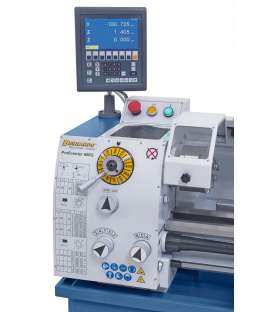

The Bernardo Proficenter 600 G metal lathe and milling machine with 2-axis digital indicator ES-12 V is delivered with:

• ES-12 V 2-axis digital indicator with LCD display
• 3-jaw chuck 125 mm
• 125 mm flange
• Key chuck 1 - 13 mm / B 16
• Chuck assembly shaft CM 2 / B 16
• Fixed tailstocks
• Device to fall back in step

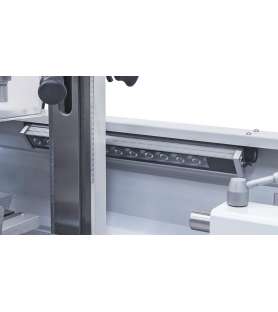

• LED lighting
• Interchangeable sprockets
• 4-position turret

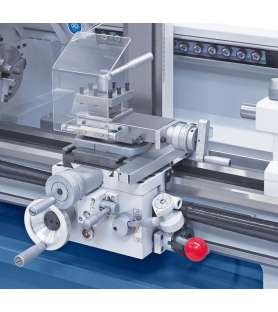

• Cross and upper carriage
• Digital depth indicator
• Digital speed indicator
• M10 tie rod
• Chuck protection
• Spindle cover
• Rear casing
• Service tools
