Advantages of the tilting head mortising machine:

• Complete with handwheels for changing the coordinate table
• Drill chuck accessible from both sides for convenient change of mortising chisels
• Adjustable dovetail guiding in all axis

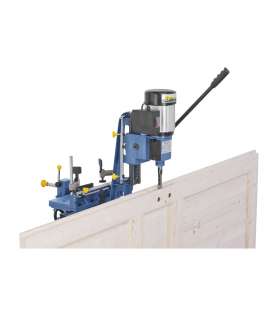

• Spindle head swivels 180°, essential for mortising works on doors
• Includes gas pressure cylinder to support mortising
• Ideal for slotting and mortising of soft and hard timbers
• Grey cast-iron machine frame eliminates vibrations and promotes accuracy

Technical characteristics of this mortising machine :

• W x W x H mm: 430 x 610 x 1100 mm (without the base)
• Table dimensions W x W: 400 x 150 mm
• Table setting L / P mm: 175/150
• Height / Max wood width: 200x145 mm
• Drilling stroke mm: 230
• mandrel opening ø mm: 16
• Drilling depth mm: 76
• Bedane (tail ø) mm: 19
• Chestnut diameter max: 25 mm
• Speed ​​of rotation: 2850 rpm
• Single power motor absorbed P1 W: 750 (1 HP)
• Weight kg: 110 kg without the base

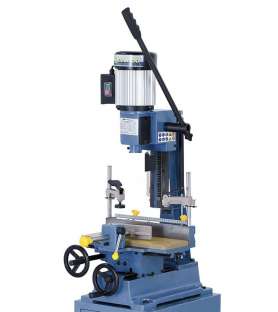

The mortiser square chisel Bernardo HM25 comes with:

• Drill chuck 16 mm
• 2 pcs. eccentric holder

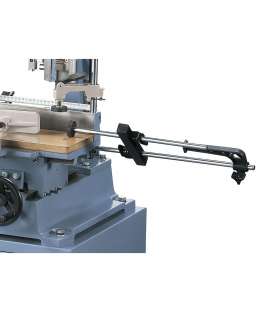

• Longitudinal fence
• Drill depth stop with scale

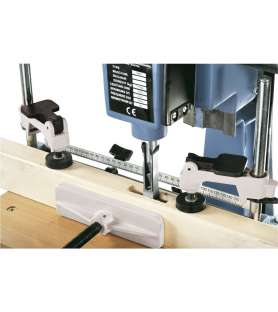

• Quick clamping vice
• Gas pressure balancing cylinder
• Moveable coordinate table
