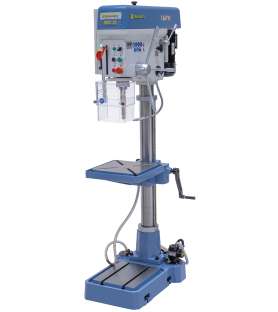

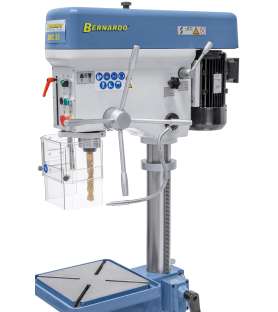

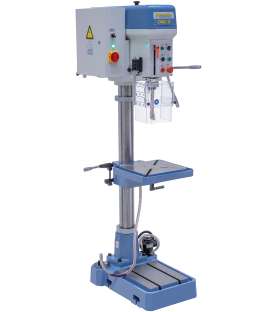

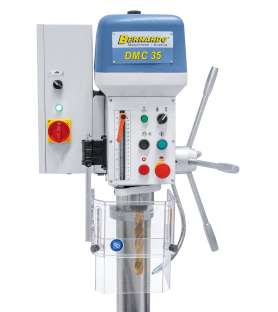

Advantages of the column drilling machine Bernardo DMC 35 - 400V :

• Protective cover in accordance to CE standards, adjustable to various drill bit sizes

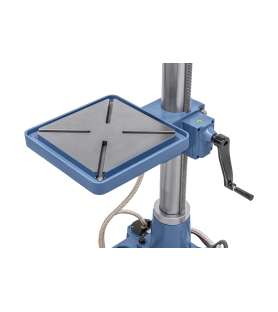

• Surface treated work table, height adjustable via gear rack and crank

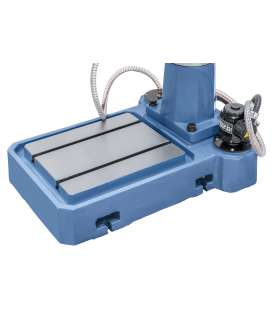

• Precisely treated base includes T-slots and integrated coolant device

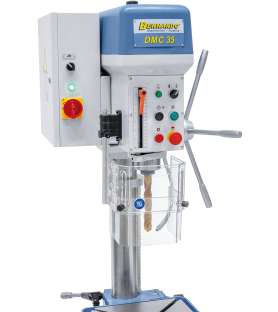

• Height adjustable protective cover with micro switch for increased safety
• High concentricity ≤ 0,02 mm measured at spindle
• Powerful motor even at continuous operation
• Solid and powerful drilling machine for high demands
• Including automatic reverse rotation for thread cutting
• Solid, polished steel column suitable for heavy workload

The column drilling machine Bernardo DMC 35 - 400V comes with :

• 5-20 mm / B 22 keyed chuck
• MT 3 / B 22 chuck mounting arbor
• MT 3/2 reduction cone

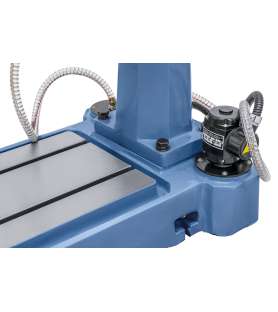

• Coolant system
• Tapping attachment
• LED light
• Adjustable guard Height

Technical specifications of the column drilling machine Bernardo DMC 35 - 400V :

• Drilling capacity max. : 32 mm
• Thread cutting max. : M 24
• Morse taper : MT 3
• Spindle speed : (5) 320 - 1820 rpm
• Distance spindle to column : 265 mm
• Distance spindle to table max. : 815 mm
• Distance spindle to base : 1240 mm
• Spindle stroke : 150 mm
• Column diameter : 100 mm
• Table size / T-slot size : 332 x 332 mm / 14 mm
• Working surface of base : 382 x 312 mm

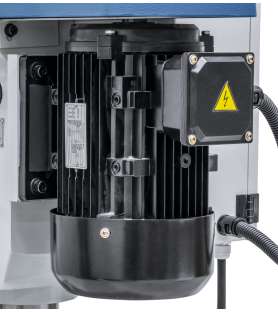

• Motor power output S1 100% : 1,5 kW / 400 V
• Motor power input S6 40% : 2,2 kW / 400 V
• Machine dimension (W x D x H) : 570 x 940 x 1870 mm
• Weight approx. : 310 kg
