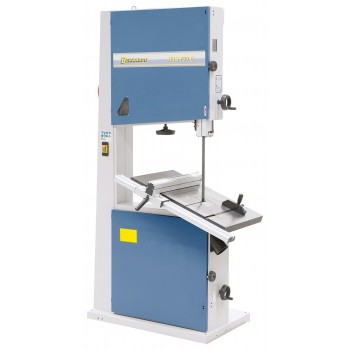

This Bernardo HBS700E band saw has two suction nozzles (100 mm) for optimal chip extraction!

Its powerful motor allows the processing of large blocks of wood and beams!

The advantages of the Bernardo HBS700E band saw:

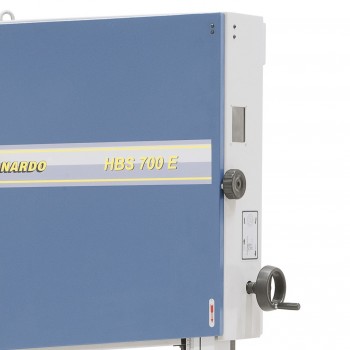

• Crank height adjustment by crank

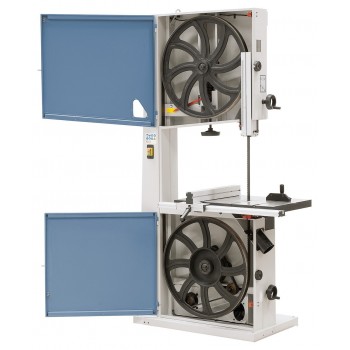

• Gray cast iron wheels with rubber pad and chip brush
• Machine body without torsion guaranteeing a quiet and precise running
• Large cast iron table, swiveling from -5 ° to + 45 °

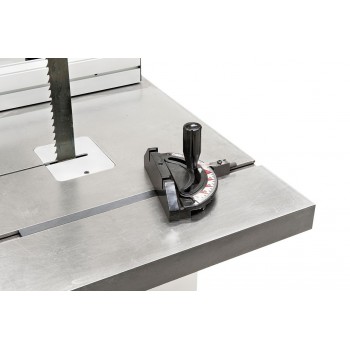

• Longitudinal stop in easily movable aluminum with quick clamping system and integrated magnifying glass
• Includes an automatic stop limit switch when opening saw blade covers

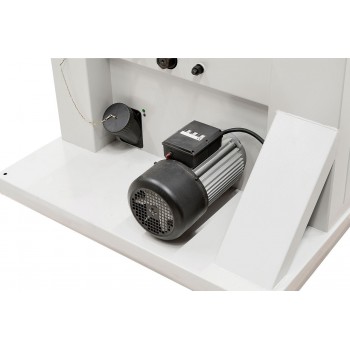

• Powerful 7.5 cv engine

The band saw comes with: A band saw blade, a pusher, tools and an angle guide

Bernardo HBS700E band saw specifications:

• cutting width: 700 mm
• cutting height: 430 mm
• saw blade: 5020 x 38 x 0.65 - 2 ZpZ
• Sägebandbreiten: 19 - 40 mm
• Cutting speed: 1080 m / min
• size of the table: 640 x 500 mm
• table extension: 150 x 500 mm
• height of the table: 950 mm
• Rocking table: -5 ° to + 45 °
• Suction connection Ø: 2x 100 mm
• S1 motor output power 100%: 4.0 kW (5.0 hp)
• Engine power S6 40%: 5.5 kW (7.5 hp)
• Voltage: 400V
• Dimension of the machine (W x D x H): 1300 x 900 x 2220 mm
• Weight approx. : 311 kg
