The Scheppach brand has been well known for many years in the world of DIY, power tools and garden machinery. Its petrol lawn mowers have been widely sold over the years, and many of them are still being used regularly in gardens today.

The Scheppach MS200-51 and MS200-51VS are among those machines for which it is still worthwhile to find spare parts.

Many Scheppach MS200-51 and MS200-51VS lawn mowers were sold – so why not keep them running?

A lawn mower that is several years old does not necessarily need to be replaced.

If the engine still runs properly, the chassis remains in good condition and the mower is still perfectly suited to your garden, replacing a worn part often makes much more sense than replacing the entire machine.

That is precisely why we have brought together a selection of spare parts for Scheppach MS200-51 and MS200-51VS lawn mowers in this category.

The idea is simple: replace the part that is actually faulty and continue using a machine you already know well.

After several seasons, you become familiar with your mower: how it normally starts, the sound it makes, how it handles your garden and even some of its little quirks. If one simple replacement part can give it several more years of service, it would be a shame to replace it too soon.

A wide range of replacement parts for your Scheppach MS200-51(VS)

Depending on the version and manufacturing date of your lawn mower, you may find various parts for the cutting system, engine, drive system and grass collection system.

Available parts may include:

• Carburettor.

• Flywheel.

• Flywheel key.

• Mulching cover.

• Drive bar.

• Drive cable.

• Bushings and mechanical components.

• Tension spring.

• Deflector.

• Starter.

• Belt pulley.

• Engine gaskets.

• Grass collector components.

• Transmission parts.

• Fixings.

• Various small parts required for maintenance and repairs.

This range makes it possible to replace precisely the faulty component rather than unnecessarily replacing a complete assembly that is still in good working condition.

Maintain your lawn mower rather than automatically replacing it

A petrol lawn mower works in particularly demanding conditions.

It is exposed to vibrations, dust, damp grass, temperature changes and sometimes impacts with stones, branches or roots.

It is therefore perfectly normal for certain parts to begin showing signs of wear after several seasons.

That does not mean the whole machine has reached the end of its useful life.

A properly maintained lawn mower can continue working for many years, provided worn parts are replaced at the right time and small problems are not allowed to develop into more serious faults.

Blade and cutting system: check them regularly

The blade is naturally one of the hardest-working parts of the mower.

It rotates at high speed throughout the mowing process and may come into contact with obstacles hidden in the grass.

A stone, branch or root can be enough to damage or bend a blade.

Some warning signs should not be ignored:

• Poorer cutting quality.

• Grass that looks torn rather than cleanly cut.

• Unusual vibrations.

• A new noise following an impact.

• A visibly bent or badly worn blade.

After a significant impact, do not check only the blade.

The blade holder, fixings and engine shaft should also be inspected. A new blade will not necessarily eliminate vibrations if another component in the cutting system has also been damaged.

Has your mower suddenly started vibrating? Check it before continuing

After using the same lawn mower for several years, you usually become familiar with how it feels and sounds.

If it suddenly begins to vibrate much more than usual, there is probably a reason.

The cause may be a bent or unbalanced blade, damaged blade holder, loose fixing or another mechanical component.

In this situation, it is better to stop the machine and identify the cause.

Continuing to mow with excessive vibration can lead to premature wear or damage to other components.

Your lawn mower will often give you the first warning signs of a problem before a complete breakdown – you just need to pay attention to them.

When the self-propelled drive becomes less effective

The drive system is also subject to regular wear.

Over time, you may notice that:

• The mower no longer moves forward as efficiently.

• The drive is difficult to engage.

• The lever feels unusually loose.

• The mower moves in jerks.

• The self-propelled drive no longer works at all.

Before assuming there is a major transmission fault, several components should be checked.

The drive cable, belt, pulley, springs and other parts of the mechanism may be responsible for the problem.

A cable can stretch over time, a belt can wear and a spring can lose its effectiveness.

Sometimes a problem that initially seems serious is actually caused by a relatively simple part.

Drive belt and pulley: essential transmission components

The belt transfers movement between different mechanical components of the mower.

Like any drive belt, it wears over time.

As it ages, it may:

• Stretch.

• Crack.

• Fray.

• Slip.

• Eventually break.

The pulley should also be checked when working on the drive system.

If your mower has a drive problem, it is therefore worth inspecting the complete system before ordering a replacement part.

This helps avoid replacing a component that is still perfectly functional when the real cause lies elsewhere.

Carburettor: when the engine becomes difficult to start

The carburettor is an important part of the engine.

After several years of use or a long period in storage, it may be responsible for symptoms such as:

• Difficult starting.

• Engine starts and then stalls.

• Irregular engine speed.

• Loss of power.

• Poor acceleration.

However, a starting problem does not automatically mean that the carburettor is faulty.

Before replacing it, it is also advisable to check the spark plug, fuel supply, air filter, ignition system and safety devices.

Replacing several parts at random often costs more than carrying out a methodical diagnosis first.

Flywheel and flywheel key: small components worth checking

The flywheel is an important mechanical component of the engine.

On certain versions of the Scheppach MS200-51 and MS200-51VS, different components associated with the flywheel may be available separately.

The flywheel key may look like a very small and insignificant part, but it plays an important role in correctly positioning the assembly.

This is a good example of something frequently encountered when repairing garden machinery: a very small part can sometimes cause a problem that appears much more serious.

It is therefore always worth inspecting the machine carefully before deciding that an entire assembly needs replacing.

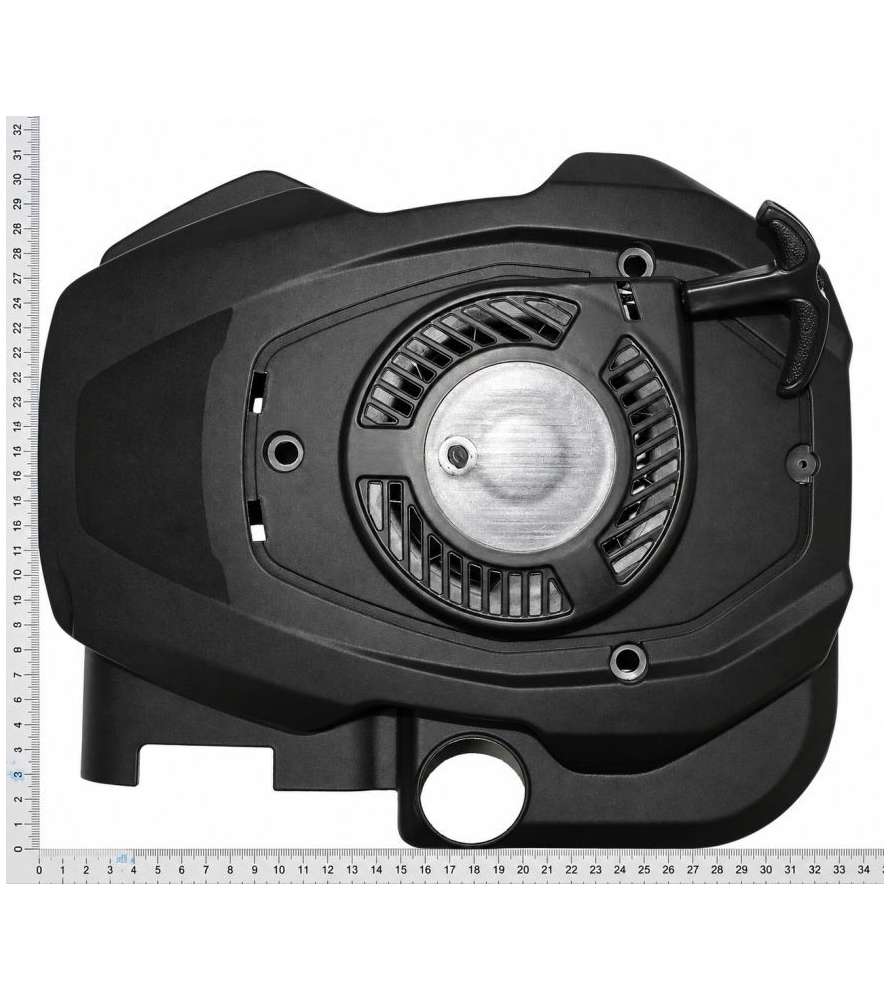

Starter: do not force it unnecessarily

The starting system is used every time the mower is started.

If the starter develops a problem, try to determine the cause before repeatedly forcing it.

If the engine turns normally but does not start, check:

• Ignition system.

• Spark plug.

• Carburettor.

• Fuel supply.

• Safety devices.

However, if the engine appears to be mechanically blocked, do not continue forcing the starter.

Doing so may simply add a broken starter to the original fault.

Mulching cover and deflector: accessories can be replaced too

External mower components are handled regularly and may eventually become lost or damaged.

This can include the mulching cover and deflector.

Mulching is particularly useful when you want the grass to be finely chopped and returned directly to the lawn.

A lost or damaged mulching cover does not necessarily mean giving up this function. When the correct compatible part is available separately, it can simply be replaced.

Grass collector: replace only what is necessary

The grass collector is one of the most frequently handled components on a lawn mower.

It is removed, emptied and refitted several times during a mowing session.

It is therefore perfectly normal for certain parts to wear or break after several years.

Depending on the version of the MS200-51VS, different parts of the grass collection system may be available separately.

And that is precisely the advantage of spare parts:

if only one component is damaged and everything else remains in good condition, why replace the entire assembly?

A targeted repair allows you to keep all the components that are still perfectly usable.

Pay close attention to manufacturing dates

This is a particularly important point for the Scheppach MS200-51 and MS200-51VS.

During the production life of a machine, the manufacturer may modify certain components. Two lawn mowers with the same commercial model name may therefore not necessarily use exactly the same spare parts.

For several components in this range, differences may exist depending on whether the machine was manufactured before or after 07/2021 and 08/2022.

Other more recent parts may also depend on different manufacturing periods.

Before ordering a spare part, we therefore recommend checking:

• Exact model: MS200-51 or MS200-51VS.

• Complete machine reference.

• Serial number.

• Month of manufacture.

• Year of manufacture.

• Part number shown in the exploded parts diagram.

• Reference number printed on the original part, when available.

This check is essential.

Two parts may look identical in a photograph but still have different dimensions, mounting points or technical designs.

Do not rely solely on the appearance of the part

This is a common mistake when looking for spare parts.

You compare the old component with a photograph and think: “That looks exactly the same!”

Unfortunately, it is not always that simple.

A difference of just a few millimetres, a different connector, a slightly different mounting point or a technical update may be enough to make a part incompatible.

To avoid ordering errors, the machine reference, serial number and manufacturing date are often much more reliable than a simple visual comparison.

A few checks before the first mowing session of spring

After several months in the garage or garden shed, it is worth carrying out a few checks before the first mowing session.

Take a few minutes to inspect:

• Engine oil level and condition.

• Blade.

• Blade holder.

• Fixings.

• Wheels.

• Self-propelled drive.

• Cables.

• Drive belt.

• Air filter.

• Spark plug.

• General engine condition.

• Any signs of fuel leakage.

• Safety devices.

This quick beginning-of-season inspection can often reveal a worn part before it fails completely.

Is your lawn mower making a noise it did not make before?

After several years with the same machine, you often know its usual sound without even realising it.

A knocking noise, vibration, metallic sound or unusual change in engine speed deserves attention.

It is not always necessary to dismantle the entire machine immediately, but it is worth finding out what has changed.

An unusual noise can sometimes simply be caused by a loose fixing or a small worn component.

Acting early may prevent a neighbouring component from becoming damaged as well.

Repair your Scheppach MS200-51VS and keep it for several more years

A machine that is several years old is not necessarily outdated or ready to be replaced.

If your Scheppach MS200-51 or MS200-51VS still starts properly, the engine runs well and the chassis remains in good condition, replacing a few worn components may make much more sense than immediately buying a new lawn mower.

There is also a practical side to keeping a familiar machine.

You already know how it handles, how it starts, how to adjust the cutting height and how it behaves on your own lawn.

A belt, cable, carburettor, transmission component or small mechanical part may sometimes be all that is needed to give it several more seasons of service.

That is the real advantage of continuing to offer spare parts for Scheppach MS200-51 and MS200-51VS lawn mowers: replacing what genuinely needs replacing and keeping a mower that still does its job perfectly well.

In this category, you will find our selection of parts for Scheppach MS200-51 and MS200-51VS lawn mowers, helping you maintain and repair your machine and replace its main wear parts.
