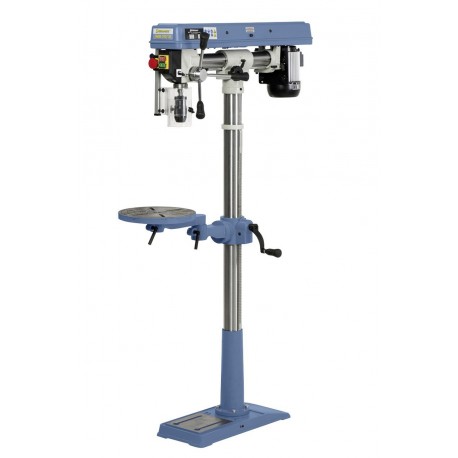

Column drilling press Radial  Bernardo RBM 780 SB

Column drilling press Radial Bernardo RBM 780 SB

Reference: BRBM780SB

539.00 €

Including €2.50 for ecotax

Tax included

The drill press Bernardo RBM780SB has a radial displacement of the head to obtain a wider gooseneck! Thanks to its large guide column, it is ideal for machining large parts

Tension du moteur
Quantity
Factory shipment, delivery within 10 to 12 days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The Bernardo RBM 780 SB radial drill press is a quiet and powerful machine!

Its gray cast iron pulleys ensure a real silence during use!

Advantages of the Bernardo RBM 780 SB radial drill press:

  • Precision bearings that ensure high spindle concentricity
  • IP 54 safety switch with undervoltage coil
  • Sliding, tilting and swiveling drilling head for efficient work
  • Steel rectified column with rack for adjusting the table height
  • Drilling table tilting from -45 ° to + 45 ° and 360 ° swiveling around the column
  • Guaranteed concentricity accuracy measured at the spindle
  • Wide base for greater stability
  • Ergonomic handles for comfortable use

    Technical characteristics of the Bernardo RBM 780 SB radial drill press:

    • Number of speeds: 12
    • Speed ​​(rpm): 300-2550
    • Keyless Chuck Capacity (mm): 1-16 - B16
    • Drilling capacity in metal (mm): 16
    • Spindle stroke (mm): 60
    • Spindle cone: MT2
    • Distance spindle / table (mm): min 120 - max 380
    • Tilt of the head: -90 ° + 45 °
    • Dimensions of the table (mm): dia 290
    • Rotation of the head: 360 °
    • Diameter of the columns (mm): 72
    • Base dimensions (mm): 185 x 200
    • Overall height (mm): 1610 mm
    • Overall dimensions W x b x h: 320 x 1000 x 1610 mm
    • Motor power S6 / S1 - 230V or 400V / 50Hz: 800 / 550W
    • Weight kg: 54

      The Bernardo RBM 780 SB radial drill press comes with:

      • Chuck 1-16 mm / B 16
      • Chuck arbor MT 2 / B 16
      • Nuts T-slot
      • Protective cover adjustable in height
      • Separate emergency stop switch
      • O utils
