Dust collector Bernardo DC750CF - 400V

Dust collector Bernardo DC750CF - 400V

Reference: BDC750CF

1,632.50 €

Including €2.50 for ecotax

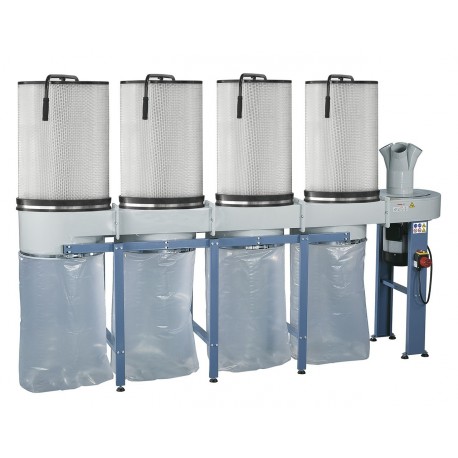

The professional workshop dust collector Bernardo DC750CF equipped with 4 filter cartridges FP2 will allow you to connect 4 machines simultaneously with a total capacity of 760 liters! It offers a suction power of 7800 m³ / h!

Quantity
Factory shipment, delivery within 10 to 12 days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

A dust collector is essential in woodworking and carpentry, it sucks dust and wood chips, protects your machine ensuring its guarantee and above all protects the health of the user!

But how to make the right choice of dust collector?
The more the dust collector has a high suction flow, the better it performs. The higher the airflow, the more suitable and powerful the motor is.
For small models of woodworking machines such as planer-jointers up to 200 mm wide, small band saws, etc. .. the choice can be made on an entry-level dust collector.
On the other hand, the larger the size of the machines on which the dust collector is to be connected, the more it will be necessary to choose a dust collector with a high power. suction. For example, a planer-jointer with a width of 300 mm produces large wood chips and in large quantities, if the dust collector is undersized, unsuitable, he will not be able to extract what the machine asks him to do. the stuffing ensured, let alone the damage to the two machines!

Take note of the characteristics of this dust collector Bernardo DC750CF!

General description :

  • Ideal for vacuuming sawdust and chips
  • Easy change of bags thanks to the quick-release strap
  • Powerful suction thanks to the aerodynamic steel rotor
  • Standard, 4 FP2 filter cartridges with cleaning brushes
  • Filter cartridge with large filtration surface to improve suction power
  • Powerful motor ensuring constant suction

Technical specifications of the dust collector Bernardo DC750CF:

  • Capacity: 7800 m³ / h
  • Filtering surface: 16,0 m²
  • Low pressure max. : 2 340 Pa
  • Inlet diameter: 1 x 180 mm
  • Input diameter with adapter: 4 x 100 mm
  • Volume of the bags: 760 liters (4 x 190 liters)
  • Slow motion: 2.950 rpm
  • Sound pressure: 80 dB
  • Output motor power S1 100%: 3.7 kW (5.0 hp)
  • S6 engine power input 40%: 5.1 kW (7.0 HP)
  • Voltage: three-phase 400V / 50 Hz
  • Size of the machine: (W x D x H) 2700 x 582 x 1755 mm
  • Weight approx. : 125 kg

The dust collector Bernardo DC750CF comes with :

  • 4 FP2 filter cartridges
  • 4 Receptor bags
  • Adapter 1 x 180 mm / 4 x 100 mm
