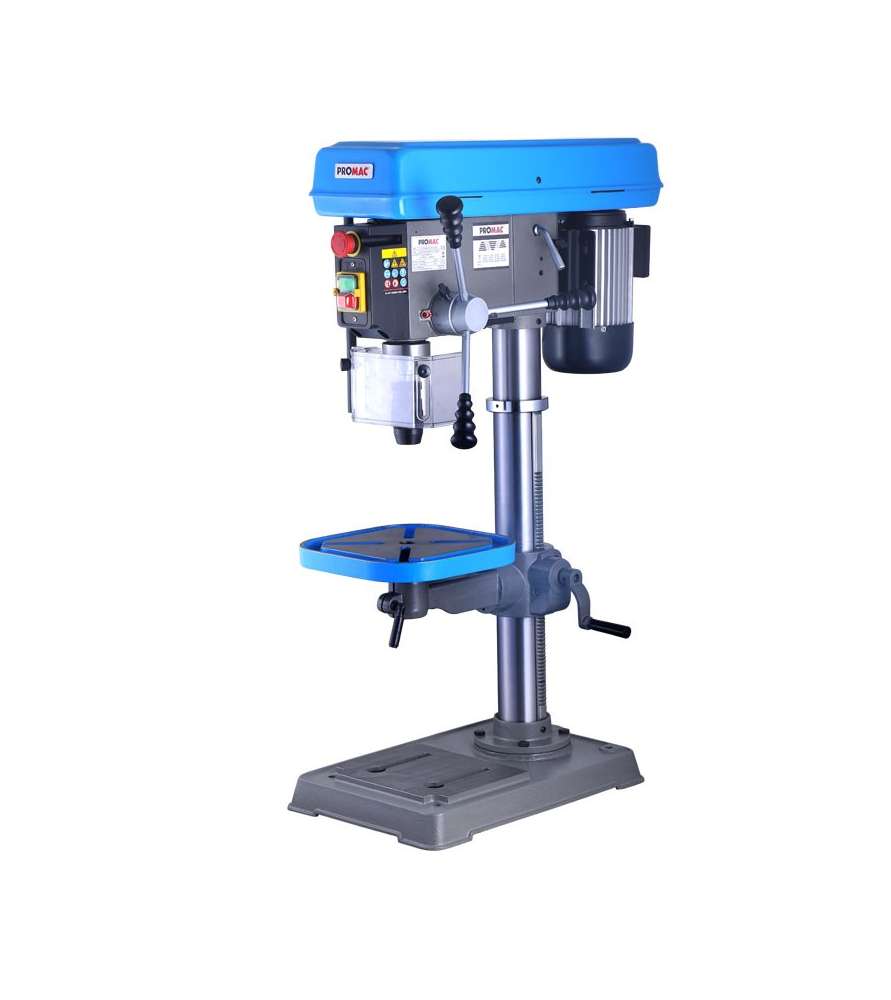

General description of the Promac JD-3285-M bench drill press:
- LED lighting of the drilling area
- Two lasers to do the centering point
- Servo chuck protection
- Delivered with self-tightening chuck CM3/B16mm
- Belt shift
- Tilting table 45°R/45°L
Technical characteristics of the bench drill press Promac JD-3285-M :
- Motor voltage: 230V
- Motor Power: 0.75Kw
- Gooseneck: 215mm
- Spindle Taper: CM3
- Max drilling Ø: Ø32 mm (31.75 mm)
- Spindle stroke: 85 mm
- Number of gears: 16
- Spindle Speed: 180-3000Rpm
- Max Weight on Table: 40 Kg
- Grooves (Number/Size): T12
- Tilting table! 45°D and 45°G
- Weight: 60 Kg
