Planer and thicknesser 410 mm Bernardo PT410 - 400V

2,724.17 €

Including €2.50 for ecotax

Reference: BPT410-400V

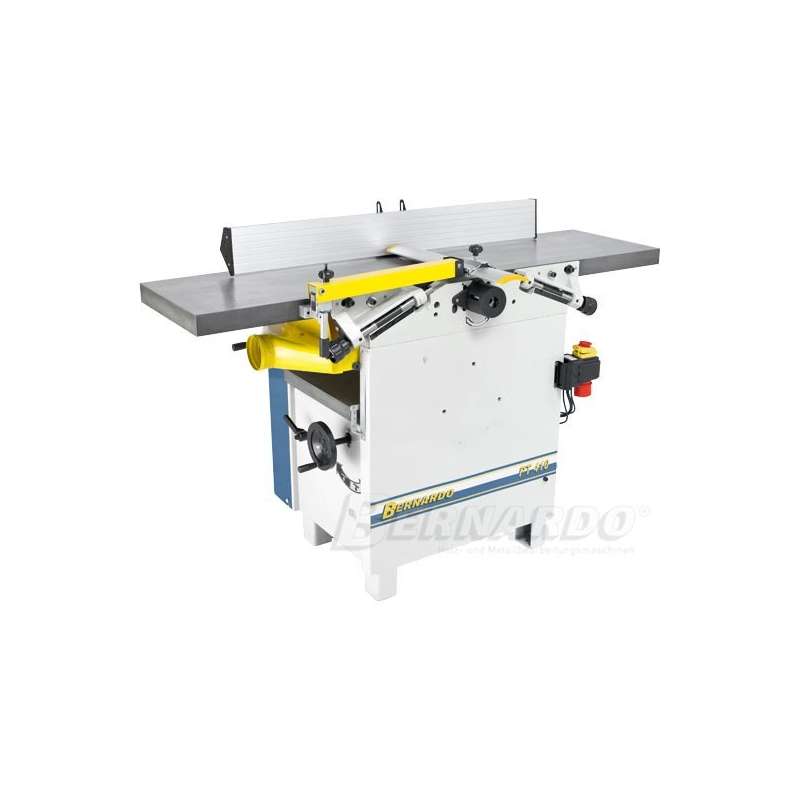

The planer and thicknesser 410 mm Bernardo PT410 has ground cast iron tables that give the machine robustness and precision.

Quantity
Not available
06/14/2021


  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The planer and thicknesser Bernardo PT410 is a great value!

This machine is dedicated to the handymen and amateurs aware of the quality of their machines. Its planing counter will make it easier to position at the desired height! It offers 210 mm planing height and is equipped with a 3000W motor at work, 4200W at startup.

Important recommendation of Probois for many woodworking machines:

  • Before starting always check the inside of the machine, see if the belts are correctly fitted, tighten the bolts, grease the tables, etc. because the different transports cause vibrations.
  • Always use an extension cord of 2.5² wire size
  • The extension must not exceed 10 meters and must not be rolled
  • Provide an electric meter with special fuses starting machine of at least 20A
  • Have a standard electric meter with neutral and earth
  • Always work with a chip vacuum cleaner for your health and machine warranty
  • Always grease the cast iron tables with slip-wood
  • Always work with the protections in place
  • Do not work with blunted or dulled irons it can damage the mechanism, the advance of the planer, break the belt

General description of the planer and thicknesser Bernardo PT410:

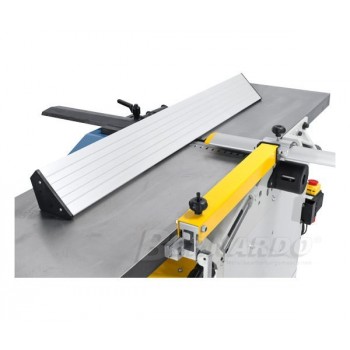

  • Stable prismatic guide, tilting from 90 ° to 45 °

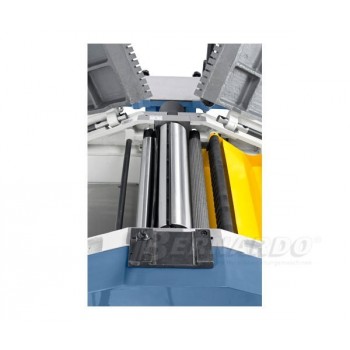

  • 4-irons shaft maintenance-free, HSS steel irons
  • Laminating table to move quickly to planing
  • Fine-adjustment face tables and noise-reducing lips
  • Integrated chip suction hood, foldable - diam. 100 mm connection
  • Canned advance for alignment
  • Plug-switch block with motor brake
  • Excellent planing results thanks to the non-deformable gray cast iron planing tables
  • Protection of the CE-compliant shaft for maximum safety
  • Planer table on central column and support for precise planing

The planer and thicknesser Bernardo PT410 is equipped with:

  • HSS irons
  • Iron adjustment template
  • Digital display for planing table
  • Push

Technical specifications of the planer and thicknesser Bernardo PT410:

  • Table dimensions mm: 1600 x 410
  • Width of alignment mm: 410
  • shaft ø mm: 95
  • Number of shoes: 4
  • Depth of mm: from 0 to 2.5
  • Table top dimensions mm: 750 x 410
  • Planing width mm: 410
  • Planing table length mm: 750
  • Height of planing wood mm: from 4 to 220
  • Feed speed of wood m / min: 8
  • Speed ​​of rotation rpm: 4000
  • Advance of the detachable wood: yes
  • 400V motor
  • Power consumption S1 100% in W: 3000
  • Power S6 at 40% in W: 4200 (5.7HP)
  • Weight kg: 340
  • Dimensions mm: 1610 x 1050 x 1100 mm
  • Guide size mm: 1120 x 130
  • Tilt 90 ° - 45 °

Good to know: Three-phase machines (3-phase, neutral and earth) are usually delivered without a plug. When mounting, be careful not to connect the wires upside down to avoid damaging the mechanical system! See the correct outlet: three-phase electrical outlet.

VERY IMPORTANT FOR DELIVERY!

The delivery of this very heavy planer jointer (about 400 kg) requires a big truck with rags! The place of delivery must be provided so that the truck can approach easily. In the case of a delivery location which is difficult to access, we must inform us so that we can order a smaller truck but delivery charges will apply for this special request. Delivery charges must be paid before shipment.

The machine arrives in a wooden crate. Our prices do not include assembly or installation. It is advisable to have your electrical installation checked by a professional to make sure that it can support the power of this machine so as not to damage it by an unsuitable meter.
