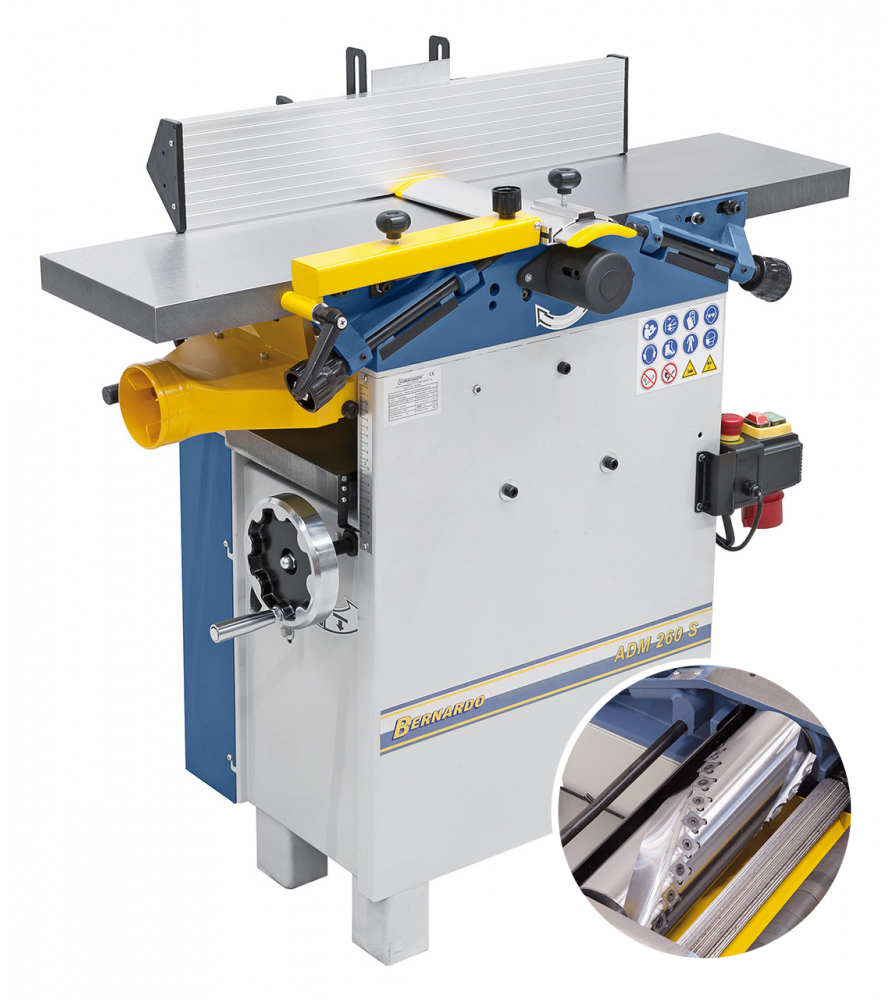

The Bernardo ADM260S planer jointer is equipped with a helical shaft!

This shaft reduces noise stress and ensures optimal results.

General description of the Bernardo ADM260S planer jointer:

• Reduced noise stress (by about 50%) thanks to standard helical knife planer shaft and up to 20 times longer knife life (thanks to four-times reusable carbide reversible inserts)
• Advantage of reversible carbide inserts: In the event of damage, the individual knives can be replaced or rotated
• Carbide knives guarantee crack-free planing results and top-quality surfaces for all types of wood
• Lift-up planing table for quick transition to planing
• Integrated chip extraction hood, foldable – diam. of the connection 100 mm
• Planing tables with fine adjustment and anti-noise lips
• Planer table on central column and support for precise planing
• Stable prismatic guide, tiltable from 90° to 45°
• Excellent planing results thanks to dimensionally stable gray cast iron planing tables

Technical features of the Bernardo ADM260S planer jointer:

jointer

• Cutting width: 250mm
• Table length: 1080 mm
• Table height: 990 mm
• Shaft speed: 3750 rpm
• Carbide reversible inserts: 24
• Shaft diameter: 75 mm
• Guide: 700 x 145mm
• Tilting guide: 90° to 45°
• Removal per pass max: 5 mm

Planer

• Table length: 600 mm
• Planer width: 250 mm
• Planing height, min/max: 5 - 190 mm
• Removal per pass max: 1.8 mm
• Feed rate: 8 m/min
• Ø suction nozzle: 100 mm
• Continuous power S1 100%: 2.0 kW (2.7 hp)
• Power S6 40%: 2.8 kW (3.8 hp)
• Voltage: 230V
• Dimensions (LxWxH): 1100 x 750 x 1180mm
• Weight (approx.): 160 kg

The Bernardo ADM260S planer jointer comes with:

• Helical knife planer arbor with 24 reversible carbide inserts
• Replacement carbide reversible inserts (5 pcs)
• Socket-switch block
• push button
