520J3 belt for the dust extraction turbine on Holzmann and Bernardo planer thicknessers

This 520J3 (205J) belt is designed to drive the turbine of the integrated dust extraction system fitted to several Holzmann and Bernardo 230V planer thicknessers.

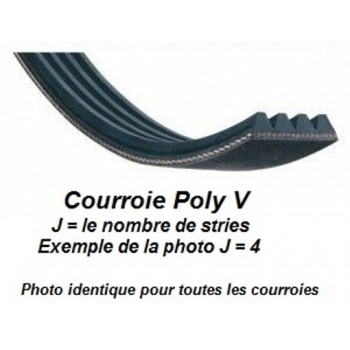

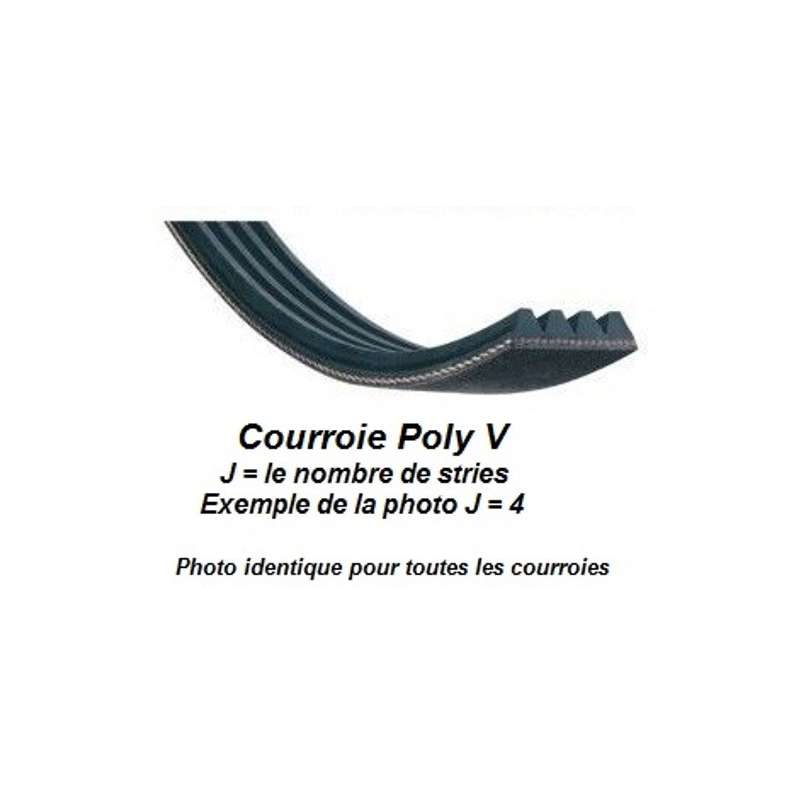

It corresponds to position 126 on the exploded parts diagram of compatible machines. This is a 3-rib J-profile Poly-V belt, identified in particular by the marking 520J3 (205J).

The belt transmits the movement required to rotate the dust extraction turbine. Its condition is therefore important for the correct operation of the machine's chip extraction system.

When should you replace the dust extraction turbine belt?

The turbine belt is a wear part. Over time and with regular use of the machine, it may stretch, wear or become damaged. Several symptoms may indicate that the belt should be inspected or replaced:

• the dust extraction turbine no longer rotates while the machine is running;
• chip extraction becomes abnormally weak or stops completely;
• the belt slips during operation;
• the belt is broken or split;
• one or more ribs are damaged or heavily worn;
• cracks or significant signs of wear are visible;
• unusual noises are coming from the turbine drive system.

When replacing the belt, it is also advisable to check the condition of the pulleys and turbine drive mechanism. A damaged, dirty or misaligned pulley may cause premature wear of the new belt.

Compatibility of the 520J3 (205J) turbine belt - position 126

This 520J3 3-rib Poly-V turbine drive belt is compatible with the following 230V machines:

• Holzmann HOB260ABS-230V
• Holzmann HOB305ABS-230V
• Holzmann HOB305ABSSMW2-230V
• Bernardo PT260-230V
• Bernardo PT260S-230V
• Bernardo PT305D-230V
• Bernardo PT305DS-230V

520J3 turbine belt specifications

Do not confuse the different belts fitted to your machine

These planer thicknessers use several different belts with different dimensions and functions. This part specifically corresponds to the dust extraction turbine drive belt, position 126, marked 520J3 (205J).

It should not be confused with the 940J5 (370J) motor drive belt, position 116, or the 695 x 10 mm flat belt, position 151.

Before ordering, carefully check the marking on your original belt and its position on the exploded parts diagram of your machine.

Check compatibility before ordering

IMPORTANT: BEFORE PURCHASING, please make sure that your machine is included in the list of compatible models.

This compatibility applies to the 230V versions listed above. Depending on the voltage, production year and version of the machine, some components may be different.

If in doubt, check the exact model, voltage, month and year of manufacture and serial number shown on your machine's rating plate before ordering.

Find spare parts for Holzmann HOB260ABS, HOB305ABS, HOB305ABSSMW2 and Bernardo PT260, PT260S, PT305D and PT305DS planer thicknessers at Probois Machinoutils, including belts, chains, sprockets, rollers and other transmission and dust extraction spare parts.
