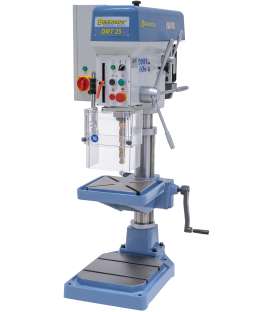

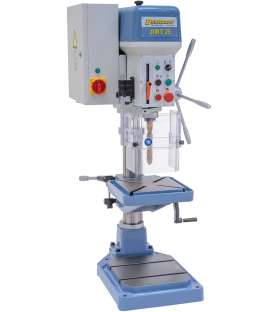

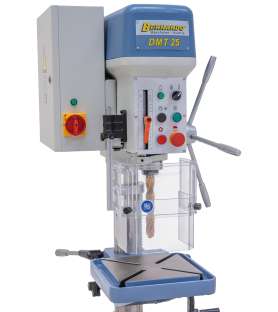

Advantages of the bench drilling machine Bernardo DMT 25 - 400V :

• Protective cover in accordance to CE standards, adjustable to various drill bit sizes
• Surface treated work table, height adjustable via gear rack and crank
• Polished base plate features T-slots for mounting of large workpieces
• Adjustable drill depth stop allows accurate spindle feed
• High concentricity ≤ 0,02 mm measured at spindle
• Powerful motor even at continuous operation
• Solid and powerful drilling machine for high demands
• Including automatic reverse rotation for thread cutting

The bench drilling machine Bernardo DMT 25 - 400V comes with :

• Drill chuck 5 - 20 mm / B 22
• Drill chuck arbor MT 3 / B 22
• Morse taper drill sleeve MT 3 / MT 2
• Thread cutting device
• LED machine light

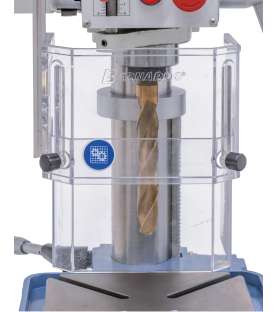

• Height adjustable protective cover

Technical specifications of the bench drilling machine Bernardo DMT 25 - 400V :

• Drilling capacity max. : 25 mm
• Thread cutting max. : M 20
• Morse taper : MT 3

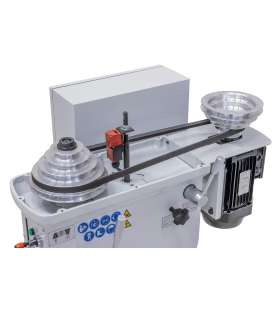

• Spindle speeds : (5) 340 - 2180 rpm
• Distance spindle to column : 240 mm
• Distance spindle to table max. : 355 mm
• Distance spindle to base : 670 mm
• Spindle stroke : 135 mm
• Column diameter : 85 mm
• Table size / T-slot size : 252 x 252 mm / 14 mm
• Working surface of base : 365 x 305 mm

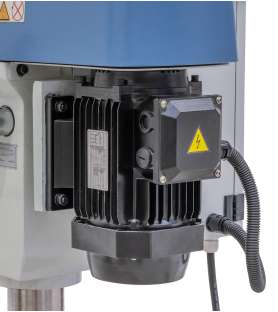

• Motor power output S1 100% : 1,1 kW / 400 V
• Motor power input S6 40% : 1,5 kW / 400 V
• Machine dimension (W x D x H) : 500 x 820 x 1260 mm
• Weight approx. : 184 kg
