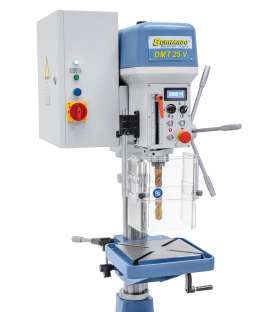

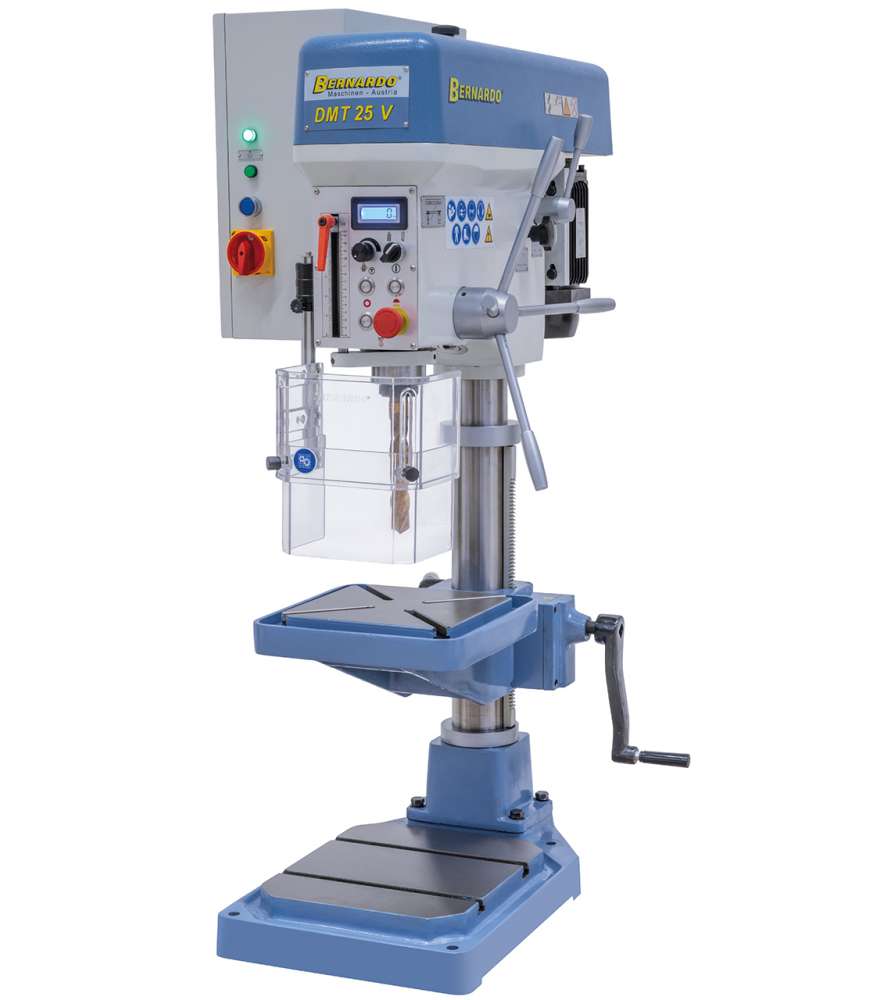

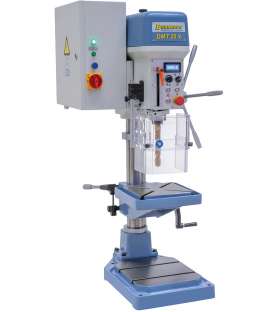

Advantages of the bench drilling machine Bernardo DMT 25 V - 400V :

• Protective cover in accordance to CE standards, adjustable to various drill bit sizes
• Surface treated work table, height adjustable via gear rack and crank

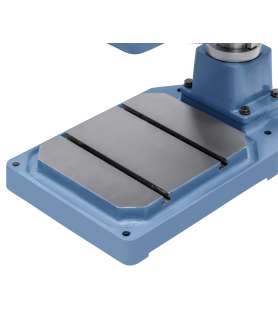

• Polished base plate features T-slots for mounting of large workpieces
• Stepless speed setting allows optimal adjustment of cutting speed
• Adjustable drill depth stop allows accurate spindle feed
• High concentricity ≤ 0,02 mm measured at spindle

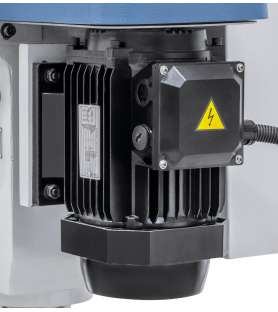

• Powerful motor even at continuous operation
• Solid and powerful drilling machine for high demands
• Including automatic reverse rotation for thread cutting

The bench drilling machine Bernardo DMT 25 V - 400V comes with :

• Drill chuck 5 - 20 mm / B 22
• Drill chuck arbor MT 3 / B 22

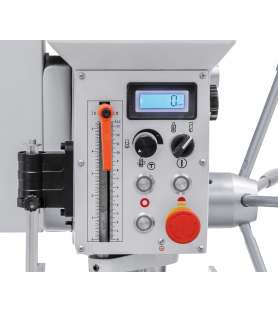

• Digital speed indication
• Morse taper drill sleeve MT 3 / MT 2
• Thread cutting device
• LED machine light
• Height adjustable protective device

Technical specifications of the bench drilling machine Bernardo DMT 25 V - 400V :

• Drilling capacity max. : 25 mm
• Thread cutting max. : M 20
• Morse taper : MT 3
• Spindle speed, stepless : 100 - 620 / 620 - 3300 rpm
• Distance spindle to column : 240 mm
• Distance spindle to table max. : 355 mm
• Distance spindle to base : 670 mm
• Spindle stroke : 135 mm
• Column diameter : 85 mm
• Table size / T-slot size : 252 x 252 mm / 14 mm
• Working surface of base : 365 x 305 mm
• Motor power output S1 100% : 1,1 KW / 400 V
• Motor power input S6 40% : 1,5 kW / 400 V
• Machine dimension (W x D x H) : 550 x 820 x 1280 mm
• Weight approx. : 189 kg
