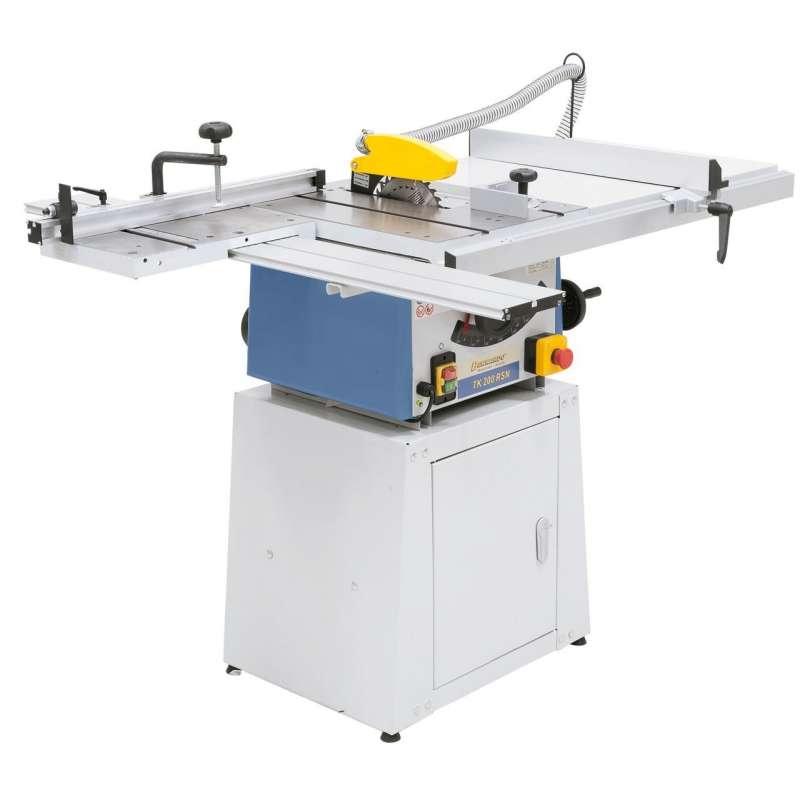

Bernardo TK200RSN circular saw with frame allowing to precisely rest the top part on it and to install an optional displacement kit.

It has the same features as the Kity 419 or the Scheppach Precisa 2.0 which are unfortunately no longer manufactured.

The advantages of the TK200RSN circular saw:

• Cutting height from 0 to 55 mm, speed 4750 rpm.
• The belt transmission eliminates any vibration of the blade and ensures a constant speed.
• Machine equipped with a motor with thermal probe which protects against any risk of overheating.
• Well-designed accessories that increase the sawing capacity of this machine and make it a product with great possibilities in the workshop and on the jobsite.
• Inclination of the blade from 0 ° to 45 °.
• The sawing carriage is equipped with an adjustable guide and a retractable length stop. It is mounted on a movable rail that increases the cutting capacity before and after the blade.
• The 1m rail slides and locks in any position in front of or behind the blade to allow cutting capacity of 600mm front panels.

Technical specifications of the Bernardo TK250RSN table saw:

• Dimensions of the table mm: 530 x 400
• Cut to parallel guide mm: 695
• Extensions: 2x 300 mm x 530 mm
• Inclination of the blade: 90 to 45 °
• Cutting height at 45/90 mm: 40/55
• saw blade diameter / bore mm: 200/30
• Speed ​​of rotation rpm: 4750
• Suction diameter: 50 mm
• 230V motor - Power consumption S1 100%: 1100 W
• Motor 230V - Power output S6 40%: 1500 W
• Thermal protection: yes
• Dimensions of the machine: 1580 x 1010 x 940 mm
• Weight kg: 84

Sawmill:

• Dimensions of the table mm: 400 x 1000
• Running mm: 710

Table extension:

• Table dimensions with extension mm: 530 x 2x300
• Cutting width at parallel guide mm: 760 mm

Optional: Very indispensable! The gearbox for connecting the chip vacuum cleaner!

Machine identical to the model Holzmann TS200 and Scheppach TS82
