Technical characteristics of the JET JPT 10B planer thicknesser :

Thicknesser

• Maximum width: 254 mm
• Table length: 954 mm
• Table/floor distance: 998 mm
• Workpiece stop: 630 x 120 mm
• Tilt range: 0 - 45°
• Max thickness : 3mm

Planer

• Max planing width: 254 mm
• Passage: 5 - 120 mm
• Table length: 305mm
• Minimum piece length: 160 mm
• Feed rate: 6 m/min
• Max planing thickness : 2mm
• Number of irons: 2
• Shaft speed no: 9000 rpm
• Number of cuts per minute: 18000
• Blade length: 261 mm
• Blade thickness: 1.5 mm
• Suction nozzle: 57 & 100 mm
• Machine dimensions (LxWxH): 980 x 470 x 1120 mm
• Net weight: 34 kg
• Voltage: 230V ~1/N/PE 50-60Hz
• Power: 1500W

The JET JPT 10B planer jointer comes with :

• Work piece stopper
• Blade guard
• Planer table extension
• Suction nozzle
• Hose adapter fitting 57 / 100 mm
• 2 push claws
• Thickness crank

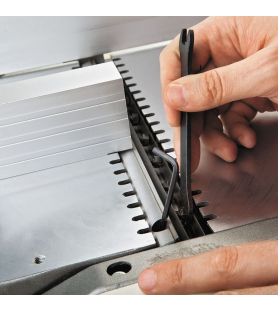

• Blade adjustment module
• Base elements
• 4 rubber pads
• Instructions for use and spare parts list
• Screws and nuts
• Lever and handles
