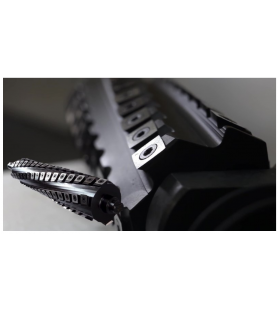

This JET JPT 310HH planer jointer is equipped with a shaft with 56 carbide inserts in helical assembly.

The positioning of the inserts makes it possible to obtain results without any tearing of the fibres, with smooth, almost polished surfaces.

General description of the JET JPT 310HH planer jointer:

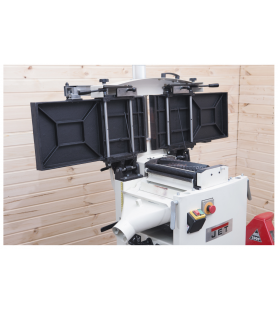

• Quick change from jointer to planer by lifting the 2 table flaps simultaneously
• Planed jointer table, in gray cast iron, guaranteeing optimal sliding of the workpieces
• Advance of wood disengageable in planing
• Best machining results by spiral blade shaft with reversible inserts
• Less frequent pad changes compared to resharpenable blades
• Machine available in three-phase and single-phase
• Warning: in 400V voltage, the electrical outlet is to be installed yourself, at the exit of the electrical cabinet

Technical characteristics of the JET JPT 310HH planer jointer:

• Motor power P1: 2200 W (230V)
• Max planing width : 307mm
• Planing height: min. 3 mm - max. 225 mm
• Max thickness thickness (Planing): 4.5 mm
• Max thickness thickness (Thicknesser): 3 mm
• Feed speed: 7 m/min disengageable
• Rubber output roller diameter: 32 mm
• Dimensions of the jointer table: 1400 x 310 mm
• Minimum work piece length: 150 mm
• Blade shaft speed: 5,500 rpm.
• Blade shaft diameter: 70 mm
• Number of knives, helical head: 56 inserts
• Planing guide (H x W): 150 x 1100 mm
• Guide tilt zone: +45° / 90°
• Suction nozzle diameter: 100 mm
• Dimensions: 1400 x 750 x 1000mm
• Net weight: 230.00 kg
