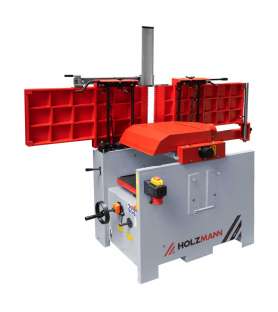

The planer thicknesser Holzmann HOB410PRO is a professional model!
This machine is dedicated to carpenters and DIY enthusiasts or experienced amateurs concerned about the quality of their machines. The long aluminum tilting perpendicular guide is fixed so that it does not have to be removed to enter planing mode. This machine is powerful and stable, which provides high precision work. The large diameter of the central barrel with direct locking of the table is completed by a guide bar.
The planing width of this machine and its power requires a vacuum cleaner that is sufficiently powerful in extraction. Avoid any vacuum cleaner of less than 3500 m3 / h!
Important recommendation from Probois for many woodworking machines:
Before starting up always check the inside of the machine, see if the belts are correctly put in place, tighten the bolts, grease the tables, etc ... because the different transports cause vibrations.
Always use an extension cord of 4² wire size
The extension must not exceed 10 meters and must not be rolled up
Provide an electric subscription pro 9kva mini subscription, a circuit breaker D 20A mini curve
Have a standard electric meter with neutral and earth
Always work with a chip vacuum cleaner for your health and for the guarantee of the machine
Always grease cast iron tables with wood glide
Always work with the protections in place
Do not work with sharpened or blunt irons, this may damage the mechanism, the planer feed, break the belt.
General description of the planer thicknesser Holzmann HOB410PRO:
high quality machine
gray cast iron tables with polished surface
stable guide tiltable from 90 ° to 45 °
two adjustable thickness rollers
spiral-toothed feed roller allows easy insertion of the workpiece
4 irons
Technical characteristics of the planer thicknesser Holzmann HOB410PRO:
Planing table dimensions: 1800 x 410 mm
cutting thickness max. : 5 mm
feeding speed: 7m / min
Voltage: 400V / 50Hz
motor power s6 in W: 5.5 kW S6 (40%):
suction nozzle: ø120
planing table size: 700 x 410 mm
cutting depth: 4 mm
shaft diameter: 98 mm
shaft speed: 4700 min-1
number of irons: 4
sound power level: 111 dB (A)
sound pressure level: 82 dB (A)
gross weight: 570 kg
net weight: 420 kg
packing width: 845 mm
packaging length: 2,000 mm
packaging height: 1.100 mm
The planer thicknesser Holzmann HOB410PRO is delivered with:
