Outfeed roller for Holzmann and Bernardo planer thicknessers

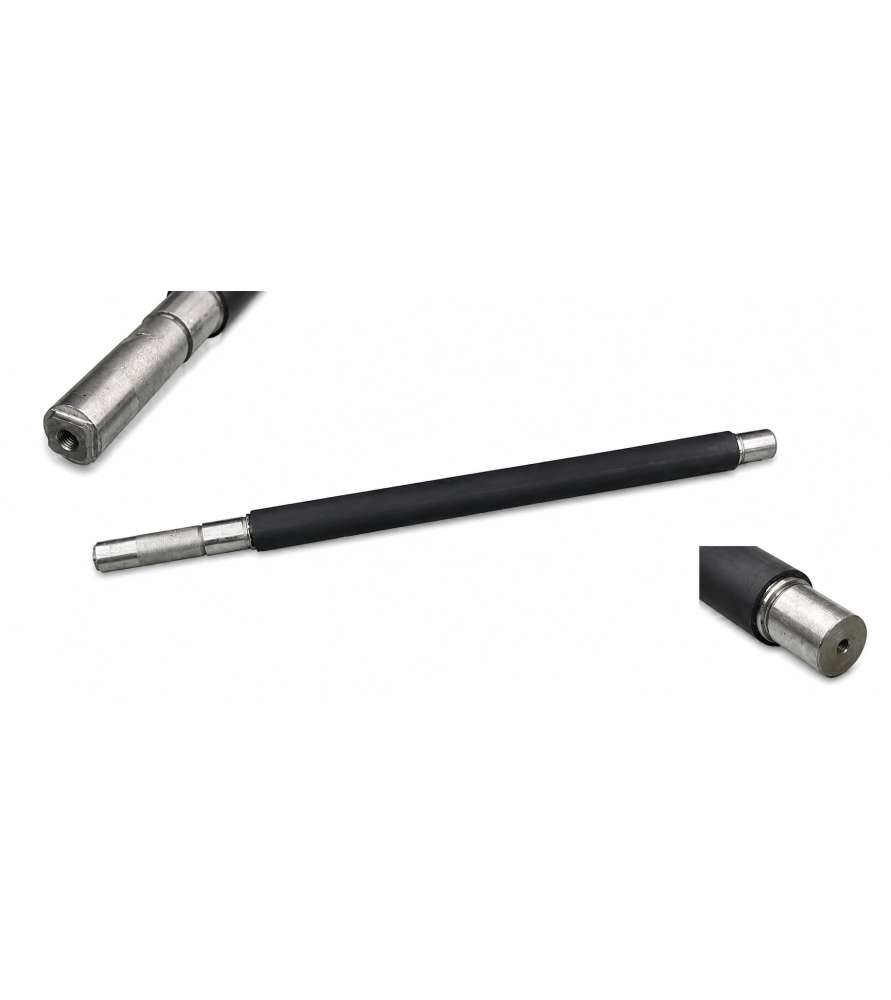

This outfeed roller, item 70, is a replacement part designed for Holzmann HOB305ABSSMW2 and Bernardo PT305DS planer thicknessers.

Integrated into the thicknesser feed system, it is positioned after the cutterblock and helps feed the workpiece smoothly out of the machine after thicknessing.

Unlike the infeed roller located before the cutterblock, the outfeed roller acts once the workpiece has passed the cutterblock. It helps maintain the feed movement until the workpiece has completely exited the machine.

What is the function of the outfeed roller item 70?

The main function of the outfeed roller is to continue feeding the workpiece after it has passed the cutterblock and guide it towards the exit of the thicknesser.

It works together with the infeed roller to ensure smooth and consistent movement of the workpiece through the machine.

The condition of this roller is therefore important for maintaining consistent wood feeding throughout the thicknessing operation.

When should the outfeed roller be replaced?

The outfeed roller may need to be replaced when its surface or coating is worn, smooth or damaged, when the roller is deformed, or when its ends or mounting areas show signs of deterioration.

A worn or defective outfeed roller may cause:

• Irregular feeding of the workpiece at the thicknesser exit;
• Slipping of the workpiece;
• Jerky or inconsistent movement as the wood exits the machine;
• Difficulty completing the passage of the workpiece through the thicknesser;
• Reduced efficiency of the feed mechanism.

Before replacing the roller, it is also recommended to check the condition and adjustment of the other components of the feed mechanism.

Compatible machines

This outfeed roller, item 70, is compatible in particular with the following machines:

• Holzmann HOB305ABSSMW2
• Bernardo PT305DS

Technical specifications

Important – Check compatibility before ordering

IMPORTANT: BEFORE PURCHASING, please make sure that this part is compatible with your machine.

Depending on the month, year of manufacture or serial number, machines with the same model designation may have been fitted with different parts.

The list of compatible machines above should therefore always be checked against item 70 on the exploded diagram corresponding to your machine.
