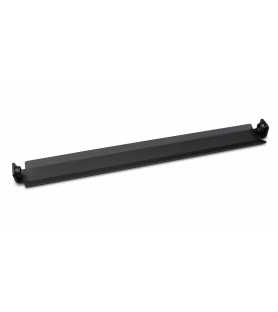

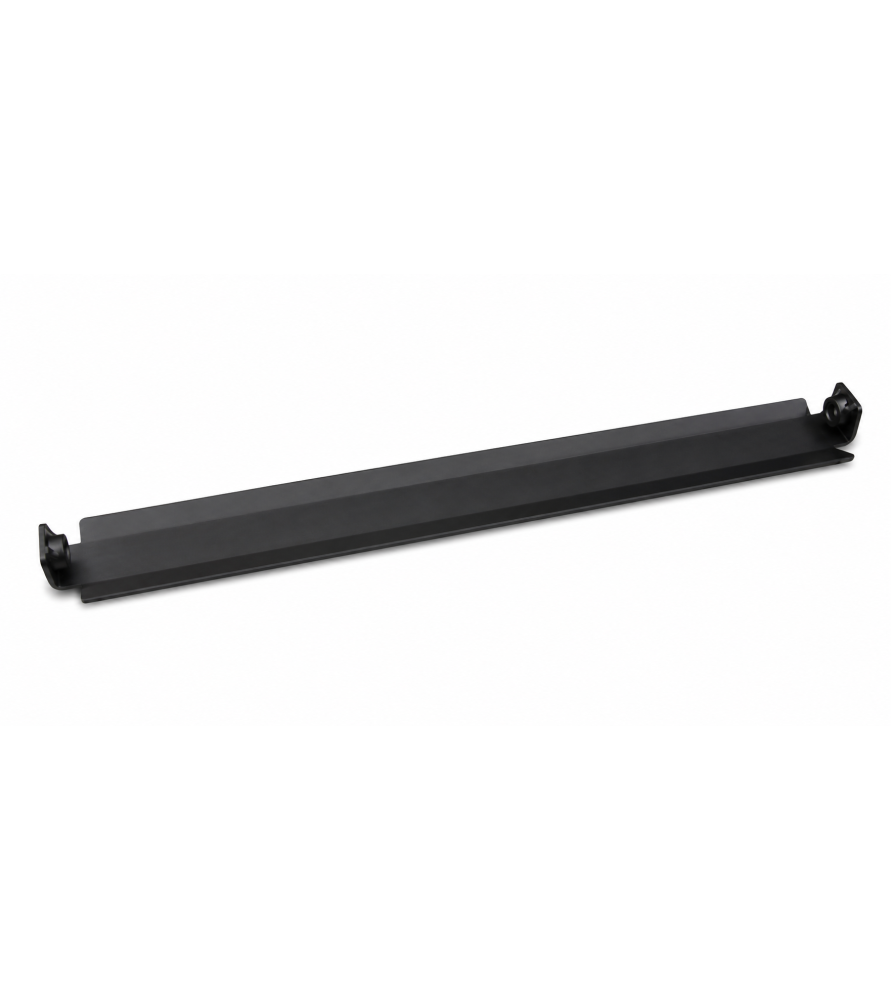

Chip deflector for Holzmann and Bernardo planer thicknessers

This chip deflector, item 45, is a replacement spare part designed for compatible Holzmann HOB305ABSSMW2 and Bernardo PT305DS planer thicknessers.

Located inside the machine, this deflector helps direct the wood chips produced during machining and facilitates their movement towards the chip extraction outlet.

A correctly installed deflector contributes to the proper operation of the chip evacuation system and helps reduce the accumulation or dispersion of wood chips inside the machine.

What is the function of the chip deflector item 45?

The main function of this chip deflector is to guide and redirect the chips generated by the cutterblock during planing and thicknessing operations.

It helps direct the chips efficiently towards the extraction system, contributing to better chip evacuation and efficient dust extraction.

When should the chip deflector be replaced?

The deflector should be replaced if it is broken, cracked, bent or otherwise damaged, or if its mounting points no longer allow it to remain securely in the correct position.

A damaged deflector may also result in poor chip evacuation, abnormal accumulation of wood chips inside the machine or reduced extraction efficiency.

Compatible machines

This chip deflector, item 45, is compatible in particular with the following machines:

• Holzmann HOB305ABSSMW2
• Bernardo PT305DS

Technical specifications

Important – Check compatibility before ordering

IMPORTANT: BEFORE PURCHASING, please make sure that this part is compatible with your machine.

Depending on the month, year of manufacture or serial number, machines with the same model designation may have been fitted with different parts.

The list of compatible machines above should therefore always be checked against item 45 on the exploded diagram corresponding to your machine.
