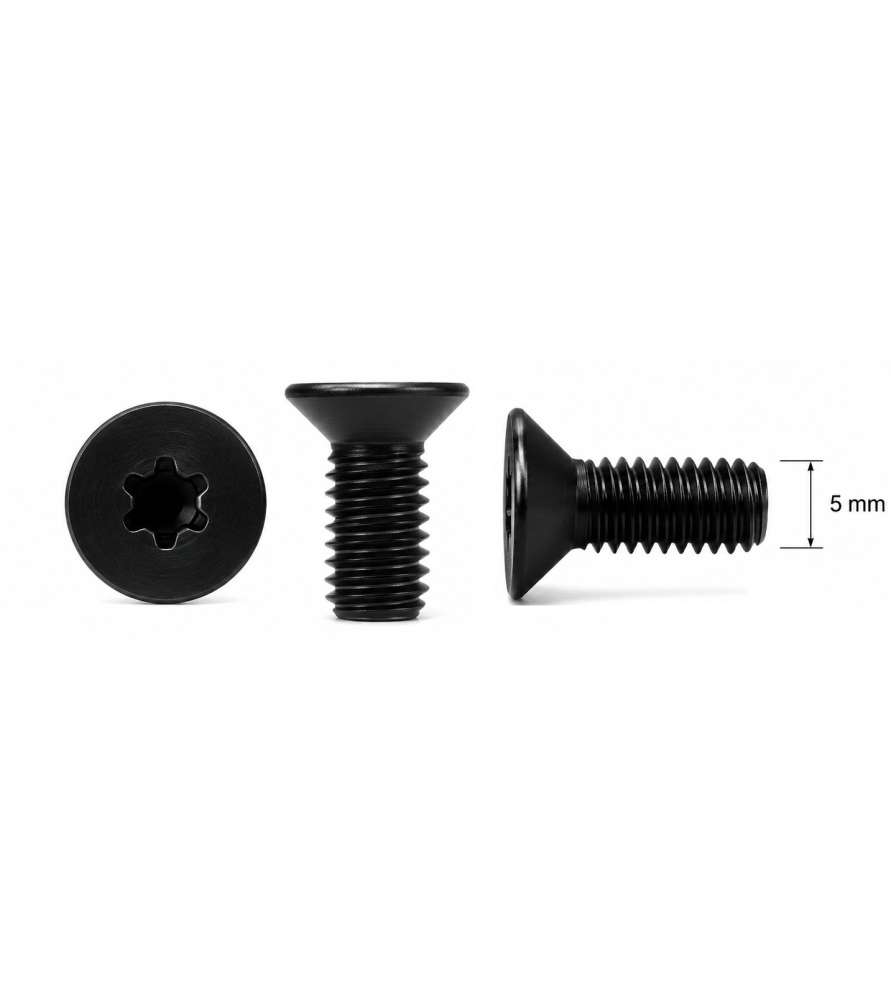

M5x10 fixing screw for carbide inserts

This M5x10 carbide insert fixing screw is a replacement part designed for the cutterblock of compatible planer thicknessers.

It is used to securely hold each carbide insert in its seat, ensuring that the insert remains correctly positioned while the cutterblock is rotating and machining the wood.

When carbide inserts are replaced or rotated, the fixing screws are regularly removed and refitted. Over time, the screw drive or thread may become damaged, particularly if the screw has been overtightened or an unsuitable tool has been used.

A damaged screw should be replaced to ensure safe and reliable fastening of the carbide insert.

What is the function of this carbide insert screw?

The M5x10 screw is designed to secure the carbide insert in the correct position on the cutterblock.

Correct tightening is essential to prevent the carbide insert from moving while the machine is operating.

When should the carbide insert fixing screw be replaced?

Replacement is recommended if the screw drive becomes damaged, the thread shows signs of wear or damage, the screw is deformed, or it no longer provides satisfactory tightening of the carbide insert.

Any lost or damaged screw should also be replaced rather than reusing a fixing screw that is no longer in good condition.

Compatible machines

This carbide insert fixing screw is compatible with the following machines:

• Holzmann HOB305ABSSMW2
• Bernardo PT305DS

Technical specifications

Important – Check compatibility before ordering

IMPORTANT: BEFORE PURCHASING, please make sure that this part is compatible with your machine.

Depending on the month, year of manufacture or serial number, machines with the same model designation may have been fitted with different parts.

The list of compatible machines above should therefore always be checked against the dimensions and the original screw fitted to your machine.
