15A overload protector for Holzmann and Bernardo planer thicknessers

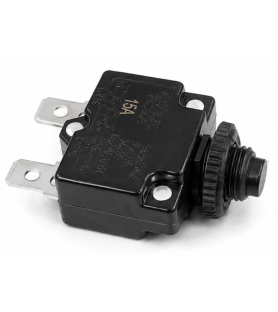

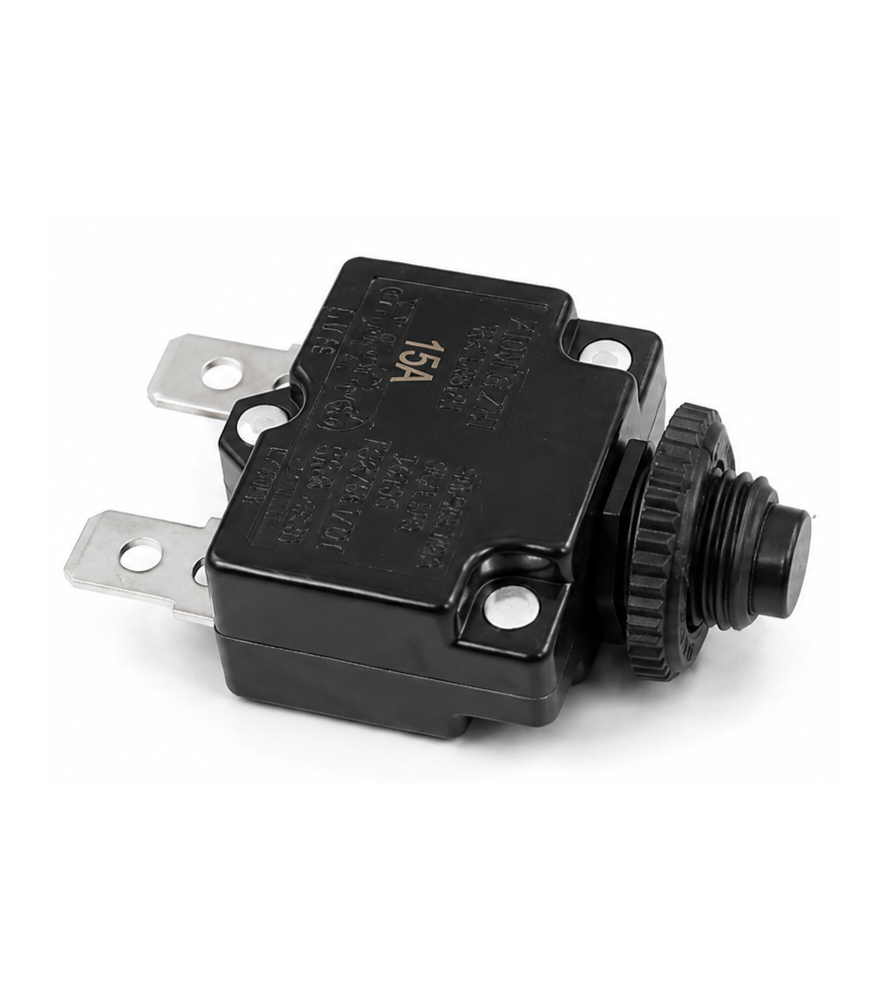

This overload protector, item 194, is a replacement part designed for several Holzmann and Bernardo planer thicknessers operating on 230V.

Rated at 15A, this electrical component trips when the current drawn by the machine becomes abnormally high. It therefore helps to protect the motor and electrical components against excessive current caused by an overload.

After the device has tripped and once the cause of the overload has been identified and corrected, the protector can be manually reset using its push button.

What is the function of the overload protector item 194?

The overload protector interrupts the electrical circuit when the current exceeds the permitted level of the device.

It helps protect the machine when abnormal operating conditions cause the motor to draw excessive current.

An overload may occur, for example, due to excessive cutting load, a mechanical blockage, a drive system problem or another fault causing excessive current consumption.

When should the overload protector be replaced?

The overload protector may need to be replaced if it can no longer be reset, trips abnormally or no longer allows current to pass even when there is no actual overload.

A faulty overload protector may cause:

• the machine to no longer start;
• repeated electrical cut-outs without an apparent overload;
• a reset button that no longer stays engaged;
• lack of electrical continuity through the component;
• nuisance tripping during normal operation.

Important: if the overload protector trips, this does not necessarily mean that the protector itself is faulty. Before replacing it, the cause of the overload should be investigated, such as excessive motor load, a blocked mechanism, a faulty belt or drive system, an electrical problem or excessive cutting load.

Compatible machines

This 15A overload protector, item 194, is compatible in particular with the following 230V machines:

• Holzmann HOB260ABS-230V
• Holzmann HOB305ABS-230V
• Holzmann HOB305ABSSMW2-230V
• Bernardo PT260-230V
• Bernardo PT260S-230V
• Bernardo PT305D-230V
• Bernardo PT305DS-230V

Technical specifications

Important – Check compatibility before ordering

IMPORTANT: BEFORE PURCHASING, please make sure that this part is compatible with your machine.

Depending on the month, year of manufacture or serial number, machines with the same model designation may have been fitted with different electrical components.

The list of compatible machines above should therefore always be checked against item 194, the 15A rating and the specifications of the overload protector originally fitted to your machine.
