Milling machine metal Bernardo KF10 - 230V

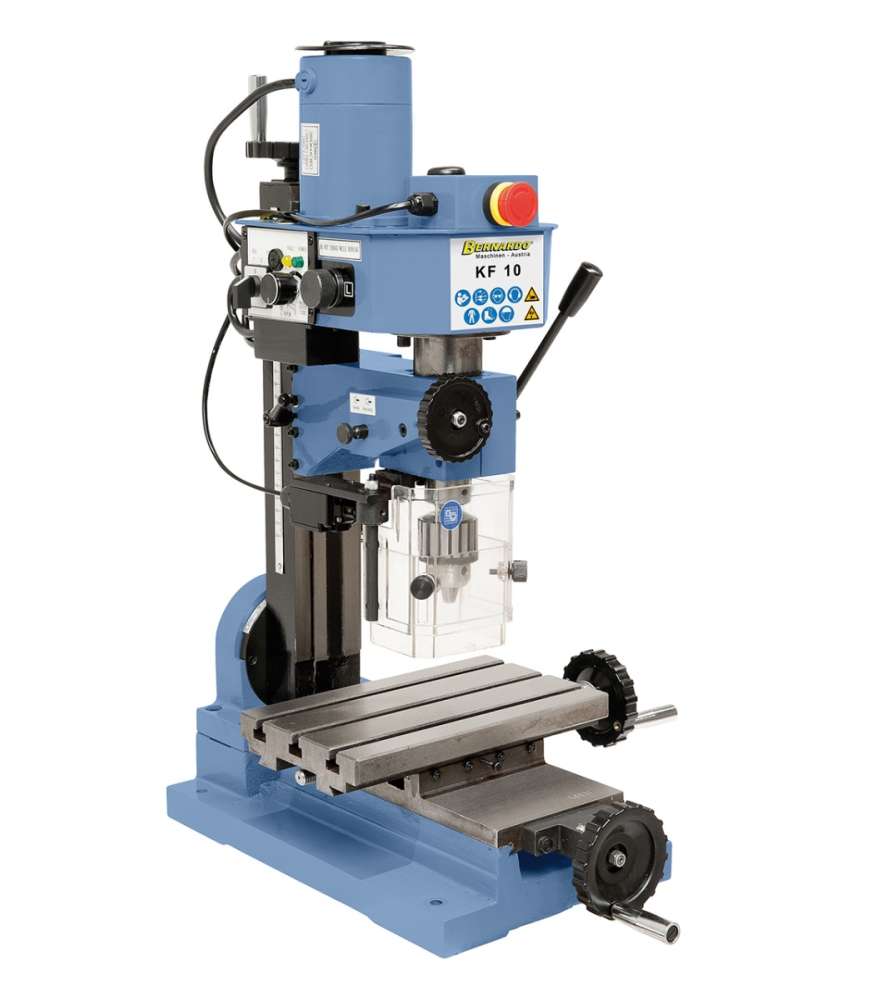

Milling and drilling metal machine Bernardo KF10 - 230V

Reference: BKF10-230V

624.17 €

Including €2.50 for ecotax

The compact construction of the KF 10 drilling and milling machine makes this model ideal for amateurs and craftsmen.

Quantity
Factory shipment, delivery within 10 to 12 days

Properties

  • Numerous application possibilities, such as face milling, slotting etc.
  • Wide speed range (2 steps) from 100 - 2000 rpm
  • Dovetail guiding in all axes, adjustable via gibs
  • Handwheel with scale allows spindle fine feed
  • Serial with right and left spindle rotation
  • Precise bearings ensure high concentricity of spindle
  • Electronic stepless drive for precise results
  • Scale allows easy read of drill depth
  • Solid and vibration-free grey cast-iron machine base

Technical specifications

  • Drilling capacity in steel : 10 mm
  • Face mill capacity max. : 20 mm
  • End mill capacity max. : 10 mm
  • Distance spindle to column : 140 mm
  • Distance spindle to table : 80 - 260 mm
  • Spindle stroke : 30 mm
  • Spindle speed, stepless : L= 100  - 1000 rpm H= 100 - 2000 rpm
  • Spindle taper : MT 2
  • Table size : 240 x 145 mm
  • Travel (x / y) : 80 / 130 mm
  • Height adjustment of mill head : 180 mm
  • Mill head tiltable : -45° to +45°
  • T-slot size : 8 mm
  • Motor power output S1 100% : 0,15 kW
  • Motor power input S6 40% : 0,25 kW
  • Voltage : 230 V
  • Machine dimensions (W x D x H) : 420 x 343 x 720 mm
  • Weight approx. : 45 kg

Standard accessories

  • Drill chuck 1 - 10 mm / B 12
  • Drill chuck arbor MT 2 / B 12
  • Drawbar M 10
  • Height adjustable protective cover
  • 4 T-nuts M 6
  • Tools
