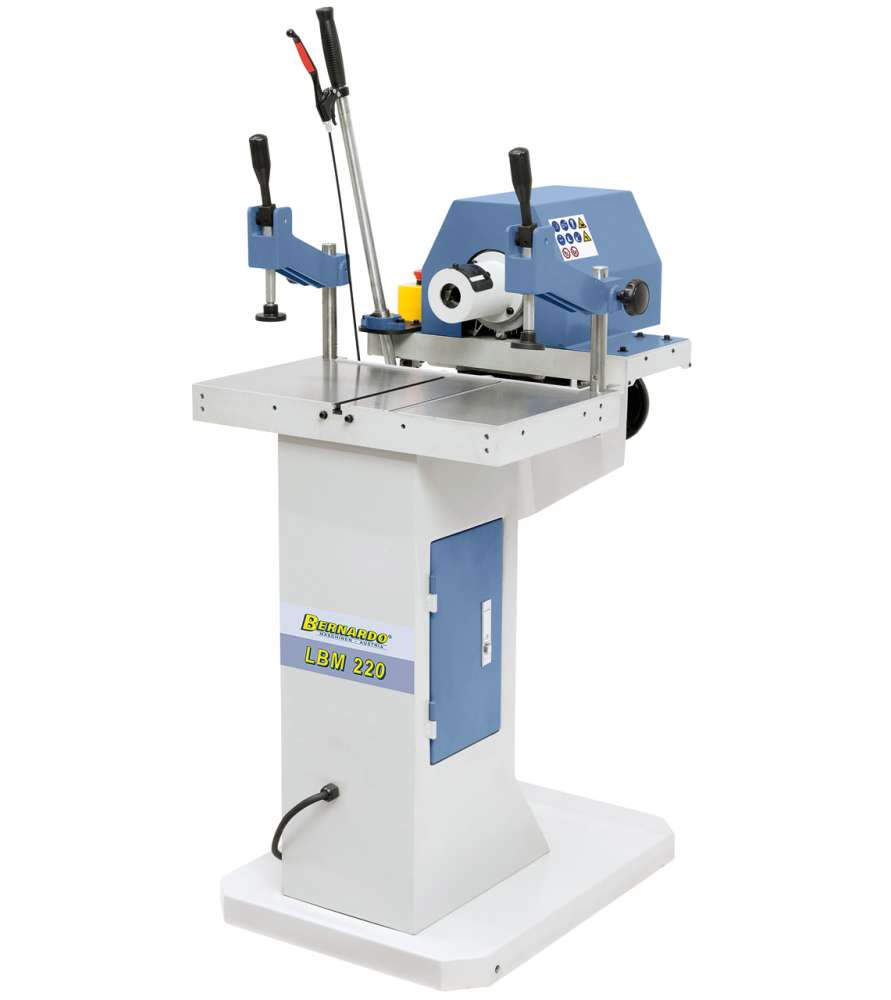

Bernardo LBM 220 mortiser: a robust and precise woodworking machine

The Bernardo LBM 220 - 400 V mortiser is a professional woodworking machine designed for mortising, multiple drilling and joinery operations. Thanks to its rigid steel construction and large precision-ground cast iron table, it provides excellent stability and high machining accuracy.

This machine is perfectly suited for woodworking, cabinetmaking, furniture manufacturing, door and window production workshops looking for a reliable solution for slot mortising and precision drilling operations.

Heavy-duty construction reducing vibrations

The Bernardo LBM 220 features a particularly rigid welded steel frame designed to minimize vibrations during machining operations. This construction improves both operator comfort and mortising precision.

Its large cast iron table ensures excellent workpiece support, including when machining long components such as doors or furniture elements.

The standard table extensions supplied with the machine allow safe and stable machining of large workpieces. ([bernardo-shop.com](https://www.bernardo-shop.com/en/mortiser-bernardo-lbm-220-400-v.html?utm_source=chatgpt.com))

A mortising machine designed for demanding applications

This wood mortising machine is equipped with a powerful 3 kW three-phase motor, providing high performance for intensive machining operations in various wood species.

The machine includes:

- two spindle speeds: 1400 and 2800 rpm
- a 0 - 20 mm Westcott chuck
- forward and reverse rotation
- head height adjustment by handwheel
- precision roller-guided movements
- two eccentric hold-down clamps
- adjustable fence for angled drilling operations

The standard drilling unit with 16 / 20 / 22 / 25 mm spacing also simplifies repetitive multiple drilling operations. ([bernardo-shop.com](https://www.bernardo-shop.com/en/mortiser-bernardo-lbm-220-400-v.html?utm_source=chatgpt.com))

Ideal for mortising and woodworking joints

The LBM 220 is suitable for a wide range of woodworking applications:

- traditional mortises
- mortise and tenon joints
- aligned drilling operations
- door manufacturing
- window production
- furniture making
- cabinetmaking and joinery work

Thanks to its large drilling depth and generous movement capacity, this machine can efficiently machine workpieces of various sizes. ([bernardo-shop.com](https://www.bernardo-shop.com/en/mortiser-bernardo-lbm-220-400-v.html?utm_source=chatgpt.com))

Standard equipment supplied with the Bernardo LBM 220

- table extensions and supports
- 4-position drilling unit 16 / 20 / 22 / 25 mm
- Westcott chuck 0 - 20 mm
- 9.5 mm square chisel mortiser bit
- 2 eccentric hold-down clamps
- adjustable fence with stop
- forward / reverse rotation
- 4 bushings for mortising chisels
- stand with tool storage

Technical specifications

Table dimensions: 570 x 300 mm

Max. drilling depth: 155 mm

Drilling width: 300 mm

Height adjustment: 160 mm

Speeds: 1400 / 2800 rpm

Westcott chuck: 0 - 20 mm

Motor power S1: 3 kW

Power supply: 400 V three-phase

Machine dimensions: 570 x 950 x 1340 mm

Weight: approx. 140 kg

The table extensions provide increased support capacity for machining long wooden workpieces. ([bernardo-shop.com](https://www.bernardo-shop.com/en/mortiser-bernardo-lbm-220-400-v.html?utm_source=chatgpt.com))

Why choose the Bernardo LBM 220 mortiser?

The Bernardo LBM 220 offers an excellent balance between power, precision and machining capacity. Its robust construction, complete equipment and versatility make it an ideal solution for workshops looking for a reliable mortising machine capable of handling both small parts and large woodworking components.
