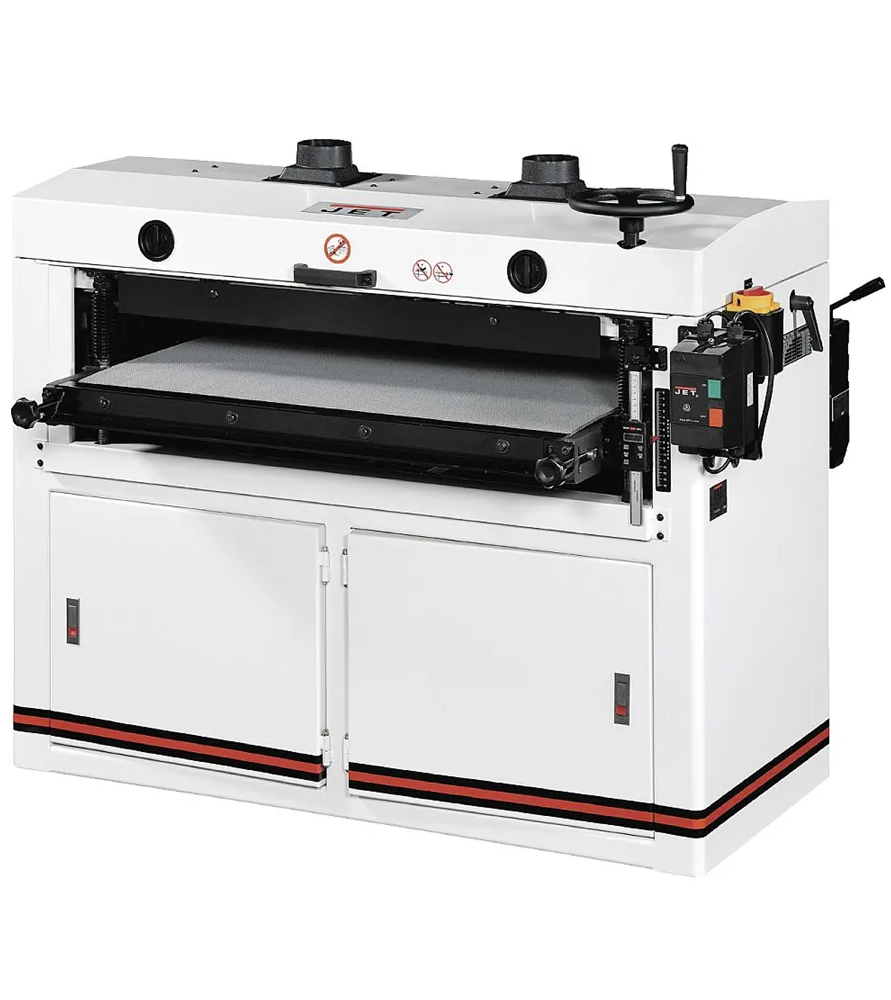

The JET DDS-237 sander is a robust and powerful machine offering the discerning user and the craftsman all the advantages of a wide belt sander in a minimum of space.
Seriously and precisely manufactured, it is equipped with 2 powerful and robust sanding cylinders!
The latter allowing the mixing of abrasives (roughing and finishing). The advance of the wood is made by a belt driven by a powerful gear motor! 2 wood feed speeds, 2m or 3m/min allow both series and precision work. The JET double cylinder calibrating sander has some pleasant surprises in store for you.
General description of the JET DDS-237 double cylinder sander:
Precise adjustment of the rear roller for adjusting the sanding thickness.
Possibility of using 75 mm and 100 mm wide sanding belts.
The training mat is mounted with 4 oversized bearings.
The 2-speed drive gear makes it possible to adapt to different woods.
The JET DDS-237 twin drum sander comes with:
2 x 100mm suction nozzles
Closed plinth
80 grit sanding belt (pre-installed)
100 grit sanding belt (pre-installed)
height crank
Manual
List of pieces
Technical characteristics of the JET DDS-237 double drum sander:
Power S6 / S1: 400 V 8.55 / 5.55 CV
Max thickness : 133mm
Min thickness : 0.8mm
min length : 230mm
Max width : 940mm
Sanding cylinder ø: 2 x ø152 mm x 940 mm
Rotation speed: 1400 rpm
Sanding belt width: 75 mm or 100 mm
Feed rate: 2 or 3 m/min.
Suction nozzle: 2 x ø100 mm
Dimensions (LxWxH): 1090x1420x1090mm
Weight: 440kg
