An important recommendation from Probois for many woodworking machines, such as this combination machine :

Before starting up, always check the inside of your machine, make sure the belts are correctly installed, tighten the bolts, grease the tables, etc., as the various transport procedures cause vibrations.

Always use a 2.5 mm² wire extension cord.

The extension cord must not exceed 10 meters and must not be coiled.

The use of reels, power strips, or multi-sockets is PROHIBITED.

Install an electrical meter with special machine start fuses of at least 16A.

Have a compliant electrical meter with neutral and ground connections.

Always work with a dust collector for your health and to maintain the machine's warranty.

Always grease cast iron tables with wood lubricant.

Always work with the safety guards in place.

Do not work with dull or blunt blades; this can damage the mechanism, the planer feed, or break the belt.

The machine won't start? The chip ejection cover is probably incorrectly installed on the jointer/planer side; it's a safety feature!

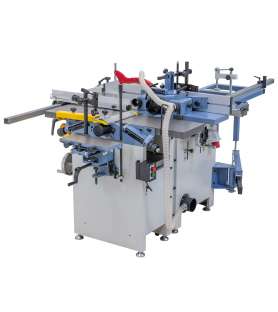

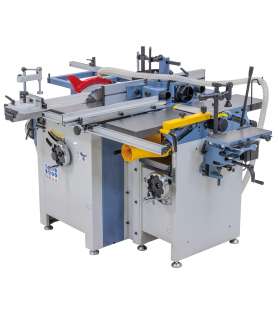

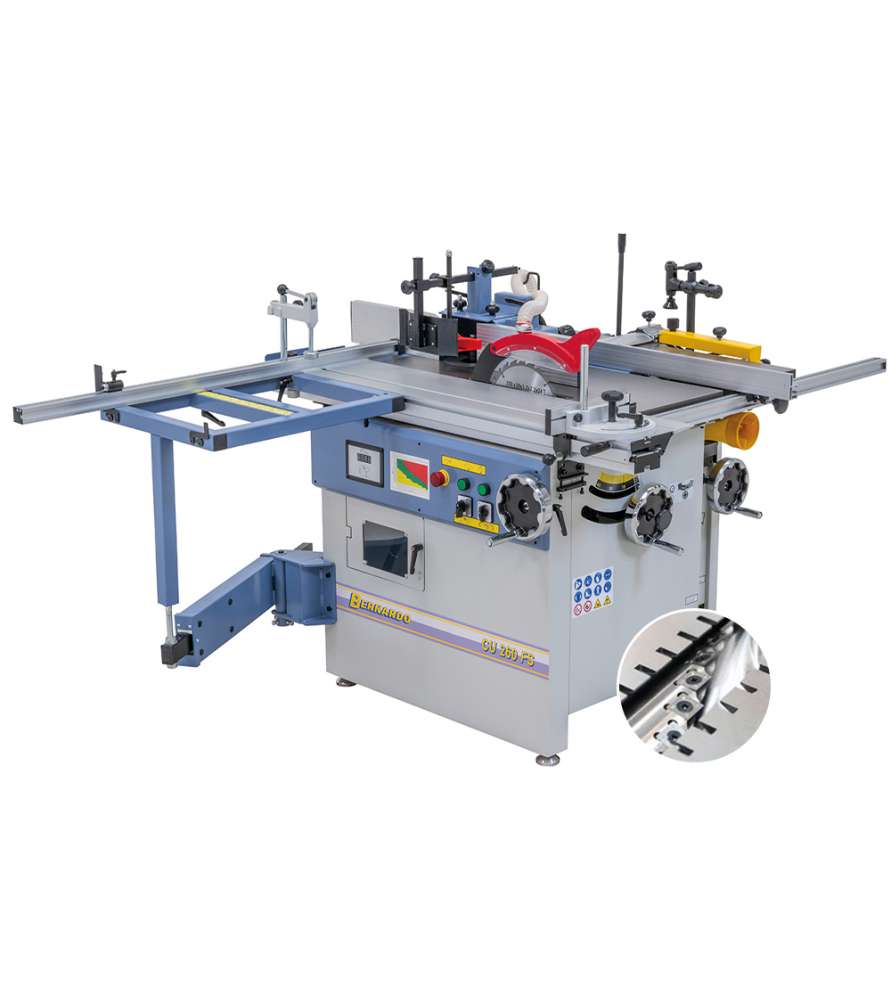

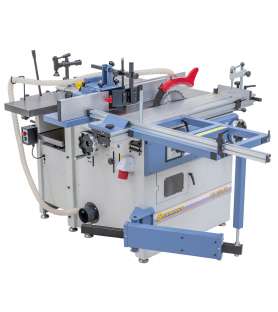

Advantages of the Universal combined machine Bernardo CU260FS with helical shaft - 400V :

• Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
• Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
• The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
• Optional with mortising unit (16 mm capacity) available
• Quick and easy readout of spindle speed on digital display
• Solid moulding fence features finely adjustable aluminium fence rails
• Machine body consists of torsion-free combination of steel and grey cast iron
• Smooth running, precise sliding table features hardened, prism-shaped guides

The Universal combined machine Bernardo CU260FS with helical shaft - 400V comes with :

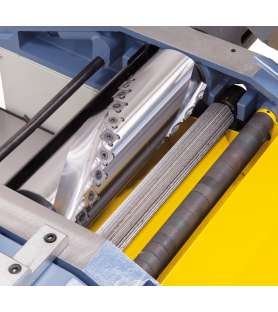

• Spiral cutter head with 24 pcs. TCT-blades
• Replacement TCT-blades (5 pcs.)
• Planer fence
• Downholder
• Mitre fence
• Moulding fence
• Protective cover with dust extraction outlet
• Connector tube with Y-piece
• Aluminium fence with stop
• Sawblade 250 x 3,2 x 30 mm / 24T
• Digital speed indication of moulding spindle
• Push stick
• Tools

Technical specifications of the Universal combined machine Bernardo CU260FS with helical shaft - 400V :

Dressing slicer

• Dressing width : 250 mm
• Table length : 1090 mm
• Table height : 865 mm
• Planer shaft speed : 4000 rpm
• HM turning plates : 24 pcs
• Planer shaft diameter : 75 mm
• Dressing : 720 x 130mm
• Swivel dressing stop : 90° to 45°
• Maximum chip acceptance : 5 mm
• S1 engine output 100% : 2,0 kW (2,7 hp)
• Motor input power S6 40% : 2.8 kW (2.5 hp)

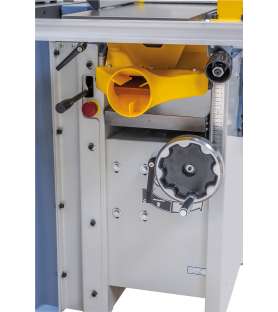

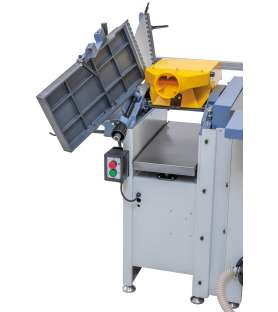

Planer

• Table length : 600mm
• Planing width: 250 mm
• Thickness flow, min/max. : 5 - 185mm
• Maximum chip acceptance : 1.8 mm
• feed rate : 8 m/min
• Extraction port Ø : 100 mm

Long hole drilling device (available as an option)

• Drilling table size : 370 x 150 mm
• Westcott drill chuck : 0-16mm
• Max. drilling depth : 90mm
• Drilling width: 160mm
• height adjustment : 85mm

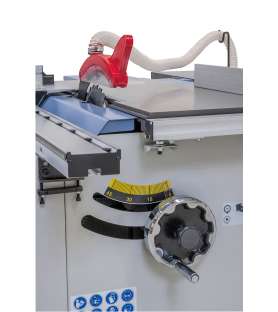

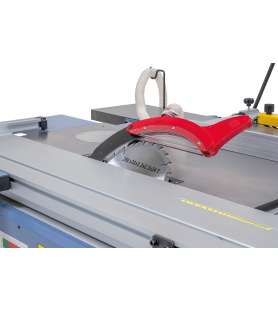

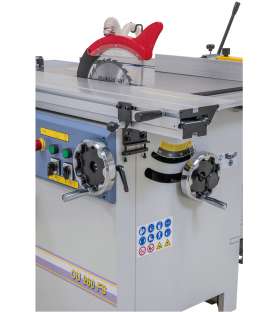

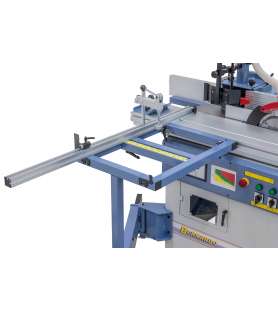

Circular saw

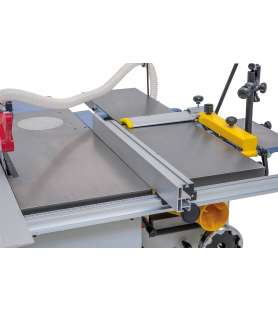

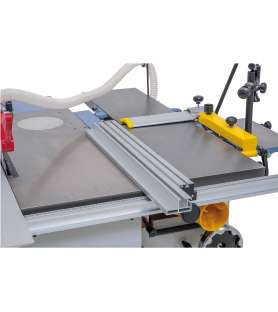

• Table dimensions : 900 x 345 mm
• table height : 865 mm
• Cantilever table : 600 x 460

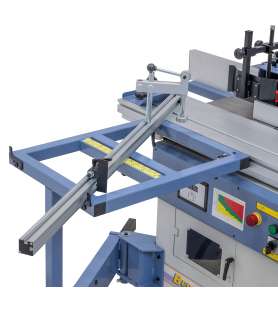

• format table : 1600 x 240 mm
• Trim length : 1600 mm
• Max. saw blade diameter : 250 x 30 mm
• Max. cutting height 90°/45° : 80/60 mm
• Cutting width at the parallel stop : 910 mm
• Main saw blade speed : 4750 rpm
• Extraction port Ø : 100 mm
• S1 engine output 100% : 2.2 kW (1.5 hp)
• Motor input power S6 40% : 3,0 kW (4,0 hp)

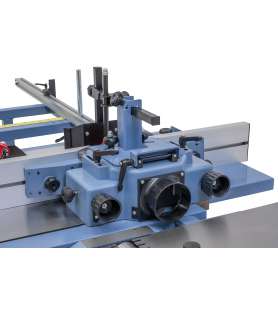

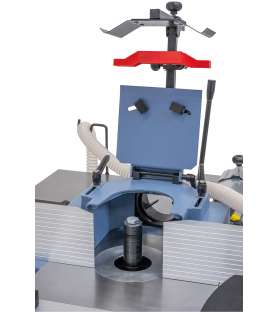

Spindle moulder

• Spindle diameter : 30mm
• Height adjustment : 110mm
• Milling table opening : 170mm
• Clamping length : 90mm
• Max. tool diameter :
• - when profiling : 150mm
• - when cutting cones : 150mm
• Spindle speed: 1400/4000/6000/8000 rpm
• S1 engine output 100% : 1,5 kW (2,0 hp)
• Motor input power S6 40% : 2.1 kW (2.8 hp)
• voltage : 400 V
• Machine dimensions (W x D x H) : 1600 x 2340 x 1150 mm
