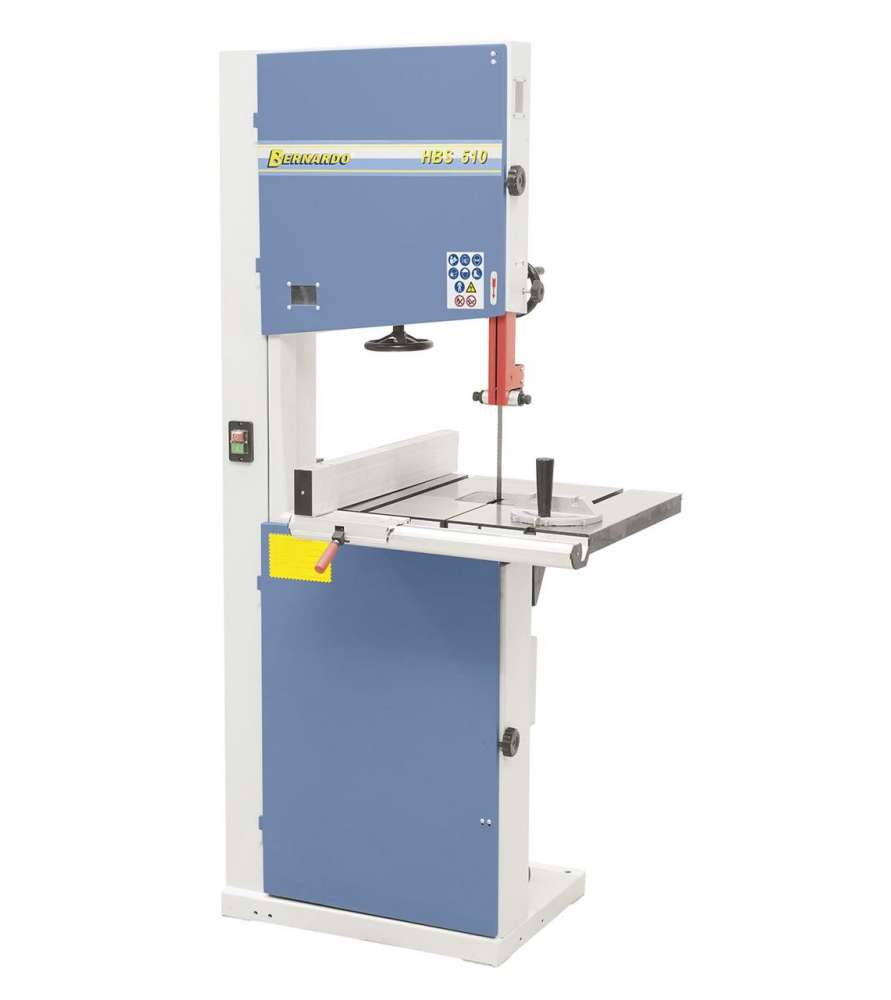

This Bernardo HBS510 band saw has a powerful, quiet and quiet asynchronous motor!

The band saw is also equipped with multiple options such as a welded frame, rigid and robust, a pierced base for fixing the machine to the ground and others.

The advantages of the HBS510 band saw:

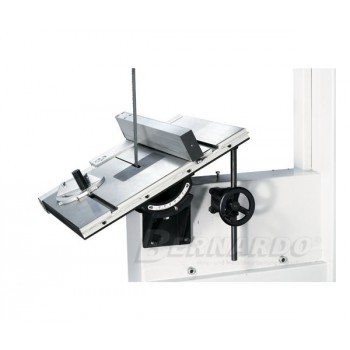

• Cast iron table tilting from 0 to 45 °.
• Large aluminum table cradle.
• Double rack cradle.

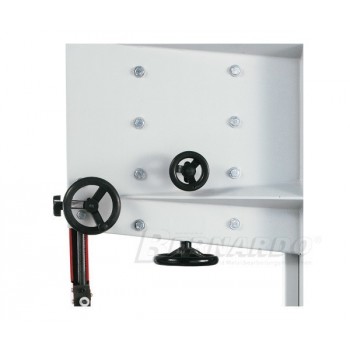

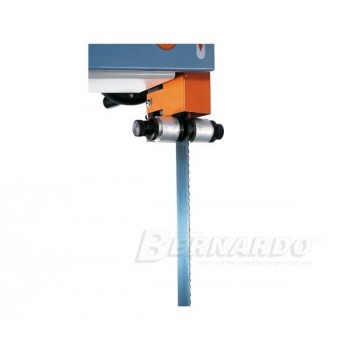

• Upper and lower roller blade guide, rack-mounted upper blade guide and crank height adjustment.
• Adjusting blade tension by a crank.
• Quick release handle for the blade.

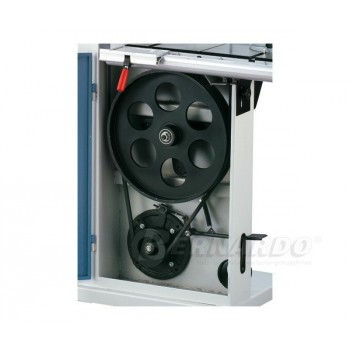

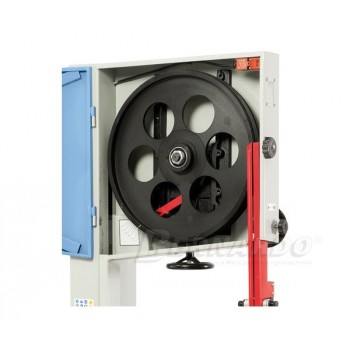

• 2 flywheels ø 500 mm covered with a rubber band.

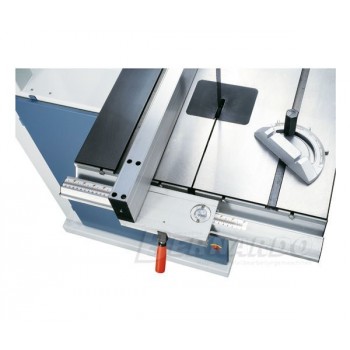

• Longitudinal cutting guide with reading magnifying glass for the graduation and quick clamping handle, graduation on each side of the blade.
• Adjustable miter guide.

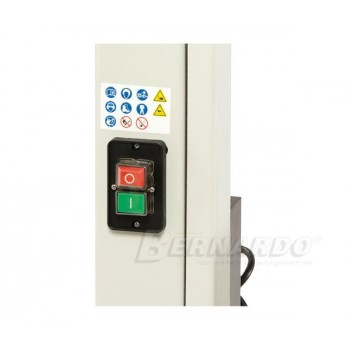

• Security contactor on each door.

Bernardo HBS510 band saw specifications:

• Cutting width: 480 mm
• Cutting height: 305 mm
• Cutting speed: 600m / min
• Table dimensions: 590 x 490 mm
• Wheel diameter: 500 mm
• Ribbon length: 3500 mm
• Tilting of the table: 0 - 45 °
• Engine power: 2.2 KW - 400V
• Suction nozzle: 100 mm
• Weight: about 220 kg
