Saw Bernardo Basic 3200 with trolley 3200 mm - 400V
  • Saw Bernardo Basic 3200 with trolley 3200 mm - 400V
  • Saw Bernardo Basic 3200 with trolley 3200 mm - 400V
  • Saw Bernardo Basic 3200 with trolley 3200 mm - 400V

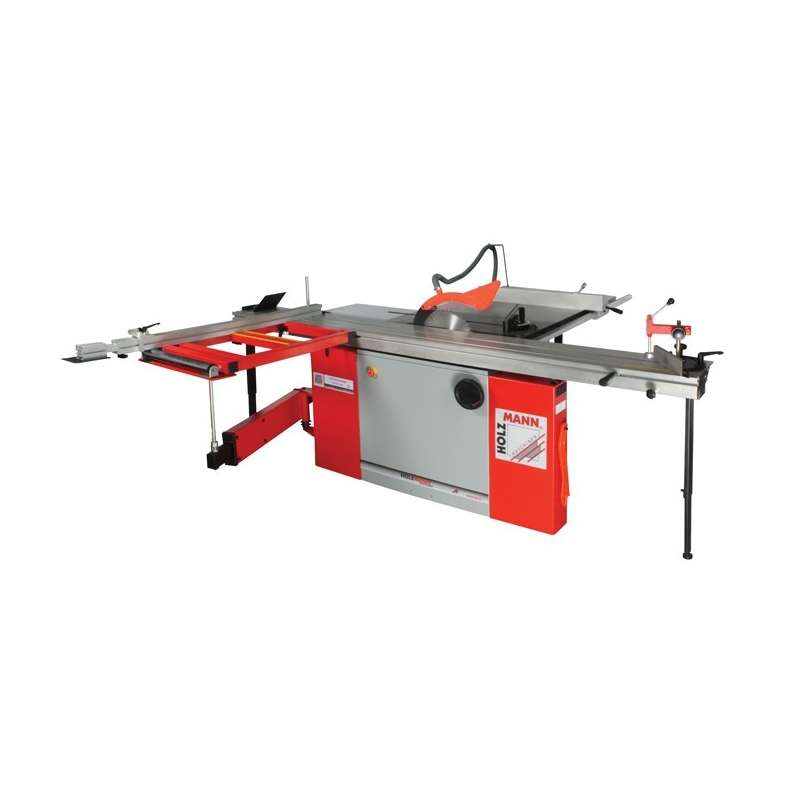

Saw format Holzmann TS315VF with trolley 3200 mm

€4,397.50
4,195.00 € Save €200.00

Including €2.50 for ecotax (not impacted by the discount)

Reference: HTS315VF-3200

The Holzmann TS315VF format saw is a powerful machine for long-distance sawing.

Engine voltage
Quantity
in stock, delivery within 4 to 6 days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The blade-mounted aluminum carriage and the powerful engine of the Holzmann TS315VF format saw will allow you to work pro!

The blade carriage also includes a corner guide that slides into the slot of the carriage and locks in that position.

Advantages of the Holzmann TS315VF format saw:

  • The scorer placed in front of the blade facilitates the cutting of melamine panels and avoids the bursting of surface coatings.
  • Side table extensions increase cutting capacity and maintain large panels.
  • The corner guide has stops at 90 and 45 °.
  • The parallel guide is easily locked by a single lever and is equipped with a micrometer screw adjustment.
  • 1 presser blocks the pieces in support of the table.
  • The aluminum profile guide adjusts according to the cutting angle and includes an extension up to 2260 m / m.
  • The engine block is perfectly maintained in a tilting cast iron frame and increases working precision.
  • The cart extension is equipped with a roller for easy handling of long pieces.

Machine Delivered with:
Telescopic Ruler + Stopper + Roller - Angle Guide - Parallel Guide - Saw Blade 315 x 3.0 x 30 mm / 40T, Scoring Machine, Hood protection with dust extractor outlet, connection hose with Y-piece, table extension, sliding aluminum carriage, push-button, tools.

Specifications of the Holzmann TS315VF format saw:

  • Engine 400V - S1 100%: 3.8 kW (5.1 HP)
  • Engine 400V - S6 40%: 5.3 kW (7.2 HP)
  • Main blade Ø 315 - al.30
  • Scoring blade 2xØ 100 - al.20
  • Main blade speed: 4500 rpm.
  • Scoring blade speed: 8500 rpm
  • Haut.max. cutting at 90 °: 100 m / m
  • Haut.max. cutting at 45 °: 80 m / m
  • Cast iron table dimension: 800 x 380 m / m
  • Table extension length: 800 x 880 m / m
  • Dimension rear extension: 500 X 310 m / m
  • Trolley dimensions: 3200 x 270 m / m
  • Trolley frame size: 830 x 520 m / m
  • Cutting width on parallel guide: 1200 m / m
  • Weight: 370 kg
  • Machine dimensions: 3200 x 2700 x 1140 mm
HTS315VF-3200-230V
1 Item

Data sheet

Specific References

EAN13
9120039904535
