A dust collector is essential in woodworking and carpentry, it sucks dust and wood chips, protects your machine ensuring its guarantee and above all protects the health of the user!

But how to make the right choice of dust collector?
The more the dust collector has a high suction flow, the better it performs. The higher the airflow, the more suitable and powerful the motor is.
For small models of woodworking machines such as planer-jointers up to 200 mm wide, small band saws, etc. .. the choice can be made on an entry-level vacuum cleaner.
On the other hand, the larger the size of the machines on which the vacuum cleaner is to be connected, the more it will be necessary to choose a dust collector with a high power. suction. For example, a planer-jointer with a width of 300 mm produces large wood chips and in large quantities, if the vacuum cleaner is undersized, unsuitable, he will not be able to extract what the machine asks him to do. the stuffing ensured, let alone the damage to the two machines!

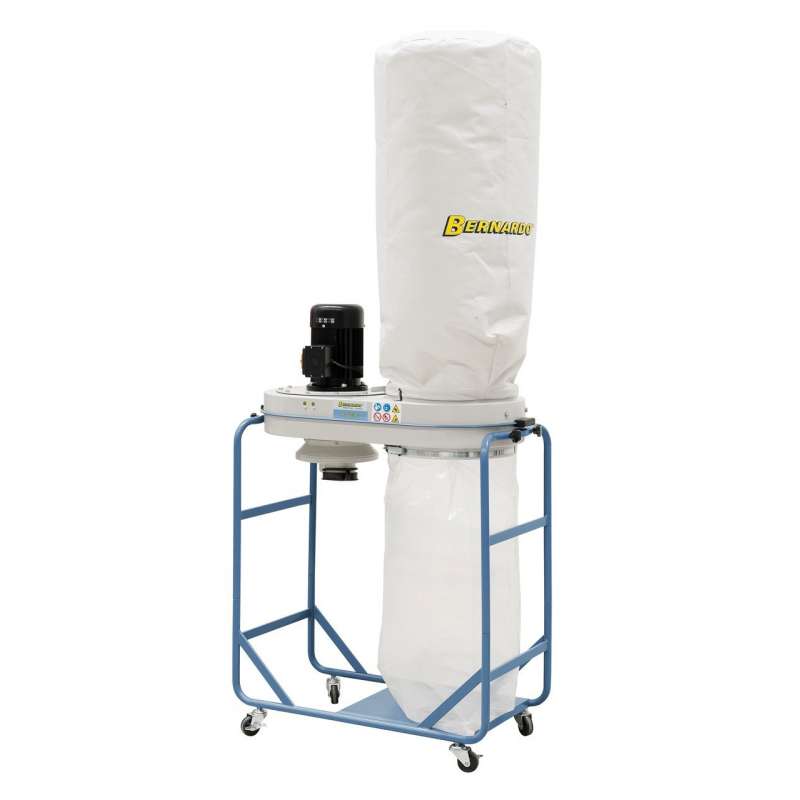

Take a good look at the characteristics of this dust collector Bernardo FT200N!

General description:

• Its powerful engine guarantees constant dust extraction.
• High comfort thanks to the quick bag change system.
• A high quality powder coating creates a scratch resistant surface.
• Steel turbine resistant to the suction of small pieces of wood.
• Modern design.

Technical specifications of the dust collector Bernardo FT200N:

• Suction flow rate: 2000 m³ / h
• Filtration area: 1.83 m²
• Maximum depression: 1800 Pa
• ø suction nozzle: 2 x 100 mm
• Bag capacity: 110 liters
• Idling speed: 2950 rpm
• Sound volume: 87 dB
• Continuous power S1 100%: 1.5 kW (2.0 HP)
• Power S6 40%: 2.1 kW (2.8 HP)
• Voltage: 400 V / 50 Hz
• Machine dimensions (W x D x H): 1000 x 500 x 2100 mm
• Weight approx. : 39 kg

The dust collector Bernardo FT200N comes with:

• Filter bag
• Recovery bag
• Forklift
