695 x 10 mm flat drive belt, position 151, for Holzmann HOB260ABS, HOB305ABS, HOB305ABSSMW2 and Bernardo PT260, PT260S, PT305D and PT305DS 230V planer thicknessers.

This flat transmission belt is a replacement spare part designed for compatible machines.

Dimensions: 695 x 10 mm
Type: flat belt
Position: 151

Marker pulley 154 for planer thicknesser Bernardo PT260, PT305D and Holzmann HOB260ABS

Contactor QKS8 for different Scheppach and Kity band saws

Guide only for Holzmann HOB260ABS and Bernardo PT305D jointer and planer

Chip ejection housing for planer jointer

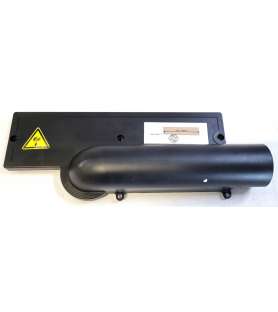

Suction housing and chain protector for Holzmann HOB260ABS and Bernardo PT305D thicknesser planer

940J5 (370J) motor drive belt, position 116, for Holzmann HOB260ABS, HOB305ABS, HOB305ABSSMW2 and Bernardo PT260, PT260S, PT305D and PT305DS 230V planer thicknessers.

This 5-rib Poly-V drive belt transmits power from the motor to the drive mechanism on compatible machines.

Belt marking: 940J5 / 370J
Number of ribs: 5
Position: 116

520J3 (205J) dust extraction turbine drive belt, position 126, for Holzmann HOB260ABS, HOB305ABS, HOB305ABSSMW2 and Bernardo PT260, PT260S, PT305D and PT305DS 230V planer thicknessers.

This 3-rib Poly-V belt drives the turbine of the integrated dust extraction system on compatible machines.

Belt marking: 520J3 (205J)
Number of ribs: 3
Position: 126

Motor pulley, position 113, references 10002928 / 10017609, for Holzmann HOB260ABS, HOB305ABS, HOB305ABSSMW2 and Bernardo PT260, PT260S, PT305D and PT305DS planer thicknessers.

This motor drive pulley transmits the motor rotation to the machine's drive system.

References: 10002928 / 10017609
Position: 113
Type: motor pulley

Chain drive pinion for planer thicknesser Holzmann HOB260ABS and Bernardo PT260 or Bernardo PT305D

KJD17B 230V switch, position 106, for Holzmann HOB260ABS and HOB305ABS planer thicknessers and Bernardo PT260, PT260S, PT305D and PT305DS models.

This replacement switch is designed to replace a faulty, damaged or worn switch that no longer operates the planer thicknesser correctly.

Part number: HPD10000036

This emergency stop switch is a replacement part designed for several Holzmann and Bernardo 230V planer thicknessers.

It allows the machine to be stopped quickly when required and is an important component of the machine's electrical control and safety system.

Planer tension spring for different woodworking machines Kity, Scheppach and Woodster

Planer shaft protector for Bernardo PT305D

22-link drive chain, position 158, for Holzmann HOB305ABS, HOB305ABSSMW2 and Bernardo PT305D, PT305DS planer thicknessers.

This chain is a replacement spare part designed for the transmission mechanism of compatible machines.

Number of links: 22
Position: 158

Wire start capacitor 40µF - 450V

Mark fan 120 for Holzmann HOB260ABS and Bernardo PT260/Bernardo PT305D planer jointer

Bearing mark 122 for planer jointer Bernardo PT260, Holzmann HOB260ABS

Jointer guide support mark 170

Axis dedicated to the drive pulley for various Kity and Scheppach woodworking machines

Dust port for the filter bag for planer and thicknesser Bernardo PT260, PT305D or Holzmann HOB260ABS.

Planing guide support reference 10006051 for planer thicknesser with integrated suction

Cotton filter bag for planer and thicknesser Holzmann HOB305ABS(SMW2) and Bernardo PT305D(S)

53-link drive chain, position 82, for Holzmann HOB305ABS and Holzmann HOB305ABSSMW2 planer thicknessers.

This chain is a replacement spare part designed for the transmission mechanism of compatible machines.

Number of links: 53
Holzmann part number: 10017602

This M5x10 fixing screw is designed to secure the carbide inserts on the cutterblock of Holzmann HOB305ABSSMW2 and Bernardo PT305DS planer thicknessers.

Ideal replacement part for a lost screw, damaged drive recess or worn thread when replacing or rotating carbide inserts.

This chip deflector, item 45, is a replacement part designed for Holzmann HOB305ABSSMW2 and Bernardo PT305DS planer thicknessers.

Installed inside the machine, it helps guide and deflect wood chips towards the extraction system for efficient chip removal.

This infeed roller, item 52, is a replacement part designed for Holzmann HOB305ABSSMW2 and Bernardo PT305DS planer thicknessers.

Located at the infeed side of the thicknesser, it ensures the smooth and consistent feeding of the workpiece towards the cutterblock during thicknessing operations.

This outfeed roller, item 70, is a replacement part designed for Holzmann HOB305ABSSMW2 and Bernardo PT305DS planer thicknessers.

Located after the cutterblock, it ensures the smooth and consistent feeding of the workpiece towards the exit of the thicknesser after machining.

This thicknesser adjustment handwheel, item 96, is a replacement part designed for Holzmann HOB305ABSSMW2 and Bernardo PT305DS planer thicknessers.

It operates the thicknesser table height adjustment mechanism, allowing the required workpiece thickness to be set for thicknessing operations.

This 15A overload protector, item 194, is a replacement part designed for several Holzmann and Bernardo 230V planer thicknessers.

This electrical safety device cuts the power supply in the event of an overload or excessive current, helping to protect the motor and the machine's electrical circuit.
