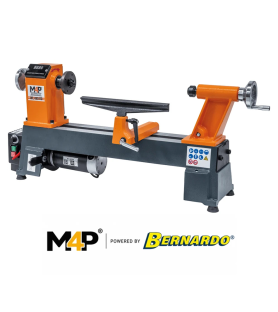

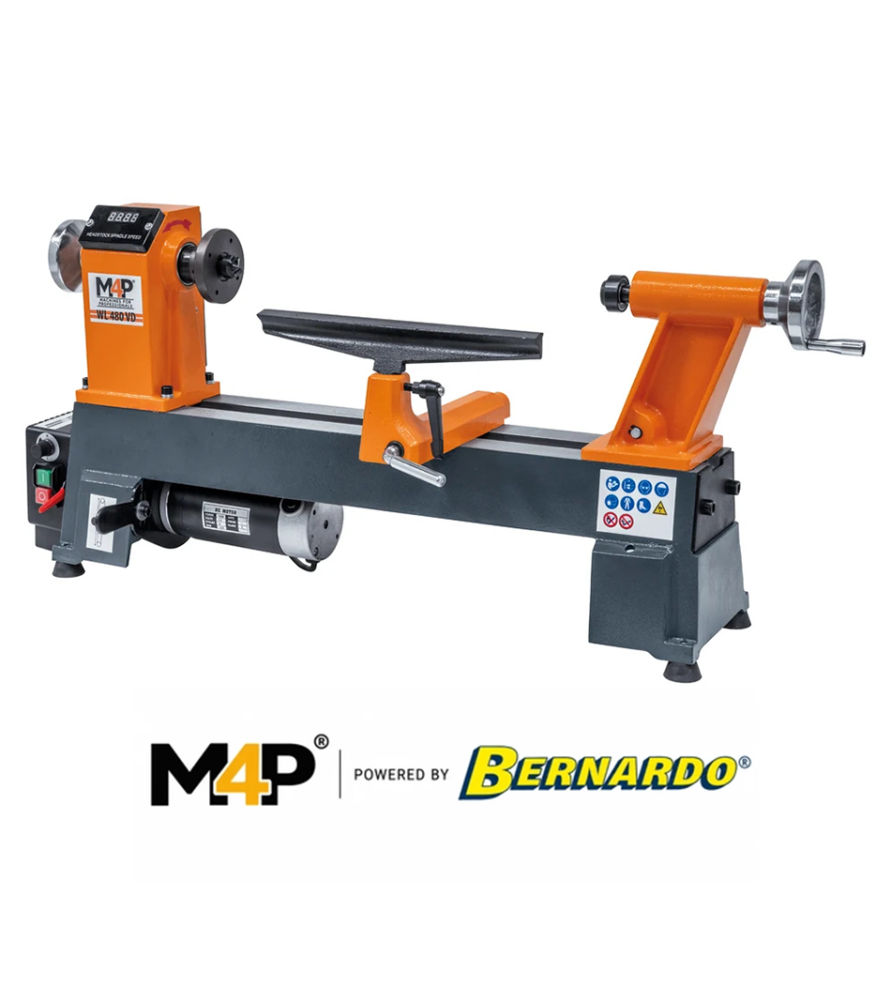

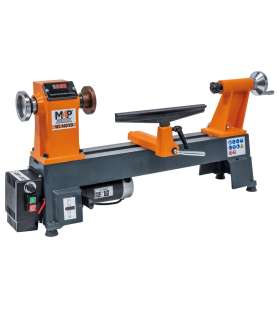

M4P WL480VD 750W Wood Lathe – A Compact and Versatile Machine for Woodturning Enthusiasts

The M4P WL480VD 750W wood lathe is designed for DIY enthusiasts, hobbyists and woodturners looking for a compact, stable and easy-to-use machine.

Part of the M4P range offered by Bernardo, this wood lathe features a robust construction with a grey cast iron bed, headstock and tailstock. This design helps reduce vibrations during operation and provides a stable foundation for accurate woodturning.

Powered by a 750W single-phase motor rated for continuous S1 operation, the WL480VD is suitable for producing a wide variety of wooden objects, including tool handles, furniture legs, decorative pieces, small bowls and cylindrical components.

Its electronic variable speed control allows the spindle speed to be adjusted according to the size of the workpiece, the type of wood and the turning operation.

With a speed range of 300 to 3700 rpm, the M4P WL480VD provides flexibility for both initial shaping and finishing operations.

The integrated digital speed display makes it easy to monitor the selected spindle speed.

Heavy-Duty Cast Iron Construction for Greater Stability

Stability is essential for achieving accurate and consistent results when turning wood.

The M4P WL480VD features a grey cast iron bed, headstock and tailstock.

Cast iron provides rigidity and mass, helping to absorb vibrations generated by rotating workpieces.

This construction improves working comfort, particularly when using woodturning gouges for roughing, shaping and profiling.

The spindle is supported by precision bearings, contributing to smooth and consistent rotation.

These features help provide better control during turning, provided that the machine is operated within its specified capacities.

For optimal performance, the lathe should be installed on a stable, rigid and properly secured workbench or support.

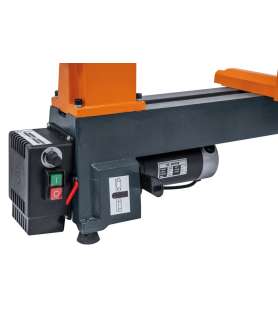

750W Single-Phase Motor for Woodturning Applications

The M4P WL480VD wood lathe is equipped with a 750W motor rated for continuous S1 operation.

It operates on a 230V single-phase electrical supply, making it suitable for appropriately equipped domestic workshops.

This motor provides the power required for many typical hobby woodturning applications.

It can be used to shape cylindrical components, produce decorative profiles and turn wooden workpieces within the machine's capacity.

The motor load must always be considered in relation to the workpiece diameter, cutting depth and condition of the cutting tools.

For roughing operations, several light passes are generally preferable to removing excessive amounts of material in a single cut.

Selecting an appropriate spindle speed and using properly sharpened turning tools also help maintain smooth operation.

The 750W M4P WL480VD offers a practical balance between compact dimensions and useful turning capabilities.

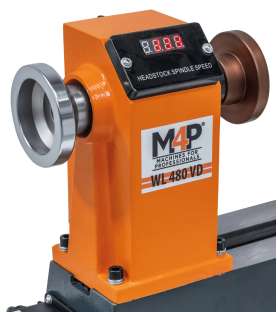

Variable Speed from 300 to 3700 rpm with Digital Display

One of the main advantages of the M4P WL480VD is its adjustable spindle speed.

The machine offers two speed ranges:

• Low range (L): 300 to 1200 rpm

• High range (H): 1000 to 3700 rpm

Within each range, the spindle speed can be adjusted progressively.

This allows the operator to adapt the machine to different turning operations.

Larger or unbalanced workpieces generally require lower speeds.

Once a workpiece has been properly rounded and balanced, a higher speed may be suitable for certain finishing operations.

The correct speed must always be selected according to the diameter, weight, shape, balance and secure mounting of the workpiece.

The digital spindle speed display provides a convenient way to monitor the operating speed.

It also makes it easier to reproduce suitable settings for similar projects.

460 mm Distance Between Centres for Versatile Woodturning

The M4P WL480VD wood lathe offers a distance between centres of 460 mm.

This measurement indicates the maximum available distance between the headstock and tailstock centres in the standard configuration.

It allows a variety of moderately sized wooden components to be turned.

Typical applications include tool handles, small furniture legs, decorative spindles and other cylindrical workpieces.

Turning between centres is particularly useful for shaping components along their length.

The workpiece is supported between a drive centre in the headstock and a live centre in the tailstock.

The tailstock can be moved along the bed to accommodate different workpiece lengths.

Its quick-locking mechanism makes positioning and adjustment easier.

Correct workpiece mounting and secure locking of the tailstock are essential for safe operation.

Optional Bed Extension Increases Capacity to 1020 mm

For users wishing to turn longer wooden components, the M4P WL480VD can be fitted with an optional bed extension.

This accessory increases the distance between centres from 460 mm to 1020 mm.

It considerably extends the range of possible turning projects.

The additional capacity may be useful for longer furniture components, spindles, legs and other elongated wooden parts.

The bed extension makes the WL480VD an adaptable machine that can evolve with the user's requirements.

Important: the bed extension is optional and is not included in the standard machine package.

When turning longer workpieces, particular attention must be paid to workpiece support, balance and secure mounting.

Maximum Swing Over Bed of 310 mm

The M4P WL480VD provides a maximum swing over bed of 310 mm.

This allows workpieces with a relatively large diameter to be mounted for a lathe of this size.

The maximum swing over the tool rest is 240 mm.

These measurements represent different mechanical clearances and should both be considered when planning a turning project.

For bowls, plates and other faceplate-turning applications, an appropriate workholding accessory must be used.

The stated maximum swing does not mean that every workpiece of this diameter can be turned safely under all conditions.

The weight, shape, balance and quality of the wood must also be taken into account.

Large or irregular workpieces require particular care and an appropriately low starting speed.

M33 x 3.5 mm Spindle Thread for Woodturning Accessories

The M4P WL480VD wood lathe features an M33 x 3.5 mm spindle thread.

This thread size is widely used on European woodturning lathes.

It allows compatible accessories, such as certain woodturning chucks and faceplates, to be fitted.

A suitable woodturning chuck can expand the machine's capabilities by allowing different workpieces to be held for faceplate turning.

However, the exact compatibility of each accessory must be checked before installation.

The M33 x 3.5 mm thread alone does not guarantee compatibility with every chuck.

Other mounting requirements, dimensions and operating limits must also be considered.

The machine is supplied with an 80 mm faceplate, suitable for certain faceplate-turning applications.

Woodturning chucks shown in some manufacturer photographs are optional accessories and are not included in the standard delivery.

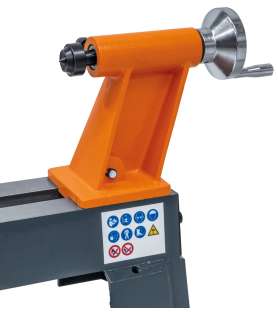

MT2 Tailstock with 55 mm Quill Travel

The M4P WL480VD tailstock features an MT2 Morse taper and a 55 mm quill travel.

This arrangement allows the tailstock centre to be positioned and adjusted when turning between centres.

The quill travel provides the movement required to secure the workpiece correctly.

The MT2 Morse taper is a commonly used standard for compatible woodturning accessories.

The tailstock also features a quick-locking system for convenient positioning along the bed.

This allows the operator to adjust the distance between centres according to the length of the workpiece.

The tailstock quill has a through-bore, which may be useful for certain specialised applications requiring axial access.

For consistent performance, the sliding surfaces should be kept clean and the locking mechanisms checked regularly.

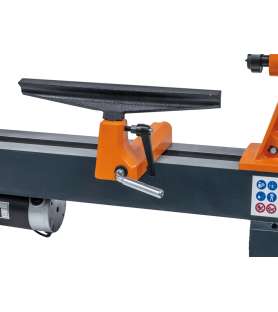

Adjustable Tool Rest for Accurate Woodturning

The M4P WL480VD tool rest provides support for woodturning gouges, chisels and other suitable hand tools.

Correct positioning is essential for controlled and safe turning.

The tool rest height and distance from the workpiece should be adjusted according to the operation being performed.

Its quick-locking mechanism makes repositioning easier.

The machine is supplied with 150 mm and 300 mm tool rests, allowing the operator to select a suitable support length for different projects.

During operation, the tool rest must be securely locked in position.

Before starting the lathe, the workpiece should be rotated manually to confirm that it clears the tool rest and other components.

Tool rest adjustments must only be made when the machine has completely stopped.

What Can You Make with the M4P WL480VD Wood Lathe?

The M4P WL480VD 750W wood lathe can be used for a wide range of woodturning projects.

Typical applications include decorative wooden objects, tool handles, candle holders, furniture components, cylindrical parts and other creative woodworking projects.

With suitable accessories, the machine can also be used for certain faceplate-turning operations.

Turning between centres is ideal for workpieces supported along their length.

Faceplate turning allows certain hollow or circular objects to be produced using an appropriate workholding system.

The quality of the finished work depends on several factors, including wood selection, tool sharpness, spindle speed and turning technique.

Beginners are advised to start with simple, relatively small and well-balanced workpieces.

As their skills improve, they can gradually move on to more advanced projects.

A Wood Lathe Designed for Hobbyists and Enthusiasts

The M4P WL480VD is primarily intended for hobbyists and woodturning enthusiasts who want a well-equipped and versatile machine.

Its cast iron construction, variable speed control and digital display make it an attractive option for learning and developing woodturning skills.

The compact design allows it to be installed in a home workshop without requiring the space of a large industrial lathe.

It can also be a suitable choice for users wishing to upgrade from a smaller entry-level wood lathe.

The optional bed extension provides additional flexibility for future projects.

However, this model belongs to a range mainly intended for hobby and non-intensive workshop applications.

For continuous heavy-duty professional use, a wood lathe specifically designed for intensive operation would be more appropriate.

Maintenance and Safety Recommendations

Regular maintenance helps preserve the performance and service life of the M4P WL480VD wood lathe.

Before each use, the operator should check that all accessories are correctly fitted and that the workpiece is securely mounted.

The spindle speed must be selected according to the workpiece diameter and balance.

Irregular or unbalanced workpieces should be started at a suitably low speed.

Woodturning tools should be kept properly sharpened to reduce cutting forces and improve the quality of the finish.

After use, wood chips and dust should be removed from the bed and accessible mechanisms.

Metal surfaces should be maintained according to the manufacturer's recommendations to help prevent corrosion.

The tailstock and tool rest locking systems should also be inspected regularly.

Unusual vibrations, abnormal noises or changes in spindle rotation should be investigated before continuing operation.

All cleaning, adjustment and maintenance operations must be performed with the machine switched off and disconnected from the electrical supply.

Why Choose the M4P WL480VD from Probois Machinoutils?

At Probois Machinoutils, we offer a selection of woodworking machines and accessories for hobbyists, enthusiasts and woodworking workshops.

The M4P WL480VD 750W wood lathe stands out for its robust cast iron construction, electronic variable speed control and digital speed display.

Its optional bed extension allows the distance between centres to be increased when longer turning projects are required.

The single-phase motor, M33 x 3.5 mm spindle thread and MT2 tailstock make this machine versatile for a wide range of woodturning applications.

With 460 mm between centres and a 310 mm maximum swing over bed, it provides useful capacity for many woodworking projects.

Discover the M4P WL480VD 750W wood lathe at Probois Machinoutils and equip your workshop with a compact, robust and versatile machine for your woodturning projects.

Technical specifications

Standard equipment

• 150 mm and 300 mm tool rests

• 80 mm faceplate

• Four-prong drive centre

• Revolving live centre

• Variable speed control

• Digital LED spindle speed display

• Service tools
