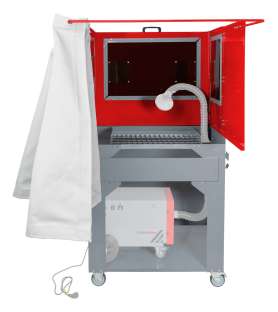

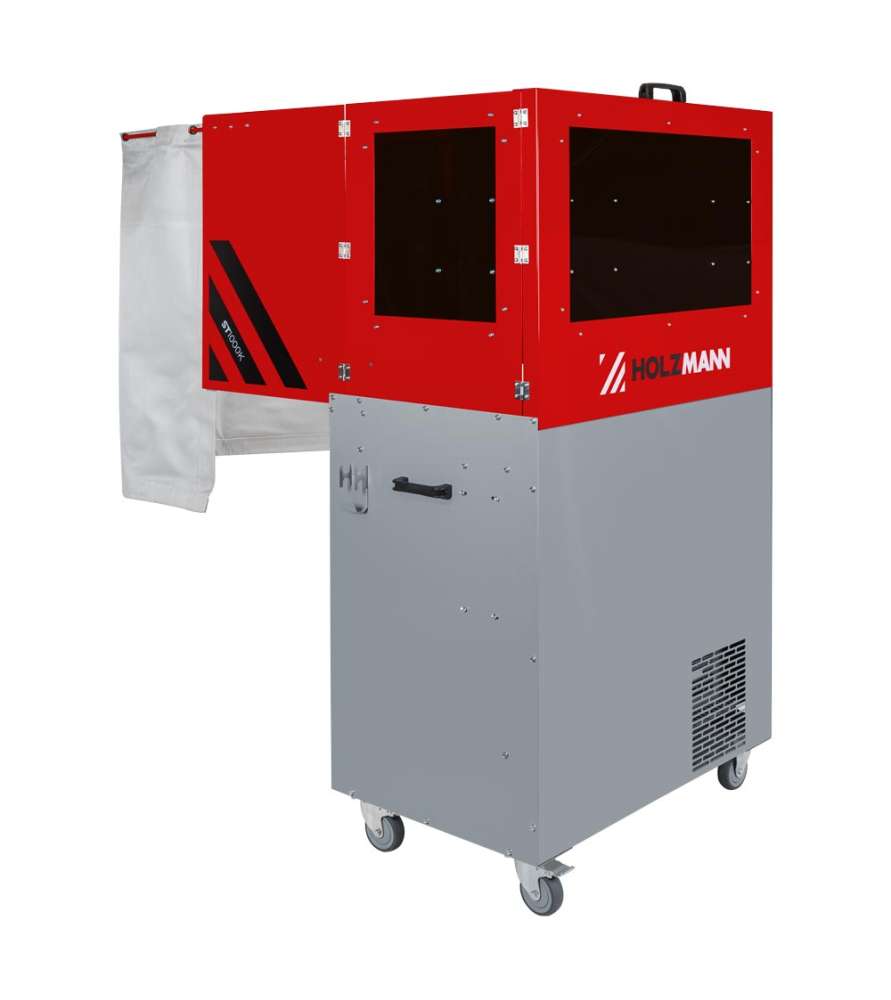

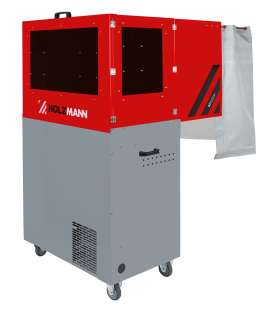

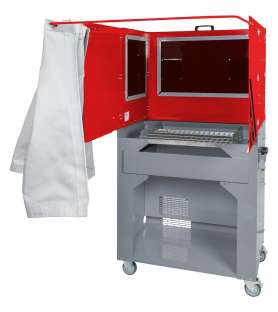

Holzmann ST1000K Welding Table with Cabin

The Holzmann ST1000K welding table with cabin is designed to create a compact, organised and mobile welding workstation within the workshop.

Unlike a conventional welding table, it incorporates an enclosed working area with a protective welding curtain, helping to separate the welding area from surrounding workstations.

Its castor-mounted design makes the complete workstation easy to move around the workshop, while the lower cabinet provides useful space for additional equipment.

The table can notably be combined with the optional Holzmann SRABS750 welding fume extractor, which can be housed in the lower section of the workstation.

A dedicated welding workstation with protective cabin

One of the main advantages of the Holzmann ST1000K is the structure surrounding the working area.

The cabin is equipped with a welding curtain designed to provide protection from the optical radiation generated by the welding arc.

This configuration is particularly useful in workshops with several workstations or where other operators are working nearby.

The ST1000K therefore provides a clearly defined individual welding area without requiring the installation of a large permanent welding booth.

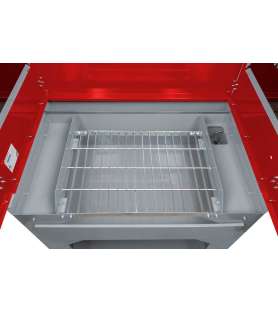

600 x 400 mm welding worktop

The Holzmann ST1000K features a 600 x 400 mm worktop.

This working surface is suitable for a wide range of welding, assembly and metalworking tasks while keeping the overall dimensions of the workstation relatively compact.

The worktop has a maximum load capacity of 60 kg.

It is therefore particularly suitable for general fabrication, maintenance and repair work involving small and medium-sized metal components.

Mobile welding workstation

The ST1000K is mounted on 4 heavy-duty castors measuring 100 x 35 mm.

This makes it easier to move the complete welding workstation when the workshop layout needs to be reorganised.

Two of the four castors are equipped with brakes.

Once the workstation has been positioned in the required location, the brakes allow it to be secured in place during use.

This mobility is particularly useful in multi-purpose workshops where the available working space needs to be adapted to different jobs.

Integrated lower cabinet

A lower cabinet is incorporated beneath the welding worktop.

This space makes use of the area underneath the table and helps keep the overall workstation compact and organised.

It can notably accommodate the optional Holzmann SRABS750 welding fume extractor.

Combining the welding table and fume extractor creates a compact workstation where the working surface, protective enclosure and welding fume extraction equipment can be grouped together.

Compatible with the Holzmann SRABS750 welding fume extractor

The ST1000K can be combined with the Holzmann SRABS750 welding fume extractor.

The extractor can be installed in the lower section of the workstation, helping to reduce clutter around the welding area.

Its extraction hose can then be positioned close to the point where welding fumes are generated.

This combination provides a practical workstation incorporating:

• a dedicated welding work surface;

• a protective cabin;

• a welding curtain;

• optional local welding fume extraction;

• a mobile structure on castors.

Suitable for workshops with multiple workstations

The cabin and welding curtain make the ST1000K particularly useful in workshops where several people are working at the same time.

The curtain helps separate the welding area and provides protection for people working nearby from the optical radiation generated by the welding arc.

The table can be used in environments such as:

• metalworking workshops;

• fabrication workshops;

• maintenance departments;

• repair workshops;

• garages;

• technical training centres;

• workshops with several welding stations.

Compact workshop design

Despite its protective cabin, the Holzmann ST1000K maintains relatively compact overall dimensions.

The complete workstation measures 1006 x 612 x 1728 mm.

It therefore allows an individual welding station to be created without occupying the space required by a large permanent welding booth.

Its compact footprint also makes it suitable for workshops where available floor space needs to be used efficiently.

Designed to organise the welding area

The ST1000K brings several functions together in a single workstation.

The workpiece is positioned on the central welding table, while the surrounding structure and protective curtain help define the welding area.

The lower section provides space for additional equipment, including the optional welding fume extractor.

This configuration helps create a more organised welding station and reduces the need to position several separate pieces of equipment around the operator.

Suitable for different welding processes

The ST1000K can be used to create a dedicated working area for various welding operations.

It can therefore complement workshops equipped for MIG/MAG, MMA or TIG welding, depending on the equipment and application.

The table itself remains independent of the welding machine used, making it suitable for different workshop configurations.

Technical specifications of the Holzmann ST1000K

Main advantages of the Holzmann ST1000K

The Holzmann ST1000K welding table with cabin combines several useful features in one compact workstation:

• 600 x 400 mm welding worktop;

• maximum load capacity of 60 kg;

• protective cabin surrounding the welding area;

• protective welding curtain;

• mobile design with 4 castors;

• 2 castors with brakes;

• integrated lower cabinet;

• suitable for installation of the Holzmann SRABS750 welding fume extractor;

• compact design for professional workshops.

A compact and mobile welding workstation

The Holzmann ST1000K welding table with cabin is an excellent solution for creating an individual welding area in workshops where space, mobility and protection are important.

Its 600 x 400 mm worktop, protective welding curtain and mobile castor-mounted design provide a practical workstation for welding, fabrication, maintenance and repair operations.

The possibility of integrating the optional Holzmann SRABS750 welding fume extractor into the lower cabinet also makes it possible to combine the welding table, protective enclosure and local fume extraction within one compact workstation.
