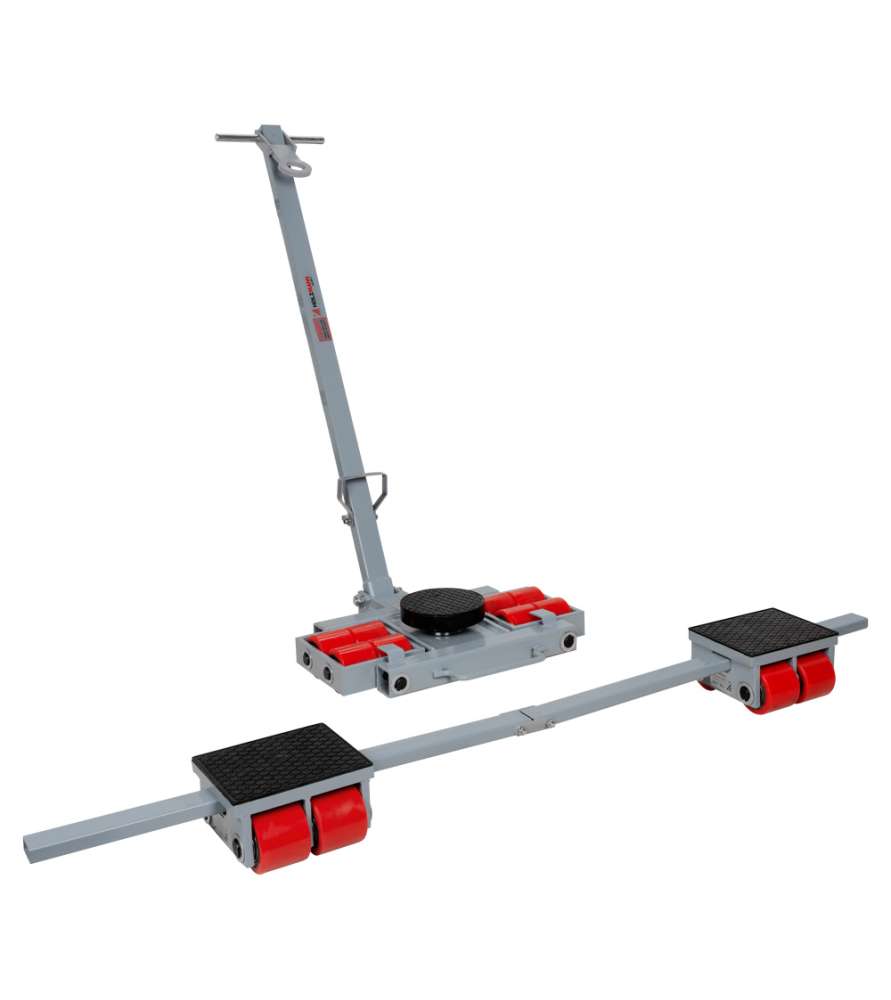

Holzmann SLRF4 industrial transport trolley for heavy machinery and pallets

The Holzmann SLRF4 Cargo Pallet Trolley is specifically designed for moving heavy loads in workshops, industrial environments, woodworking shops, mechanical workshops and logistics areas.

This professional moving system allows easy transportation of:

• woodworking machines;
• combination woodworking machines;
• planer thicknessers;
• sliding table saws;
• machine tools;
• heavy pallets;
• metal cabinets;
• and bulky industrial equipment.

Thanks to its robust construction and heavy-duty wheels, the SLRF4 enables smooth and safe movement of heavy loads while maintaining excellent stability.

An ideal solution for moving heavy machinery

The Holzmann SLRF4 is particularly appreciated for:

• machine installation;
• workshop reorganization;
• loading and unloading operations;
• maintenance work;
• and industrial relocation.

The system includes:

• one steering trolley with turntable;
• one support trolley;
• one steering handle;
• and one adjustable connecting rod.

Robust construction and excellent stability

The SLRF4 is designed to support heavy loads on flat and resistant surfaces.

The wheels ensure good load distribution while greatly reducing the effort required for movement.

The turntable allows easier maneuvering and precise positioning of heavy equipment.

Holzmann SLRF4 technical specifications

• Maximum load:
  • trolley with turntable: 4 tons
  • trolley with support surface: 4 tons (2 + 2 tons)
• Length of steering rod: 800 mm
• Length of connecting rod: 300 to 1000 mm
• Turntable diameter: Ø150 mm
• Chassis support surface:
  • 140 x 120 mm each
• Number of wheels:
  • chassis with turntable: 4 wheels
  • chassis with support surface: 2 wheels
• Net weight: 27.80 kg

Recommended applications

The Holzmann SLRF4 is ideal for:

• woodworking workshops;
• industrial maintenance;
• moving machine tools;
• heavy load handling;
• mechanical workshops;
• professional machine installation;
• and heavy pallet transportation.

Important recommendations

• Use only on flat, solid and stable floors.
• Ensure proper load balancing before moving.
• Move heavy loads slowly and carefully.
• Never exceed the maximum permitted load.
• Use suitable lifting equipment to position the trolleys.

Probois Machinoutils: specialist in workshop machinery and handling equipment

At Probois Machinoutils, we select robust and reliable equipment for professional and semi-professional workshops.

The Holzmann SLRF4 is a compact and efficient solution for safely moving heavy machinery and industrial equipment.

How to use it ?

1. Slightly lift the machine

First, the machine must be lifted slightly using:

• a jack;
• a pallet truck;
• levers;
• or another suitable lifting device.

The goal is simply to create enough clearance to place the trolleys underneath.

2. Position the trolleys

• The steering trolley is generally positioned at the front.
• The support trolley or trolleys are positioned at the rear.

The load then rests entirely on the rollers.

3. Move the machine

Thanks to the steering handle:

• the front trolley pivots;
• the machine can turn;
• and movement becomes relatively smooth despite the very heavy weight.

The multiple rollers distribute the load across the floor and greatly reduce the effort required.

Important information

This type of system is designed for:

• flat floors;
• smooth concrete surfaces;
• workshops;
• warehouses;
• industrial environments.

It is not suitable for:

• uneven ground;
• gravel;
• steep slopes;
• or rough outdoor surfaces.

Why is it widely used for woodworking machinery?

In woodworking workshops, machines often weigh:

• 300 kg;
• 500 kg;
• or sometimes more than one ton.

The SLRF8 allows users to:

• install a machine;
• reorganize a workshop;
• move a planer thicknesser;
• relocate a sliding table saw;
• or load machinery without heavy handling equipment.
