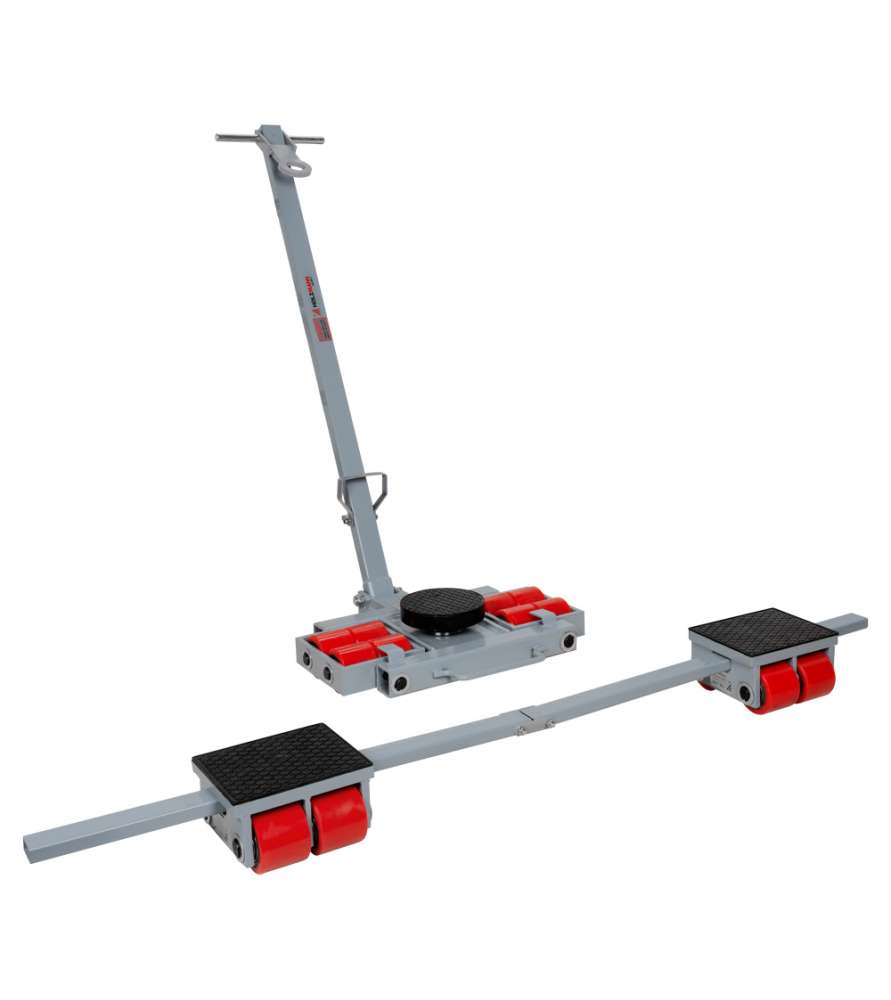

Holzmann SLRF8 industrial transport trolley for heavy machinery and pallets

The Holzmann SLRF8 Cargo Pallet Trolley is specifically designed for moving heavy loads in workshops, industry, woodworking shops, maintenance environments and logistics applications.

This professional moving system allows easy transport of:

• woodworking machines;
• combination woodworking machines;
• planer thicknessers;
• sliding table saws;
• industrial machinery;
• heavy pallets;
• metal cabinets;
• and heavy workshop equipment.

Thanks to its robust construction and heavy-duty rollers, the SLRF8 enables smooth transportation of heavy loads while maintaining excellent stability.

An ideal solution for moving heavy machinery

The Holzmann SLRF8 is especially appreciated in woodworking and industrial workshops for moving heavy machines without requiring a forklift.

It allows:

• machine installation;
• workshop reorganization;
• loading and unloading operations;
• machine maintenance;
• and industrial relocation work.

The system includes:

• one steering trolley with rotating platform;
• one support trolley;
• one steering handle;
• and one adjustable connecting bar.

Heavy-duty construction and excellent stability

The SLRF8 is designed to support very heavy loads on flat and resistant surfaces.

Its rollers ensure good weight distribution while reducing moving effort.

The rotating platform allows easier maneuvering and precise positioning of heavy equipment.

Holzmann SLRF8 technical specifications

• Maximum capacity:
  • steering trolley with turntable: 8 tons
  • support trolley: 8 tons (4 + 4 tons)
• Steering handle length: 1100 mm
• Adjustable connecting bar length: 400 to 1300 mm
• Turntable diameter: Ø160 mm
• Support surface dimensions:
  • 200 x 160 mm per support
• Number of wheels:
  • steering trolley: 8 wheels
  • support trolley: 4 wheels
• Net weight: 65.8 kg

Recommended applications

The Holzmann SLRF8 is ideal for:

• woodworking workshops;
• industrial maintenance;
• machine tool transportation;
• heavy load handling;
• mechanical workshops;
• industrial moving operations;
• installation of professional machinery.

Important recommendations

• Use only on flat, solid and stable floors.
• Ensure proper load balancing before moving.
• Move loads slowly and carefully.
• Never exceed the maximum load capacity.
• Use appropriate lifting equipment when positioning the trolleys.

Probois Machinoutils: workshop machinery and handling specialist

At Probois Machinoutils, we select reliable and durable equipment for professional and semi-professional workshops.

The Holzmann SLRF8 is an efficient solution for safely and easily moving heavy machinery within workshops and industrial environments.

How to use it ?

1. Slightly lift the machine

First, the machine must be lifted slightly using:

• a jack;
• a pallet truck;
• levers;
• or another suitable lifting device.

The goal is simply to create enough clearance to place the trolleys underneath.

2. Position the trolleys

• The steering trolley is generally positioned at the front.
• The support trolley or trolleys are positioned at the rear.

The load then rests entirely on the rollers.

3. Move the machine

Thanks to the steering handle:

• the front trolley pivots;
• the machine can turn;
• and movement becomes relatively smooth despite the very heavy weight.

The multiple rollers distribute the load across the floor and greatly reduce the effort required.

Important information

This type of system is designed for:

• flat floors;
• smooth concrete surfaces;
• workshops;
• warehouses;
• industrial environments.

It is not suitable for:

• uneven ground;
• gravel;
• steep slopes;
• or rough outdoor surfaces.

Why is it widely used for woodworking machinery?

In woodworking workshops, machines often weigh:

• 300 kg;
• 500 kg;
• or sometimes more than one ton.

The SLRF8 allows users to:

• install a machine;
• reorganize a workshop;
• move a planer thicknesser;
• relocate a sliding table saw;
• or load machinery without heavy handling equipment.
