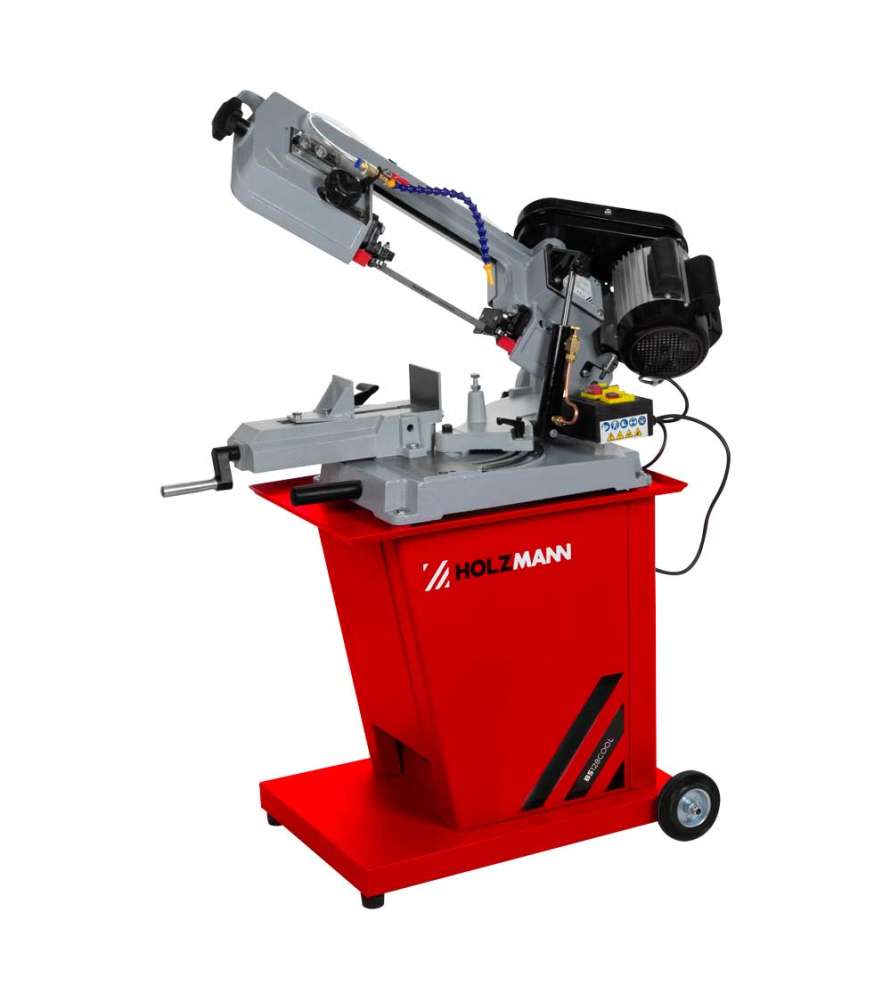

The Holzmann BS128COOL metal band saw is designed to provide a reliable and precise solution for metal cutting in workshop environments. Compact yet robust, it allows efficient work on a wide range of materials while ensuring consistent cutting quality.

Its rigid construction reduces vibrations and improves cutting accuracy, even on thicker workpieces. The adjustable saw head allows precise angle cuts, making the machine highly versatile for various metalworking applications.

One of the key advantages of this model is its integrated cooling system, which continuously lubricates the blade and workpiece during cutting. This reduces heat build-up, improves blade lifespan, and ensures cleaner and more consistent results.

The saw features a controlled descent system with hydraulic regulation, offering optimal cutting control and increased user comfort. Combined with multiple blade speeds, it easily adapts to different materials and cutting requirements.

⚙️ Technical Specifications

🔌 Motor Data

• Power supply: 230 V / 50 Hz
• Motor power (S1): 550 W

📐 Dimensions and General Data

• Machine dimensions: 1000 x 520 x 1100 mm
• Mitre range: -45° to +55°

✂️ Cutting Capacity

• Round cut at 90°: Ø 125 mm
• Round cut at 45°: Ø 95 mm
• Round cut at 60°: Ø 50 mm
• Rectangular cut at 90°: 100 x 150 mm
• Rectangular cut at 45°: 95 x 76 mm
• Rectangular cut at 60°: 50 x 56 mm

🔄 Blade and Speeds

• Blade size: 1638 x 13 x 0.6 mm
• Cutting speeds: 23 / 34 / 54 m/min
• Flywheel diameter: 190 mm

💧 Cooling System

• Cooling system: Yes (lubrication circuit)
• Tank capacity: approx. 10 L
• Pump power: approx. 20 W

🔊 Noise Level

• Sound level: approx. 76 dB

⚖️ Weight

• Net weight: 83 kg
• Gross weight: 88 kg

🎯 Features and Benefits

• Integrated cooling system for extended blade life
• Adjustable hydraulic feed for controlled cutting
• Quick-clamping vice with workpiece stop
• 3 cutting speeds for different materials
• Robust cast construction for improved stability
• Mobile base with wheels for easy movement
• Automatic shut-off at end of cut

📦 Scope of Delivery

• HSS saw blade
• Cooling system
• Workpiece stop
• Stand / base
• Automatic shut-off system

🔧 Why Choose This Machine?

The Holzmann BS128COOL is an excellent choice for workshops looking for a reliable, precise, and versatile metal cutting solution. It offers a great balance between performance, compact design, and ease of use, while including features typically found on higher-end machines.
