Holzmann BS450TURN metal band saw - 400V

3,695.00 € Tax included

Including €2.80 for ecotax

Reference: HBS450TURN

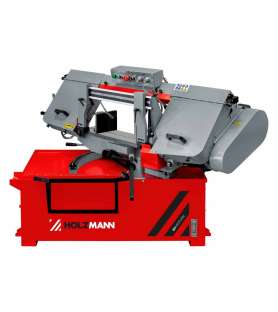

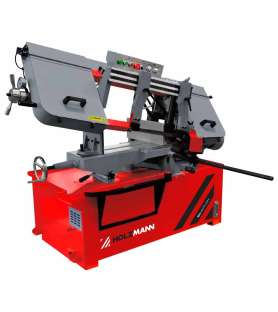

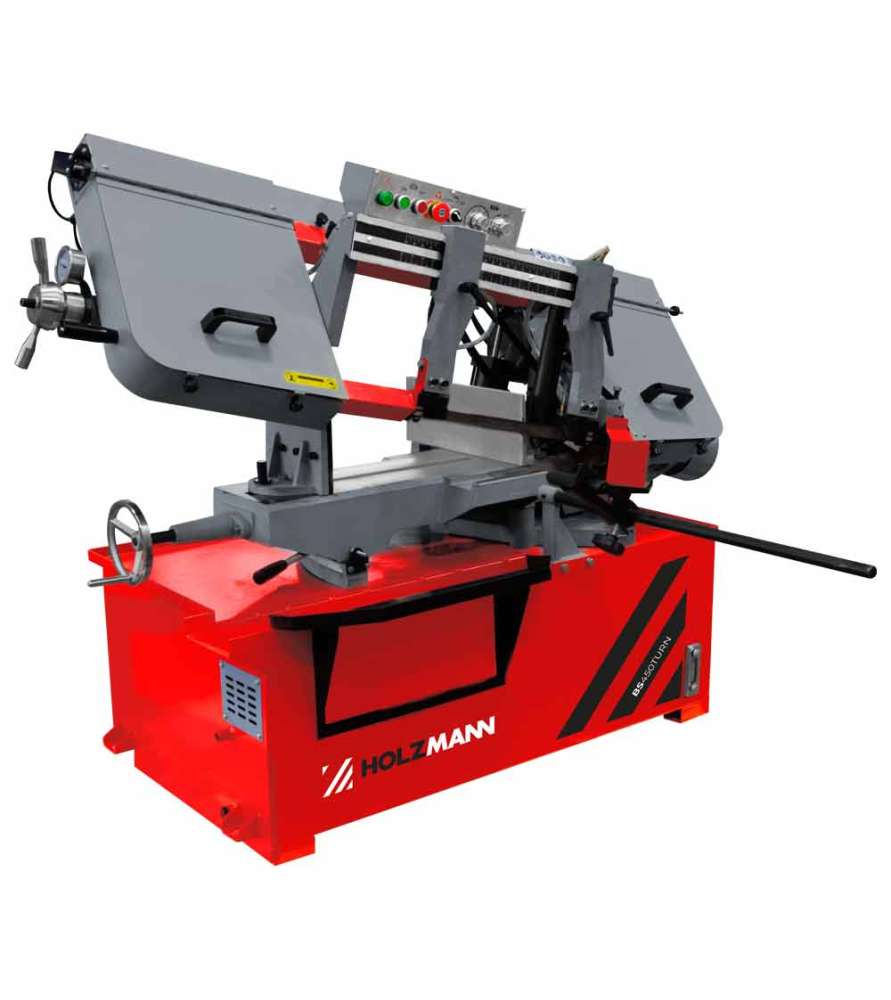

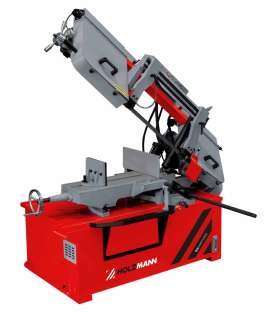

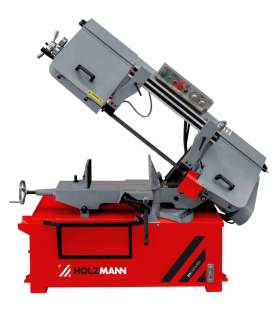

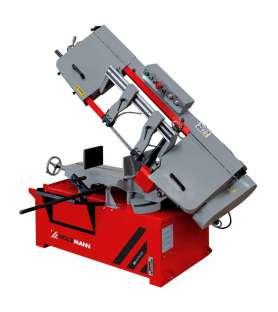

The HOLZMANN metal band saw BS450TURN in massive design with powerful motor with belt drive. 4 saw band speeds are adjustable by belt change (25|40|51|71 m/min). Large cutting capacity of 385 x 254 mm possible. Swivel range of saw arm 0 - 45°

Quantity

Advantages of the Holzmann BS450TURN - 400V metal band saw :

  • precise metal band saw in heavy-duty design
  • cutting angle adjustment:L: 0-45°
  • after completing the cut automatic switch-off by means of a limit switch
  • robust vice (height surface to the floor = 644 mm)
  • hydraulic cylinder for continuously adjustable lowering speed
  • manometer for indicating the correct saw blade tension

The Holzmann BS450TURN - 400V metal band saw :

  • Bi-metal saw blade (M42) 3300 x 27 x 0.9mm (TPI 4/6)

Technical specifications of the Holzmann BS450TURN - 400V metal band saw :

  • motor power s1 : 2200 W
  • voltage : 400 V / 50 Hz
  • total dimensions : 1735 x 1350 x 1090(1700) mm
  • cutting performance round Ø 90° : 254 mm
  • cutting performance round Ø 45° : 254 mm
  • cutting performance lxh 90° : 380 x 254 mm
  • cutting performance lxh 45° : 205 x 254 mm
  • cutting performance square 90° : 254 mm
  • sound power level : 89 dB(A)
  • sound pressure level : 74,3 dB(A)
  • gross weight : 396 kg
  • net weight : 332 kg
