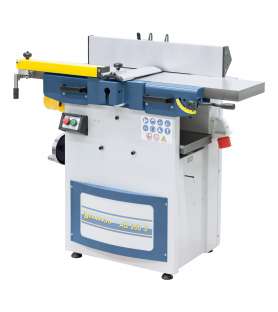

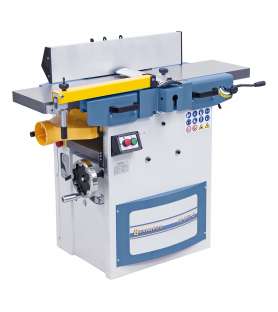

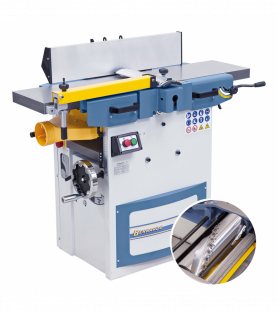

General description of the Bernardo AD260S planer jointer with helical shaft:

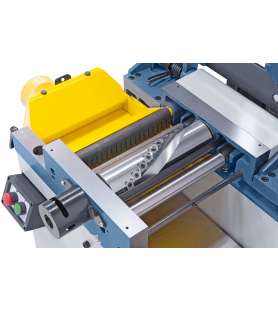

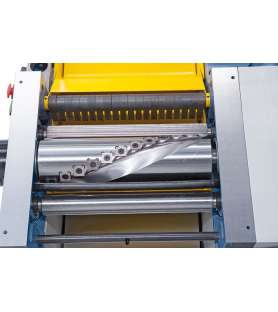

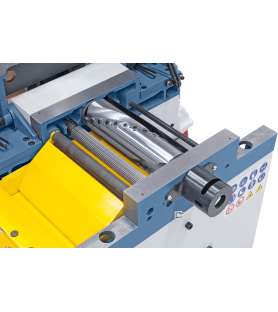

• Reduced noise stress (by about 50%) thanks to standard helical knife planer shaft and up to 20 times longer knife life (thanks to four-times reusable carbide reversible inserts)

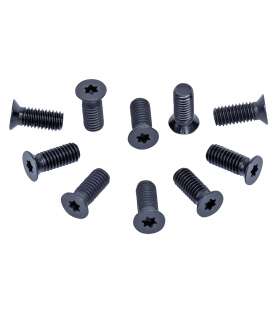

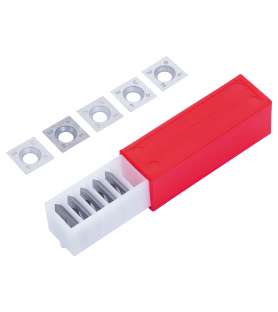

• Advantage of reversible carbide inserts: In the event of damage, the individual knives can be replaced or rotated

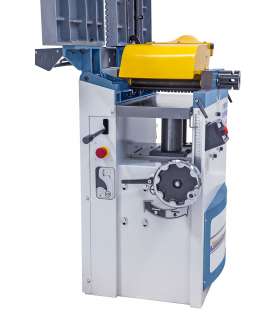

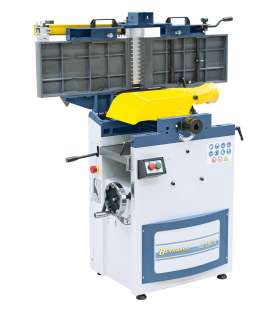

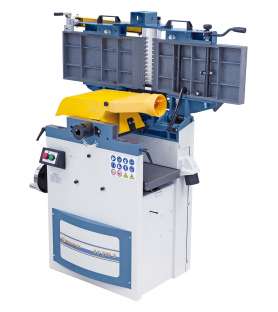

• Planing tables fold down at the rear of the machine, allowing space-saving installation
• Carbide knives guarantee crack-free planing results and top-quality surfaces for all types of wood

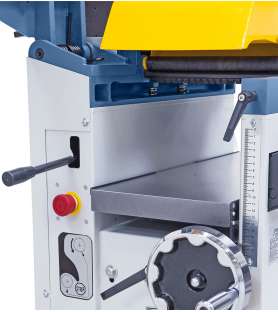

• Simultaneous lifting of the planing tables for maximum ease of use
• Table feed can be deactivated for planing

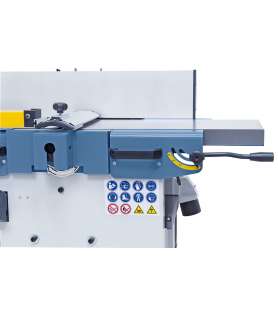

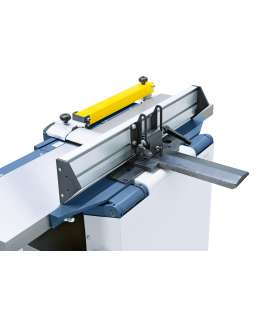

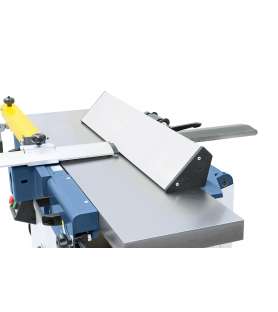

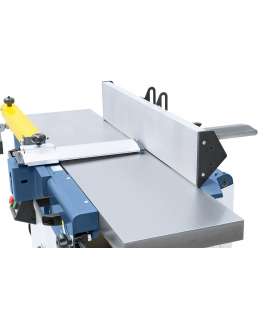

• Anodized aluminum guide, tilting from 90° to 45°
• Planer table on central column and support for precise planing
• Numerous protective devices: on/off switch with undervoltage coil, CE-compliant shaft protector, limit switch against accidental starting

Technical characteristics of the Bernardo AD260S planer jointer with helical shaft:

jointer

• Cutting width: 250mm
• Table length: 1090 mm
• Table height: 835 mm
• Shaft speed: 4000 rpm
• Carbide reversible inserts: 24
• Shaft diameter: 75mm
• Guide: 715 x 130mm
• Tilting guide: 90° to 45°
• Maximum removal per pass: 3 mm

Planer

• Table length: 600 mm
• Planer width: 250 mm
• Planing height, min/max: 5 - 185 mm
• Removal per pass max: 2.5 mm
• Feed rate: 4.8 m/min
• Ø suction nozzle: 100 mm
• Continuous power S1 100%: 2.0 kW (2.7 hp)
• Power S6 40%: 2.8 kW (3.8 hp)
• Voltage: 230V
• Dimensions (LxWxH): 1150 x 800 x 1000 mm
• Weight (approx.): 173 kg

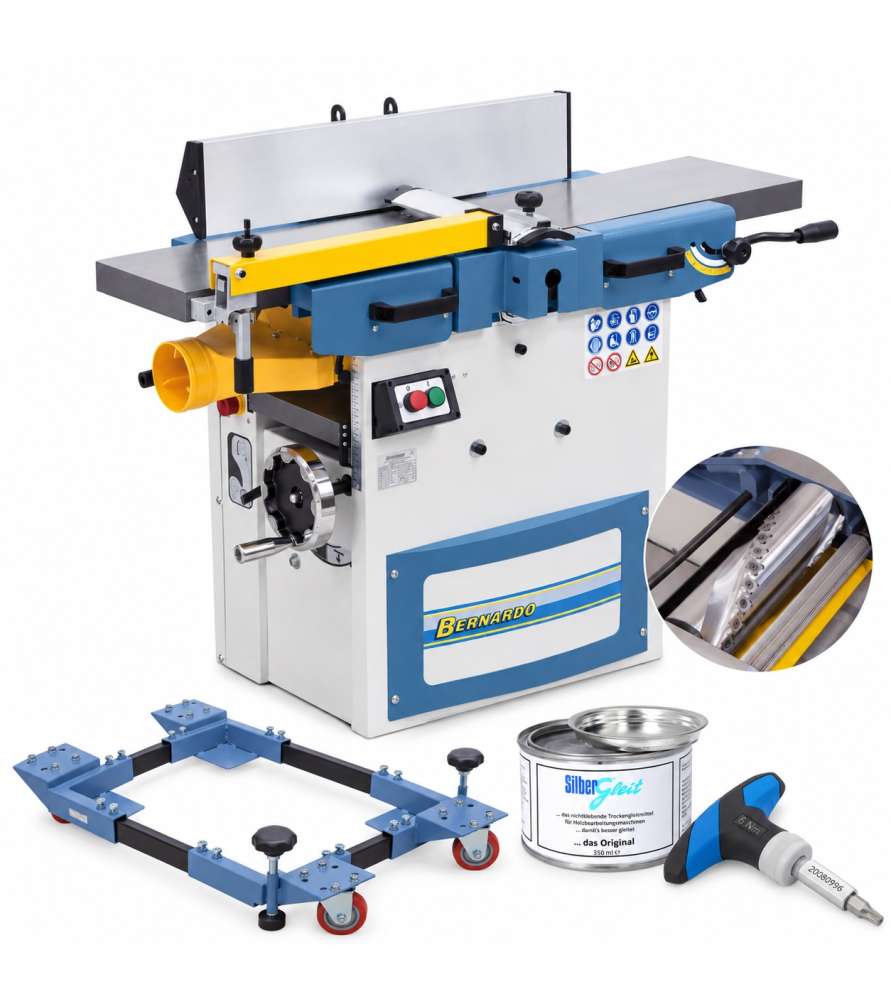

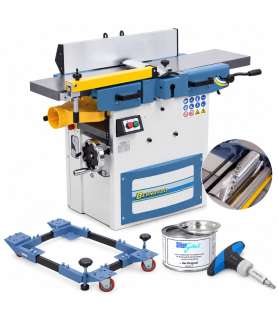

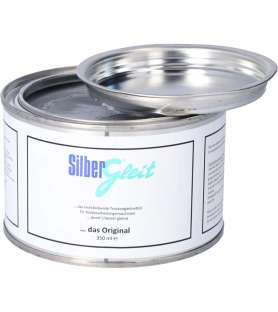

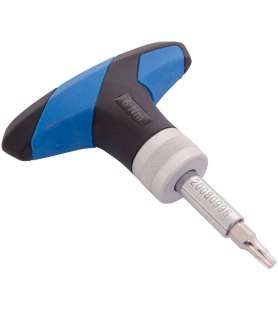

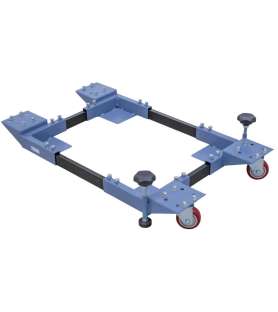

+ SPECIAL OFFER including the UFW300 mobile base, a 350 ml tin of wood sliding lubricant and a torque wrench!
