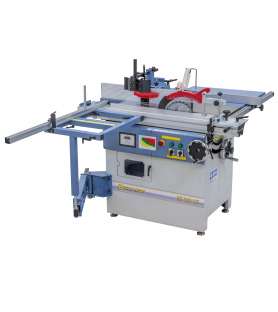

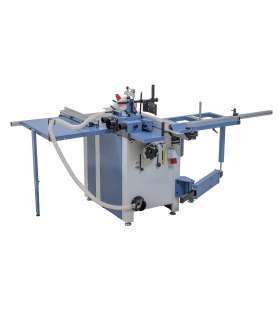

Advantages of the circular saw & spindle moulder Bernardo FK250ST - 400V :

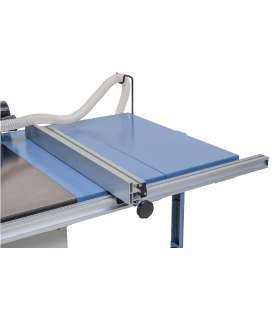

• Aluminium fence with stop mountable at front or rear of square table
• Solid square table for sufficient support when processing large panels
• Amply sized, robust, grey cast-iron table eliminates vibrations

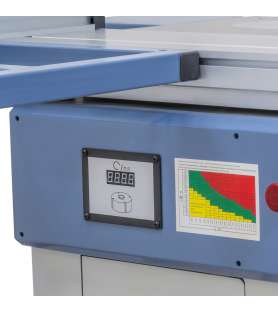

• Quick and easy readout of spindle speed on digital display
• Smooth running, precise sliding table features hardened, prism-shaped guides
• Practically positioned handwheels allow for convenient saw unit adjustment
• Moulder unit features 4 speeds for optimal adjustment to the workpiece

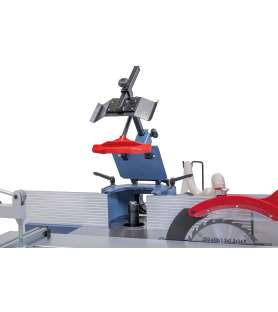

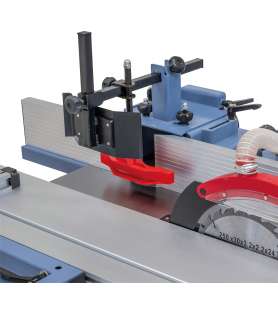

• Moulding fence equipped with fine adjustment on both sides
• Optimal price-to-performance ratio for amateurs and craftsmen
• Emergency stop button on front of machine increases safety
• Handwheel with scale allows for tilting of sawblade up to 45º

The circular saw & spindle moulder Bernardo FK250ST - 400V comes with :

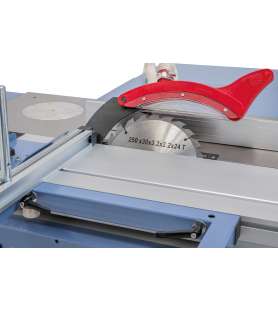

• Carbide sawblade 250 x 3,2 x 30 mm / 24T
• Protective cover with dust extraction outlet and tube
• End stop
• Table extension and enlargement
• Aluminium fence with stop

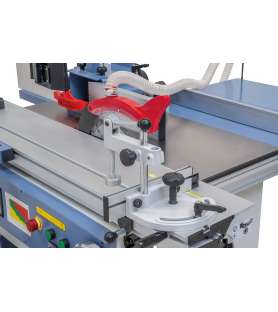

• Mitre fence and downholder

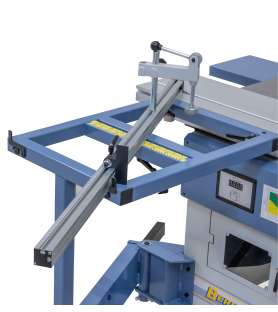

• Square table

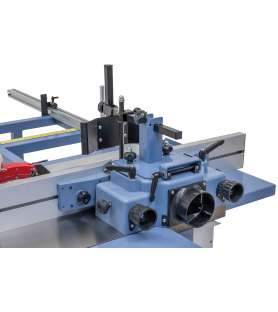

• Moulding fence
• Digital speed indication of moulding spindle
• Push stick
• Tools

Technical specifications of the circular saw & spindle moulder Bernardo FK250ST - 400V :

Circular saw

• Table size : 900 x 345 mm
• Table height : 865 mm
• Table extension : 2x 670 x 300
• Table enlargement : 235 x 210 mm
• Square table : 600 x 460 mm
• Sliding table : 1600 x 240 mm
• Cutting length : 1600 mm
• Max. sawblade diameter : 250 x 30 mm
• Max. cutting height 90° / 45° : 80 / 65 mm
• Cutting width on rip fence : 910 mm
• Speed main sawblade : 4750 rpm
• Dust extraction outlet : 100 mm
• Motor power output S1 100% : 2,2 kW (1,5 HP)
• Motor power input S6 40% : 3,0 kW (4,0 HP)

Spindle moulder

• Spindle diameter : 30 mm
• Height adjustment : 110 mm
• Table opening : 170 mm
• Working length of spindle : 90 mm
• Max. tool diameter :
• - at profiling : 150 mm
• - at tenoning : 150 mm
• Spindle speed : 1400 / 4000 / 6000 / 8000 rpm
• Motor power output S1 100% : 1,5 kW (2,0 HP)
• Motor power input S6 40% : 2,1 kW (2,8 HP)
• Voltage : 400 V
• Machine dimension (W x D x H) : 1400 x 2250 x 1150 mm
• Weight approx. : 202 kg
