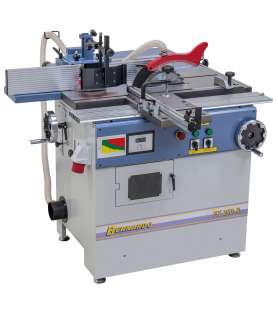

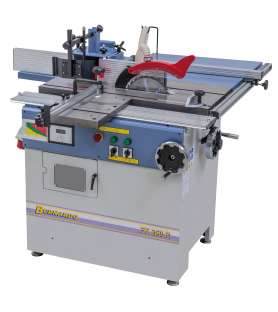

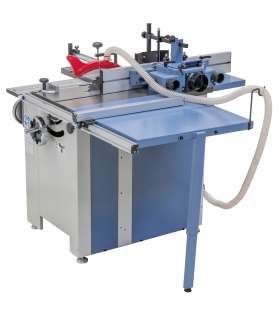

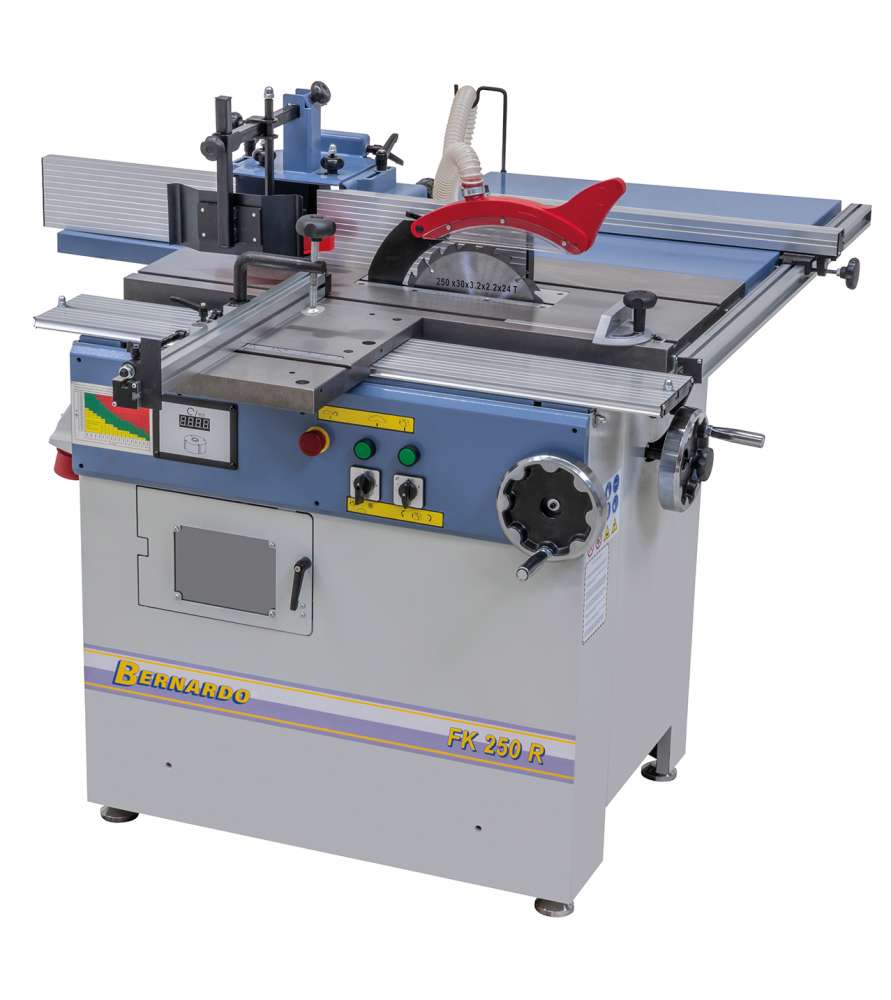

Advantages of the Circular saw & spindle moulder Bernardo FK250R - 400V :

• Optimal price-to-performance ratio for amateurs and craftsmen

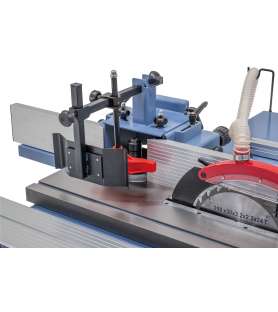

• Solid moulding fence with dust port of 100 mm

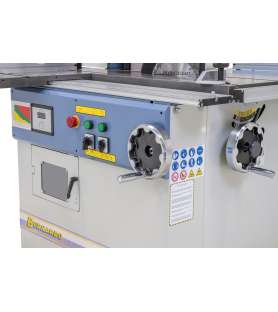

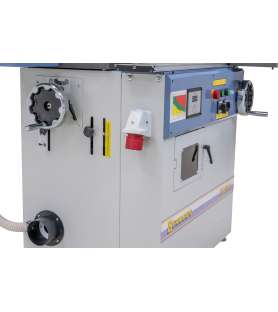

• Ergonomically arranged switches and control elements allow for high work comfort
• Solid, grey cast-iron table eliminates vibrations, constructed and polished with precision
• Practically positioned handwheels allow for convenient saw unit adjustment

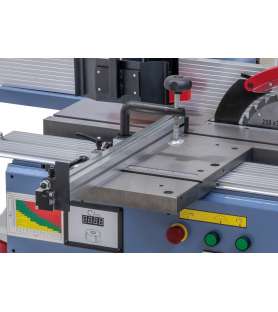

• Roller table with aluminium fence ensures high user comfort
• Emergency stop button on front of machine increases safety
• Most suitable for accurate processing of panels, planks, boards etc.

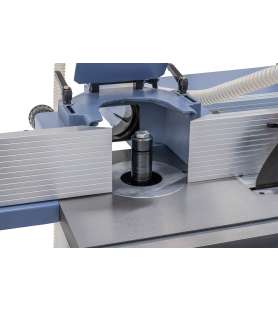

• Dynamically balanced moulder spindle ensures for vibration-free run

The Circular saw & spindle moulder Bernardo FK250R - 400V comes with :

• Carbide sawblade 250 x 3,2 x 30 mm / 24T

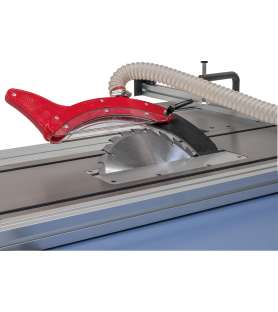

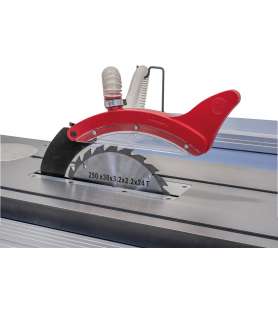

• Protective cover with dust extraction outlet
• Connector tube with Y-piece
• Mitre fence
• Downholder
• Table extension
• Aluminium fence with stop
• Roller table

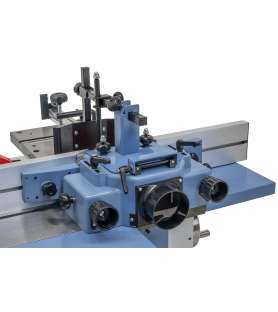

• Moulding fence
• Digital speed indication of moulding spindle
• Push stick
• Tools

Technical specifications of the Circular saw & spindle moulder Bernardo FK250R - 400V :

Circular saw

• Table size : 900 x 410 mm
• Table height : 865 mm
• Table enlargement : 2x 235 x 210 mm
• Table extension : 670 x 300 mm
• Roller table : 400 x 250 mm
• Cutting length : 710 mm
• Max. sawblade diameter : 250 x 30 mm
• Max. cutting height 90° / 45° : 80 / 60 mm
• Cutting width on rip fence : 820 mm
• Speed main sawblade : 4750 rpm
• Dust extraction outlet : 100 mm
• Motor power output S1 100% : 2,2 kW (1,5 HP)
• Motor power input S6 40% : 3,0 kW (4,0 HP)

Spindle moulder

• Spindle diameter : 30 mm
• Height adjustment : 110 mm
• Table opening : 170 mm
• Working length of spindle : 90 mm

Max. tool diameter

• - at profiling : 150 mm
• - at tenoning : 150 mm
• Spindle speed : 1400/4000/6000/8000 rpm
• Motor power output S1 100% : 1,5 kW (2,0 HP)
• Motor power input S6 40% : 2,1 kW (2,8 HP)
• Voltage : 400 V
• Machine dimension (W x D x H) : 1240 x 1620 x 1150 mm
• Weight approx. : 179 kg
