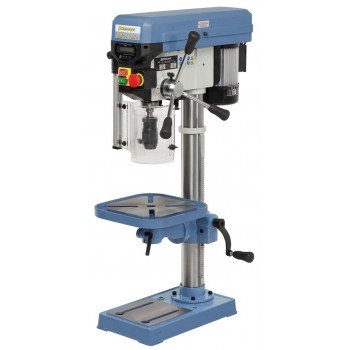

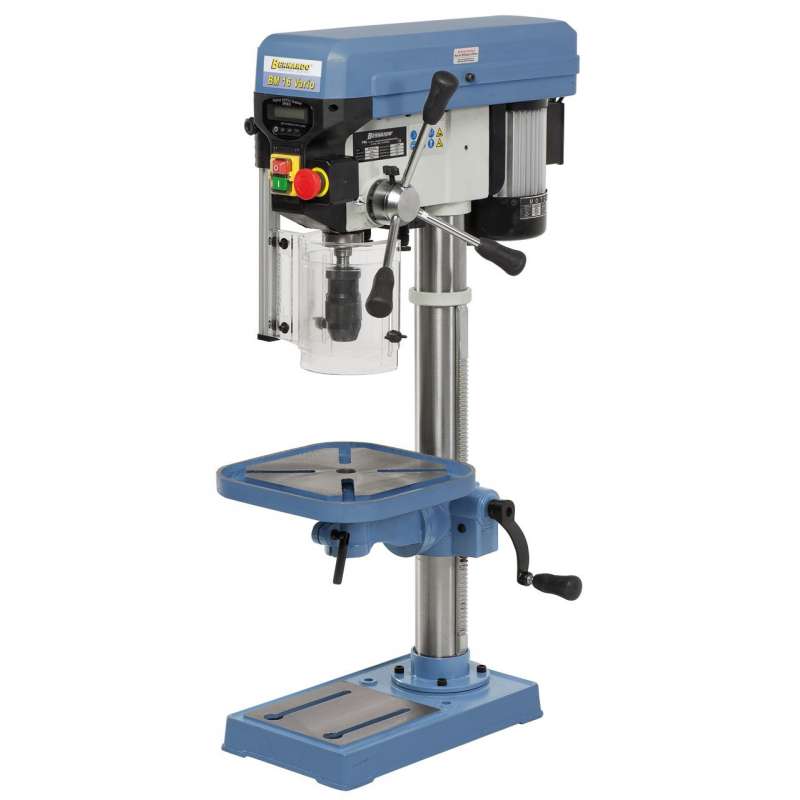

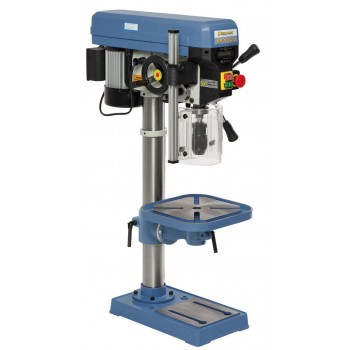

Bernardo BM16 Vario bench pillar drill

Bench drill Bernardo BM16 Vario

Reference: BBM16VARIO

507.50 €

Including €2.50 for ecotax

The Bench drill Bernardo BM16 Vario offers  high torque even at low speed due to its variable speed and a capacity of 16 mm in steel.

Tension du moteur
Quantity
Factory shipment, delivery within 10 to 12 days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The Bench drill Bernardo BM16 Vario offers high torque even at low speed due to its variable speed and a capacity of 16 mm in steel.

Most often This model is used by amateurs and purposes training.

General description :

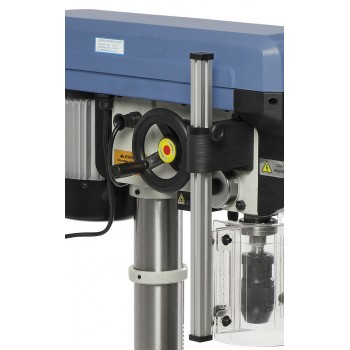

  • Display Digital for the race the spindle
  • Poulies cast grey ensuring execution smooth
  • Ball bearings high-quality guaranteeing a concentricity high ≤ 0.03 mm measured at the PIN
  • Large table drilling features t-slots diagonals.
  • Inclinations from the drilling table)± 45 °), the rack allows the height adjustment.
  • Engine high-performance According to the standard IP 54
  • Machine base with slots in T
  • Handles ensuring great comfort When using

Technical characteristics :

  • Drilling capacity steel 16 mm
  • Chuck : 1-16 mm / B 18
  • Morse taper : MT 2
  • The spindle speed, continuous : 310-1950 RPM
  • Distance axis column: 160 mm
  • Tilt table : - 45 ° à + 45 °
  • Distance PIN at the table Max. : 440 mm
  • PIN Distance to base : 630 mm
  • Race the spindle : 80 mm
  • Diameter of the column : 72 mm
  • Table size / size T-slot : 285 x 285 mm. 16 mm
  • Surface Working Base : 200 x 190 mm
  • Engine power exit S1 1 100%  : 0.55 kW / 230V or 400V to choose
  • Entry power engine S6 40% : 0.80 kW / 230V or 400V to choose
  • Dimension of the machine (L x W x H) : 400 x 590 x 980 mm
  • Weight approx. : 46 kg

Delivery with :

  • Chuck 1-16 mm / B 18
  • Chuck tree MT 2 / B 18
  • PIN Digital indication Racing

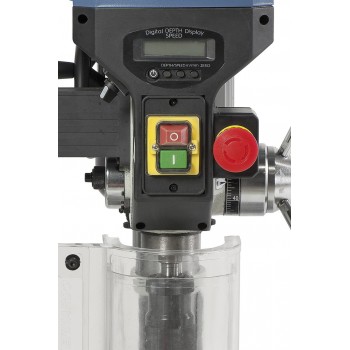

  • Digital display speed
  • Laser device line of the cross-
  • Nuts for T-slot

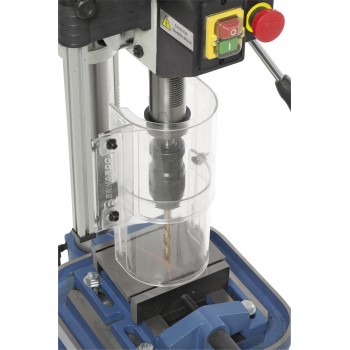

  • Protective cover height-adjustable
  • Switchseparate emergency stop
  • Tools
